As power systems evolve toward higher efficiency and flexibility, short-duration energy storage has become a cornerstone of modern energy infrastructure. While long-duration systems address extended energy gaps, short-duration solutions are designed for fast response, high power, and short discharge times, making them essential for grid stability and daily energy optimization.
This complete guide explains what short duration energy storage is, how it works, key technologies, and the difference between short-duration and long-duration energy storage.
What Is Short Duration Energy Storage?
Short duration energy storage refers to systems that store electricity and discharge it over a short time frame, typically ranging from a few minutes up to 4 hours. These systems are optimized for rapid charge and discharge cycles rather than long-term energy supply.
The defining factor is energy storage duration, which measures how long a system can deliver power at its rated capacity. When the battery storage duration is short but highly responsive, it falls into the category of short duration storage.
Why Short Duration Storage Is Important
Short duration energy storage plays a critical role in balancing supply and demand on a second-to-second or hour-to-hour basis. Its main benefits include:
- √ Frequency regulation and voltage support
- √ Peak shaving and demand charge reduction
- √ Renewable energy smoothing
- √ Fast backup power for critical loads
These functions make short duration battery storage indispensable for modern grids and commercial energy systems.
Key Short Duration Energy Storage Technologies

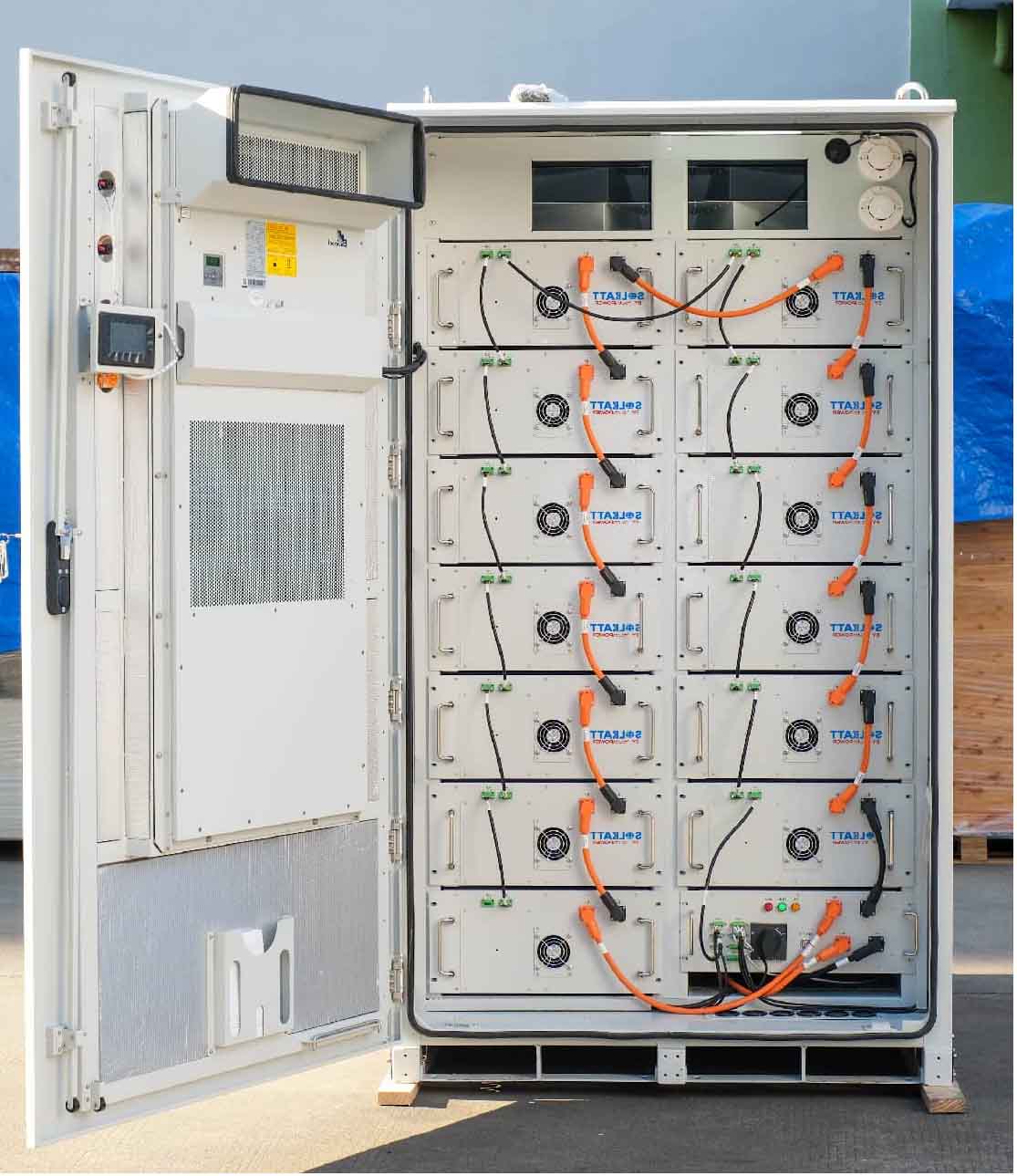

1. Short Duration Batteries
Lithium-ion batteries, especially lithium iron phosphate (LiFePO4) batteries, dominate the market for short duration batteries. They offer:
- ● High power density
- ● Fast response times
- ● High round-trip efficiency
- ● Long cycle life for frequent charging
These characteristics make batteries the most widely deployed energy storage solutions for short-duration applications.
2. Flywheels
Flywheel systems store kinetic energy and deliver extremely fast response, ideal for frequency regulation and power quality management.
3. Supercapacitors
Supercapacitors provide ultra-fast discharge for seconds or minutes, supporting specialized industrial and grid applications.
Battery Storage Duration Explained
Battery storage duration is a key design parameter. For short duration systems, typical configurations include:
- ♦ 15 minutes to 1 hour: Power quality and frequency regulation
- ♦ 1 to 2 hours: Peak shaving and renewable smoothing
- ♦ 2 to 4 hours: Distributed energy and grid support
Understanding energy storage duration helps developers select the right system size, chemistry, and application.

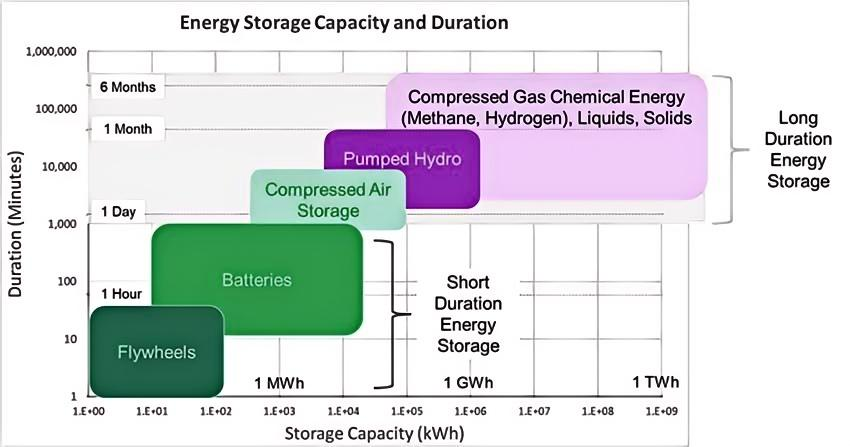

Difference Between Short Duration and Long Duration Energy Storage
The difference between short duration and long duration energy storage lies in purpose and performance:
| Comparison Factor | Short Duration Energy Storage | Long Duration Energy Storage |
| Typical Energy Storage Duration | Minutes to 4 hours | 8 hours to multiple days |
| Primary Purpose | Fast response, grid stability, peak shaving | Long-term energy shifting and supply reliability |
| Power vs. Energy Focus | High power output | High energy capacity |
| Response Time | Milliseconds to seconds | Seconds to minutes |
| Battery Storage Duration | Short discharge cycles | Extended discharge cycles |
| Common Technologies | Lithium-ion batteries, flywheels, supercapacitors | Long duration batteries, pumped hydro, thermal storage, hydrogen |
| Cycle Frequency | Multiple cycles per day | Fewer, deeper cycles |
| Renewable Energy Role | Smooths short-term solar and wind fluctuations | Covers long renewable generation gaps |
| Typical Applications | Frequency regulation, demand charge reduction, UPS | Grid backup, seasonal energy storage, off-grid power |
| Cost Structure | Lower upfront cost, power-driven | Higher upfront cost, energy-driven |
| Example Use Cases | Commercial peak shaving, data centers | Utility-scale grid resilience |
Both are complementary and often integrated together to create balanced, resilient energy storage solutions.

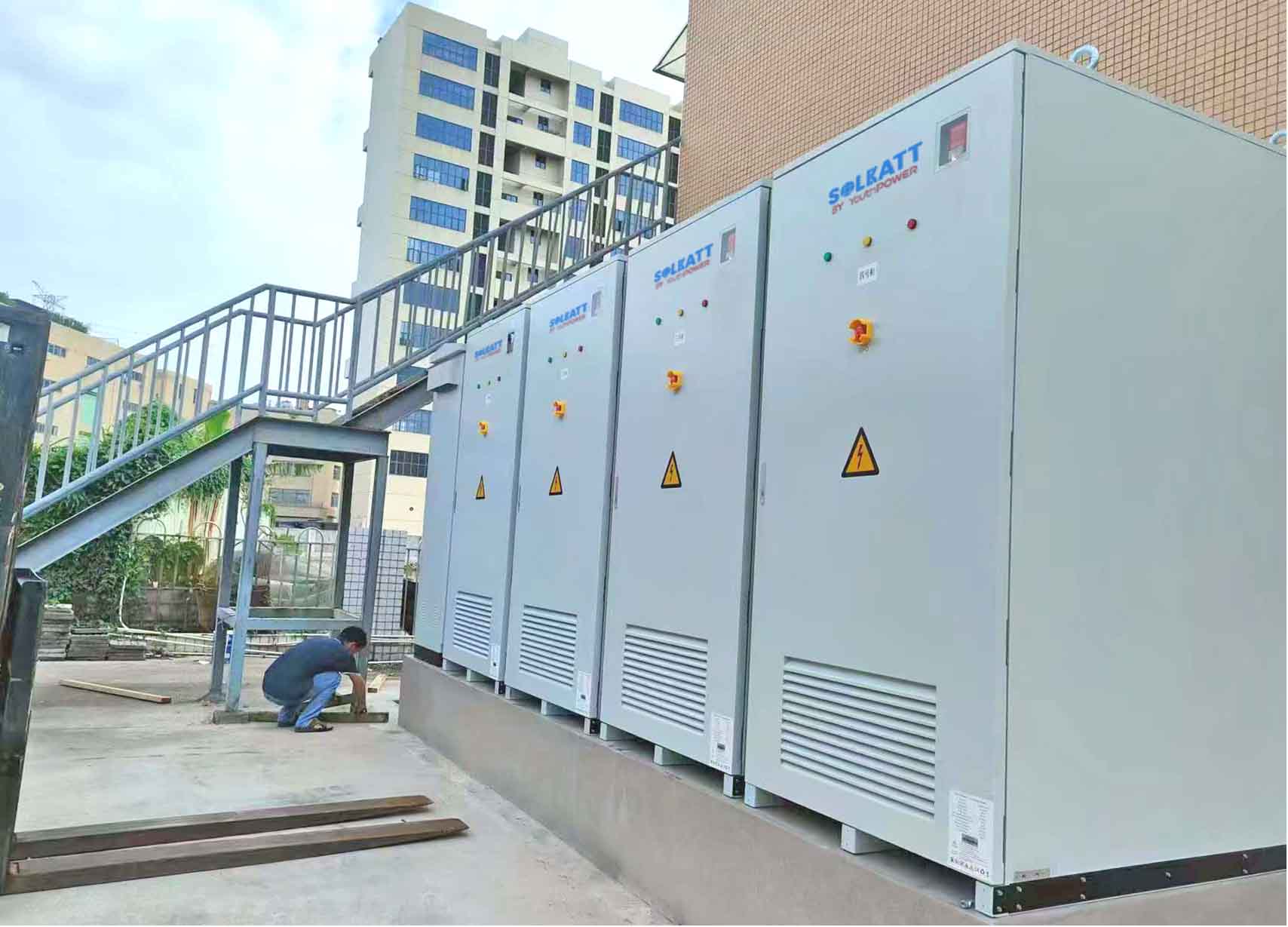

Applications of Short Duration Energy Storage
Short duration storage is widely used in:

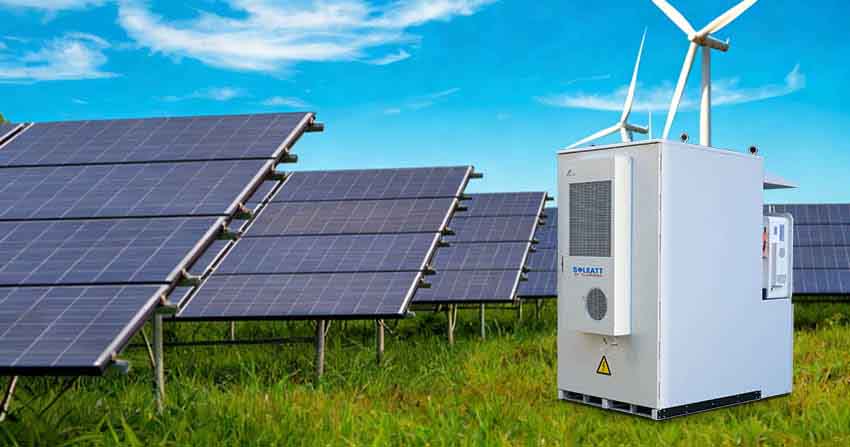

● Solar and wind power smoothing
● Commercial and industrial peak management
● Grid ancillary services
● Microgrids and distributed energy systems
● Data centers and critical infrastructure
Its flexibility and fast response make it ideal for dynamic energy environments.
FAQs About Short Duration Energy Storage
Q1. What is considered short duration energy storage?
A1: Systems with a discharge time of minutes up to 4 hours are generally classified as short duration energy storage.‘
Q2. Are short duration batteries suitable for renewable energy?
A2: Yes. Short duration battery storage is highly effective for smoothing solar and wind fluctuations and managing daily energy cycles.
Q3. How does battery storage duration affect system cost?
A3: Shorter battery storage duration typically means lower upfront costs, making short duration systems more accessible and scalable.
Q4. Can short duration storage replace long duration storage?
A4: No. Short duration and long duration energy storage serve different purposes and work best when deployed together.
Q5. What is the most common short duration energy storage technology?
A5: Lithium-ion batteries are the most widely used short duration batteries due to their efficiency, safety, and maturity.
