As global demand for renewable integration and grid stability grows, battery energy storage system (BESS) projects are rapidly expanding across commercial and utility-scale applications. At the heart of every efficient battery storage project lies one critical component: the power conversion system (PCS).
Whether you are an EPC contractor, energy developer, solar distributor, or project investor, understanding the bess power conversion system is essential for designing reliable and profitable energy storage systems.
This complete guide explains:
① What is PCS in energy storage
② How does PCS work
③ Difference between PCS and inverter
④ PCS sizing and efficiency
⑤ PCS for commercial energy storage and utility-scale projects
⑥ Compatibility with LiFePO4 battery systems
What Is PCS in Energy Storage?
A PCS (power conversion system) is a bidirectional power electronic device that converts electricity between DC (direct current) and AC (alternating current) in a battery energy storage system (BESS).
In simple terms:
♦ Batteries store energy in DC
♦ The grid and most loads operate on AC
♦ The BESS PCS manages the conversion between them
Without a PCS energy storage unit, batteries cannot interact efficiently with the grid or facility loads.
-----------------------------------------------------------------
Core Functions of a PCS BESS
A PCS power conversion system performs several critical tasks:
1. DC to AC conversion (discharge mode)
2. AC to DC conversion (charge mode)
3. Voltage and frequency regulation
4. Power factor correction
5. Harmonic control
6. Grid synchronization
7. Communication with EMS and BMS
In short, the energy storage PCS acts as the "brain" of the battery power interface. Without a reliable energy storage PCS, batteries cannot efficiently supply energy to commercial facilities or the grid.
For companies planning battery storage projects, integrated battery energy storage system solutions can simplify system design and deployment.

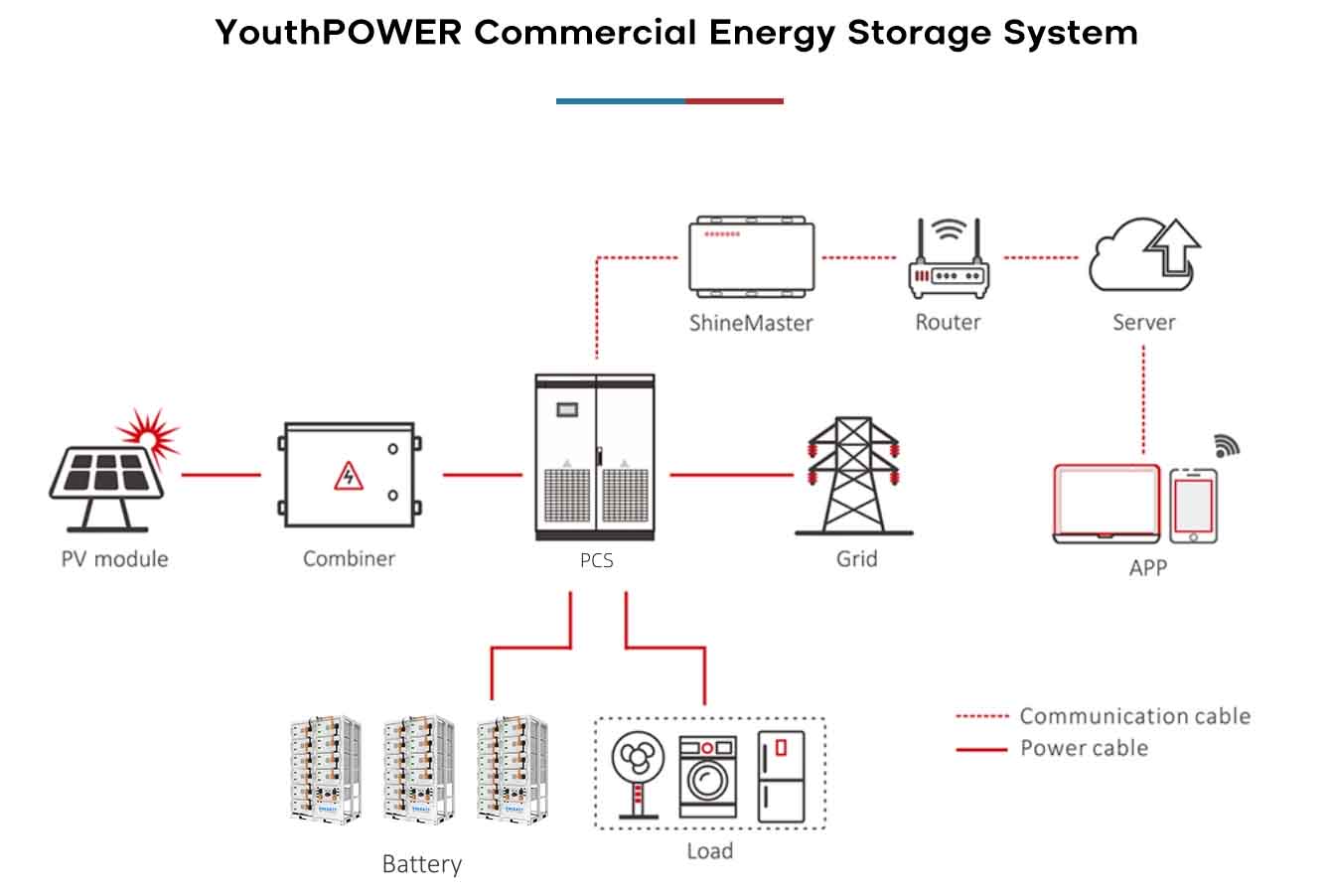

How Does PCS Work inside A BESS?
Understanding how PCS works helps explain its critical role in modern energy storage systems.
Charging Mode
- 1. AC power from the grid or renewable source (solar/wind) enters the PCS.
- 2. The PCS inverter converts AC into DC.
- 3. DC power charges the battery bank.
- 4. The PCS coordinates with the BMS to control current and voltage.
---------------------------------------------------------------------------------------------------------------------------------------------------
Discharging Mode
- 1. The battery outputs DC power.
- 2. The PCS converts DC into grid-quality AC.
- 3. The power is delivered to loads or exported to the grid.
This bidirectional conversion is what makes PCS battery storage systems suitable for advanced applications such as:
√ Peak shaving
√ Energy arbitrage
√ Renewable smoothing
√ Backup power supply
Many modern systems combine solar generation and battery storage to form hybrid power systems, where PCS manages energy flows between PV panels, batteries, and loads.
PCS Battery System Architecture in BESS
A typical PCS battery system includes:
▲ Battery racks (e.g., LiFePO4 battery modules)
▲ Battery Management System (BMS)
▲ Power Conversion System (PCS inverter)
▲ Energy Management System (EMS)
▲ Transformer (for medium voltage systems)
-----------------------------------------------------------------------
In a PCS battery storage configuration, PCS may be:
⭐ Centralized PCS (one large unit serving multiple battery racks)
⭐ String PCS (multiple smaller modular PCS units)

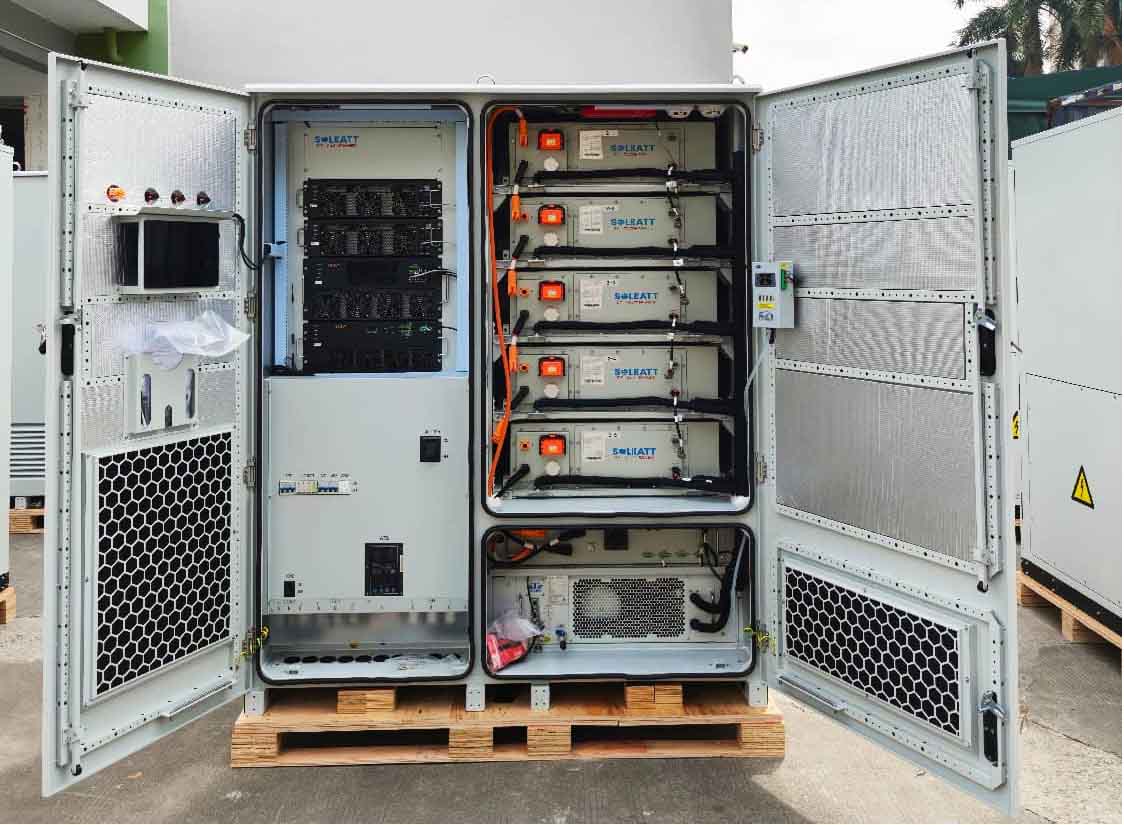

PCS Battery Energy Storage Cabinet for Commercial BESS
For commercial and utility-scale applications, modular PCS architecture improves scalability and redundancy.

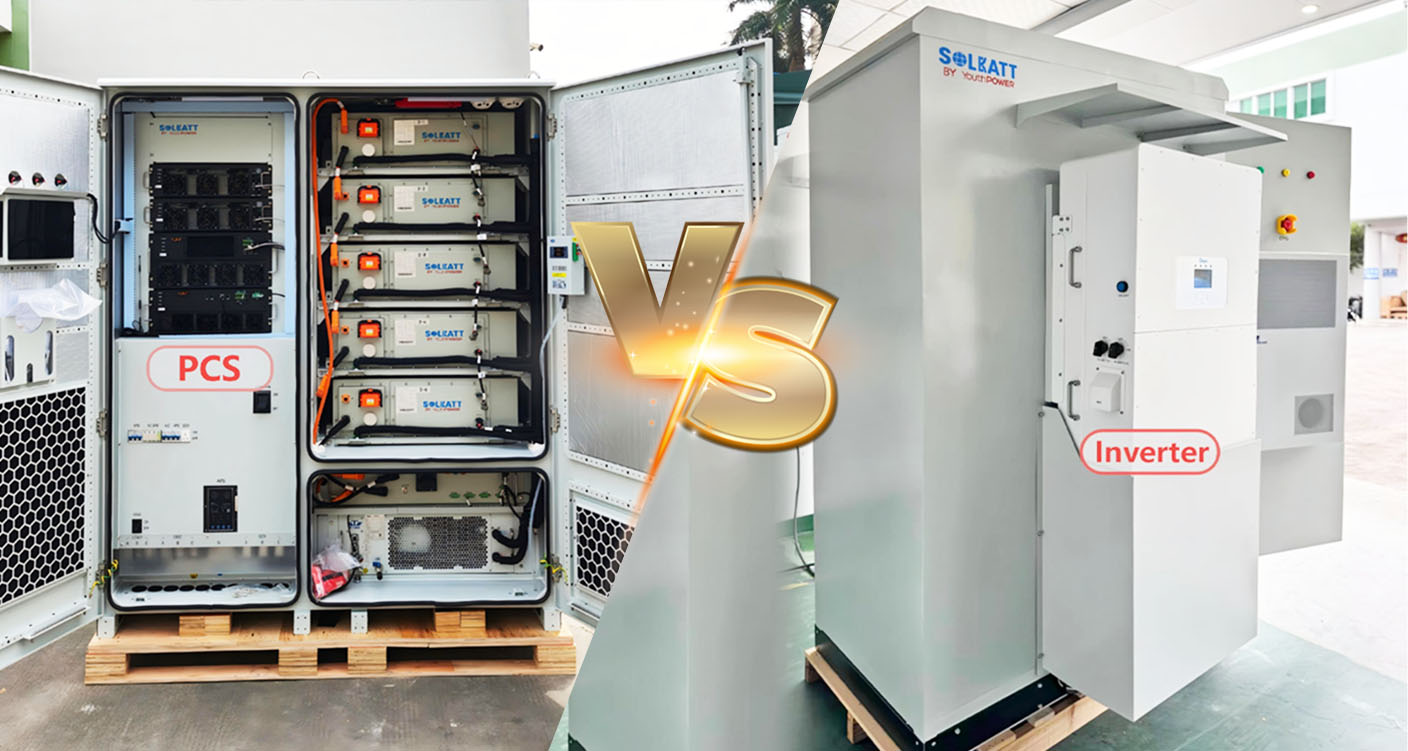

Difference Between PCS and Inverter
One of the most common industry questions is the difference between PCS and inverter.
Although both convert DC to AC, they are not identical.
| Feature | PCS (Power Conversion System) | Inverter (Standard/Solar) |
| Direction | Bidirectional (Charge/Discharge) | Mostly Unidirectional (DC to AC) |
| Primary Use | Battery Energy Storage (ESS) | Solar PV & Simple Backup |
| Intelligence | High (EMS/BMS Integration) | Low to Medium (Basic Monitoring) |
| Grid Interaction | Advanced (Grid-forming/following) | Basic (Grid-tie/Off-grid) |
| Cost | Higher (Advanced, High Power) | Lower (Simple, Lower Power) |
A PCS inverter in BESS is more advanced than a standard PV inverter. It is engineered specifically for energy storage systems, not just power generation.
PCS for Commercial Energy Storage
When designing PCS for commercial energy storage, key considerations include:
▲ Power rating (kW / MW)
▲ Voltage range compatibility
▲ Battery chemistry compatibility
▲ Efficiency
▲ Grid code compliance
▲ Communication protocol (Modbus, CAN, Ethernet)
▲ Protection and safety standards
YouthPOWER Commercial Energy Storage PCS Cabinet
-----------------------------------------------------------------------------------------------------------------------------------------------------
Commercial and industrial (C&I) projects often require PCS systems that support:
√ Demand charge reduction
√ Backup power integration
√ Solar + storage integration
√ Microgrid functionality
For factories, shopping centers, and data centers, a reliable energy storage solution depends heavily on correct PCS selection.
Utility Scale BESS PCS
In large grid-scale projects, the utility scale BESS PCS plays an even more critical role.
Utility-scale PCS systems typically offer:
◊ 500kW to 5MW+ per unit
◊ Medium voltage output via transformer
◊ High efficiency (>98%)
◊ Black start capability
◊ Grid-forming or grid-following modes
----------------------------------------------------------------------------------------------------------------------------------------------
These systems are used for:
» Frequency regulation markets
» Renewable firming
» Grid congestion management
» Capacity markets
» Ancillary services
Choosing the right energy storage PCS significantly impacts project ROI and grid compliance.
What Size PCS Do You Need?
Sizing the PCS battery storage correctly is crucial.
The PCS size depends on:
- ♦ Battery capacity (kWh / MWh)
- ♦ Desired C-rate (0.5C, 1C, etc.)
- ♦ Application type (backup, peak shaving, arbitrage)
- ♦ Grid interconnection limits
For example:
- ① A 500kWh battery at 0.5C requires a 250kW PCS.
- ② A 1MWh battery at 1C requires a 1MW PCS.
Oversizing increases costs. Undersizing limits performance.
Professional BESS manufacturers, like YouthPOWER often provide integrated PCS battery system design support to optimize efficiency and lifespan.
Can PCS Work with LiFePO4 Batteries?
Yes. Modern BESS PCS are fully compatible with LiFePO4 (Lithium Iron Phosphate) battery chemistry.
LiFePO4 solar batteries are widely used in commercial and utility projects because they offer:
- ⭐ High thermal stability
- ⭐ Long cycle life (6000+ cycles)
- ⭐ Excellent safety profile
- ⭐ Wide temperature tolerance
The PCS communicates with the BMS to ensure:
- ⭐ Controlled charge/discharge current
- ⭐ Over-voltage and under-voltage protection
- ⭐ Thermal protection
For B2B buyers, confirming PCS compatibility with LiFePO4 systems is essential when selecting an integrated energy storage solution.
Efficiency of Modern BESS PCS
Modern PCS energy storage systems achieve:
√ 96%–99% peak efficiency
√ Low harmonic distortion (<3%)
√ Fast response time (<20ms)
---------------------------------------------------------------------------------------------------------------------------------------------------
Higher efficiency means:
● Lower operating losses
● Better project IRR
● Reduced cooling requirements
● Improved system reliability
For large projects, even a 1% efficiency difference significantly impacts annual energy revenue.
Why PCS Quality Matters for Long-Term ROI
For EPCs and developers, the BESS power conversion system directly affects:
● System reliability
● Grid compliance
● Warranty performance
● Operational flexibility
● Return on investment
Choosing a trusted battery energy storage manufacturer like YouthPOWER that offers integrated BESS cabinet (battery + PCS + EMS) reduces compatibility risks and improves project success.

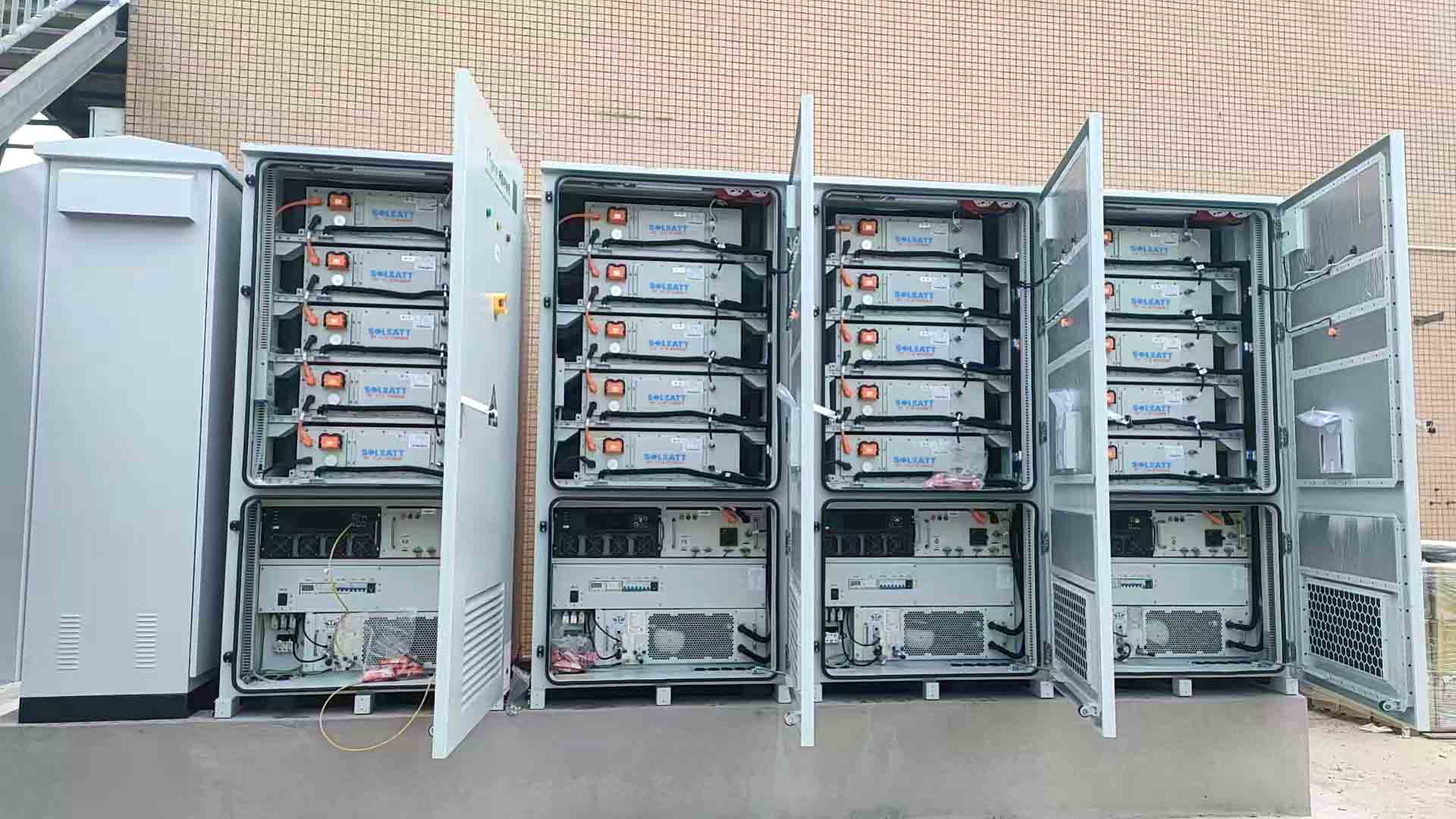

Hybrid Solar Battery Energy Storage System From YouthPOWER
Frequently Asked Questions (FAQs)
Q1. How does PCS communicate with the battery management system (BMS)?
A1: In a Battery Energy Storage System (BESS), the PCS communicates with the BMS through protocols such as CAN or Modbus to monitor battery voltage, current, temperature, and state of charge (SOC), ensuring safe and efficient operation.
Q2. Can PCS be used for off-grid or microgrid systems?
A2: Yes. PCS energy storage systems are commonly used in microgrids and off-grid applications, providing stable AC power from batteries and managing energy flows between renewable sources and loads.
Q3. Can a PCS support solar + battery hybrid systems?
A3: Yes. A PCS power conversion system can be used in hybrid power systems to integrate solar PV, battery storage, and the grid. This allows functions such as self-consumption, peak shaving, and backup power.
Q4. What certifications should a BESS PCS have?
A4: A reliable energy storage PCS typically complies with certifications and standards such as UL, IEC, CE, and grid code requirements, ensuring safety, reliability, and compatibility with energy storage systems.
Q5. What is the typical lifespan of a PCS in energy storage systems?
A5: A modern PCS battery system typically has a design lifespan of 10–20 years, depending on operating conditions, maintenance, and system configuration.
Q6: Does YouthPOWER BESS include a PCS?
A6: Yes. YouthPOWER provides standard BESS cabinets with integrated PCS.
These high-voltage cabinets are UN38.3 certified and can be shipped as a complete unit without disassembly, reducing shipping costs and on-site installation labor. If a project requires a specific PCS brand, customers can supply their own PCS (where compatible); YouthPOWER will provide the battery energy storage system.
Q7: What are some trusted BESS PCS brands on the market?
A7: Trusted PCS brands include Hitachi Energy, ABB, Schneider Electric SE, SMA, GoodWe, Sungrow, and others, widely used in commercial and utility-scale BESS projects.
If you are planning a commercial or utility-scale battery project, selecting the right power conversion system pcs is critical to long-term reliability and profitability.
For customized pcs battery system design or integrated energy storage solution support, consult with us at sales@youth-power.net today to ensure your project achieves maximum performance and ROI.
