As renewable energy adoption continues to accelerate worldwide, battery energy storage systems (BESS) are becoming essential for improving grid stability, maximizing solar energy usage, and reducing electricity costs. Among the many performance indicators used to evaluate battery storage systems, battery round trip efficiency (RTE) is one of the most important technical metrics.
Battery round trip efficiency measures how much usable energy you can retrieve from a battery compared to the amount of energy required to charge it. The higher the efficiency, the less energy is lost during storage.

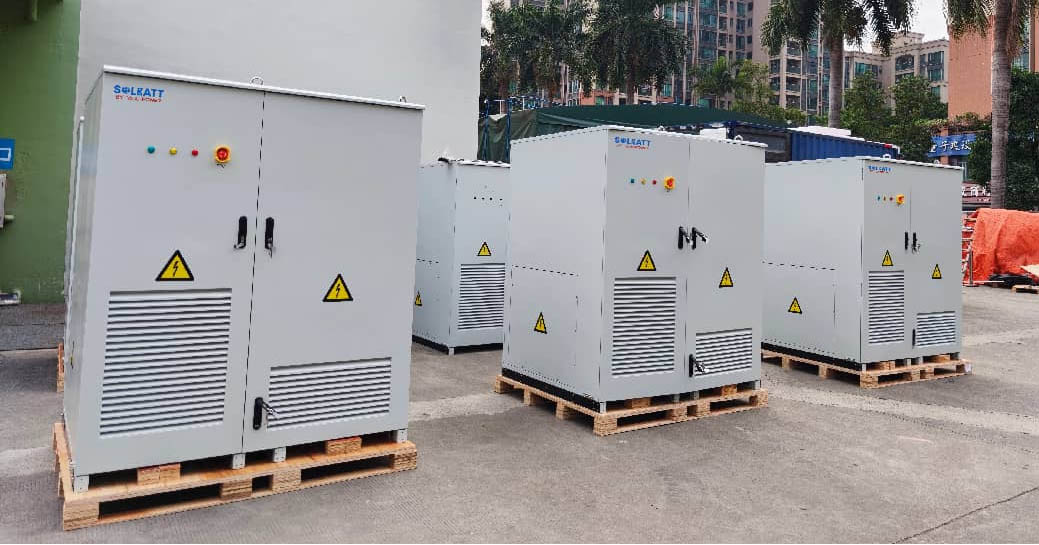

Battery Energy Storage Systems (BESS) for Solar Energy Use
Modern lithium batteries typically achieve 90%–98% round trip efficiency, especially advanced LiFePO4 batteries used in solar energy storage systems, while traditional lead-acid batteries usually operate between 70%–85%. This difference is one of the main reasons why lithium iron phosphate (LiFePO4) batteries are now widely used in residential, commercial, and industrial solar storage systems.
In this technical guide, we explain:
- 1. What battery round trip efficiency is
- 2. How it is calculated
- 3. What factors affect efficiency
- 4. Battery efficiency comparison by chemistry
- 5. Why LiFePO4 batteries achieve high efficiency
- 6. How manufacturers optimize efficiency

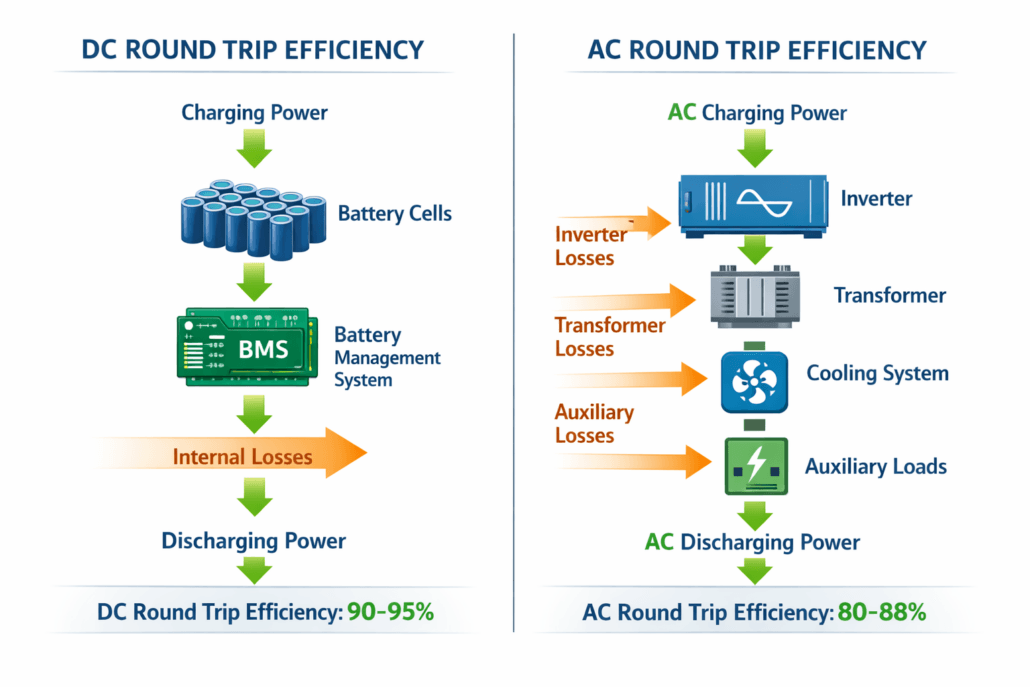

What is Battery Round Trip Efficiency?
Battery round trip efficiency is the ratio between the energy discharged from a battery and the energy used to charge it.
Some energy loss always occurs due to:
- ● Internal resistance
- ● Heat generation
- ● Chemical conversion losses
- ● Battery management system consumption
- ● Power conversion losses
For example:
If you charge a battery with 10 kWh and later retrieve 9.5 kWh, the missing 0.5 kWh represents energy loss during storage.
Because these losses cannot be completely eliminated, no battery achieves 100% efficiency. However, modern lithium battery technology significantly reduces these losses.
For energy storage system owners, higher efficiency means:
- ♦ More usable electricity
- ♦ Lower operating costs
- ♦ Higher solar utilization
- ♦ Better long-term return on investment

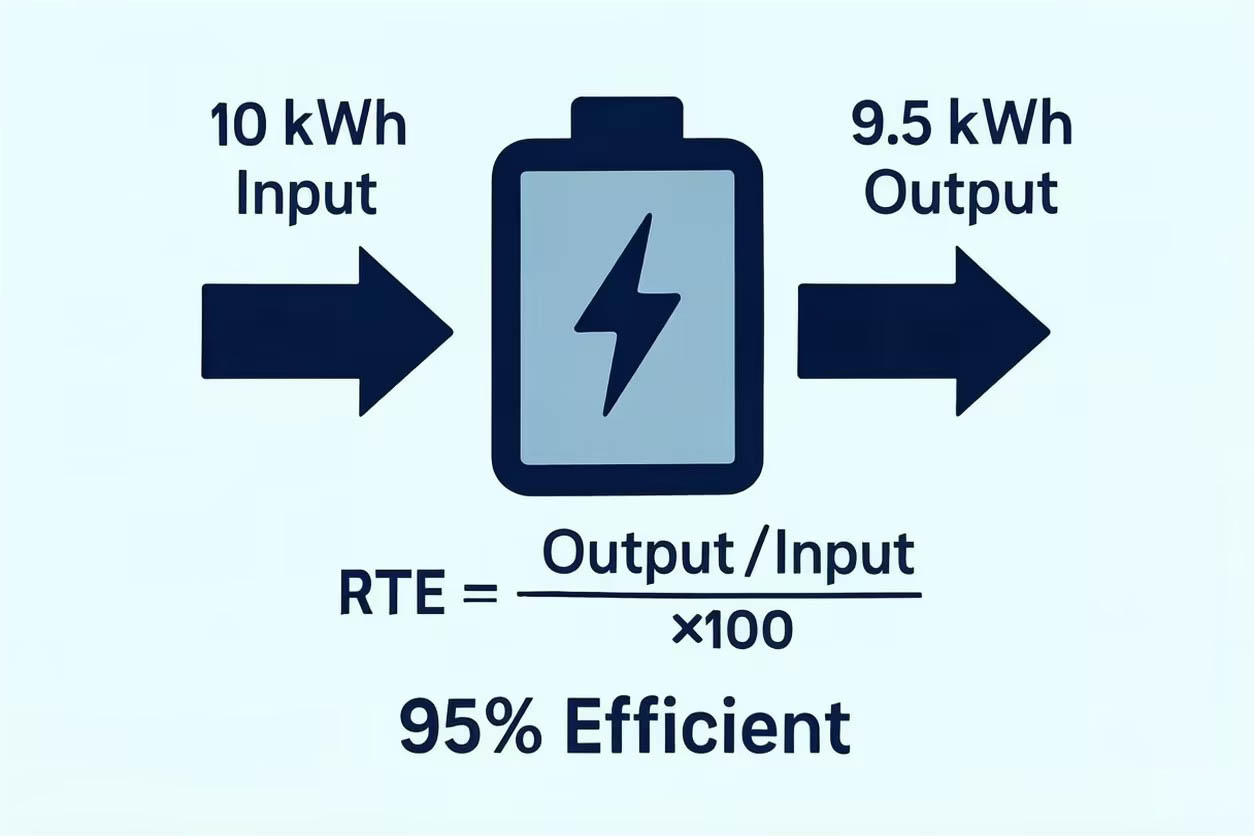

Battery round trip efficiency formula and example calculation
This is why round trip efficiency is considered a critical specification when selecting a battery energy storage system (BESS).
How is Battery Round Trip Efficiency Calculated?
Battery round trip efficiency is calculated using the following formula:
Round Trip Efficiency (%) = Energy Discharged ÷ Energy Charged × 100
Example calculation:
| Parameter | Value |
| Energy charged | 10 kWh |
| Energy discharged | 9.6 kWh |
| Energy loss | 0.4 kWh |
| Round trip efficiency | 96% |
Manufacturers typically test efficiency under controlled conditions:
- ▲ 25°C standard temperature
- ▲ Defined charge/discharge current
- ▲ Standard depth of discharge
- ▲ Controlled voltage window
Efficiency is normally measured across multiple cycles to ensure realistic performance data.
Typical battery efficiency ranges:
| Battery Type | Typical Efficiency |
| Lead Acid Battery | 70–85% |
| Lithium Ion Battery | 90–96% |
| LiFePO4 Battery | 95–98% |
Over thousands of cycles, even small efficiency differences create significant energy savings.
Why Round Trip Efficiency Matters in Energy Storage Systems
Round trip efficiency directly impacts both technical performance and financial returns of energy storage systems.
Higher efficiency improves:
- √ Energy savings
- √ Solar self-consumption
- √ Electricity cost reduction
- √ System lifetime value
Example long-term impact:
| Efficiency | Energy Loss per 10 kWh cycle | Loss after 4000 cycles |
| 98% | 0.2 kWh | 800 kWh |
| 95% | 0.5 kWh | 2000 kWh |
| 85% | 1.5 kWh | 6000 kWh |
This demonstrates why efficiency is a major design consideration in professional solar storage projects.
What Affects Battery Round Trip Efficiency?
Several technical factors influence battery efficiency.
The following table summarizes key factors:
| Factor | Impact Level | Engineering Explanation |
| Battery Chemistry | High | Lithium has lower resistance |
| Temperature | Medium-High | Extreme temps increase losses |
| Charge Rate | Medium | Fast charging increases heat |
| Discharge Rate | Medium | High loads increase losses |
| Battery Management System | High | Cell balancing improves efficiency |
| Depth of Discharge | Medium | Extreme cycling increases losses |
| System Integration | High | Poor design wastes energy |
Professional system design must consider all these variables to achieve optimal performance.
Round Trip Efficiency of Different Battery Types
Different battery technologies vary significantly in efficiency due to their internal chemistry and design.
| Battery Type | Round Trip Efficiency | Cycle Life | Key Advantages | Applications |
| Lead Acid | 70–85% | 500–1200 | Low cost | Backup systems |
| Lithium Ion (NMC) | 90–96% | 3000–5000 | High energy density | EV & storage |
| LiFePO4 | 95–98% | 6000+ | Safety & efficiency | Solar storage |
| Flow Battery | 65–80% | 10000+ | Long duration | Grid storage |
LiFePO4 batteries provide one of the best balances between:
- ① Efficiency
- ② Safety
- ③ Lifespan
- ④ Reliability
This makes them the preferred solution for solar energy storage systems.
Round Trip Efficiency of LiFePO4 Batteries
LiFePO4 batteries are known for delivering consistently high efficiency throughout their lifespan.
Typical performance:
| Performance Parameter | Typical LiFePO4 Value |
| Round Trip Efficiency | 95–98% |
| Charge Efficiency | 98–99% |
| Discharge Efficiency | 95–97% |
| Cycle Life | 6000 cycles |
| Depth of Discharge | 95% |
| Operating Temperature | -20°C to 60°C |
Key engineering reasons for high efficiency:
| Engineering Feature | Efficiency Benefit |
| Low internal resistance | Reduces heat loss |
| Stable crystal structure | Maintains performance |
| Thermal stability | Reduces degradation |
| Flat voltage curve | Improves energy delivery |
| Long cycle stability | Maintains efficiency over time |
At YouthPOWER, battery systems are engineered using:
- ● Advanced BMS architecture
- ● Premium LiFePO4 cells
- ● Optimized module structure
- ● Intelligent thermal design
- ● Strict quality control processes
These practices help maintain high efficiency throughout battery lifetime.
Round Trip Efficiency vs Coulombic Efficiency
These two metrics are often confused but measure different performance characteristics.
| Metric | Measures | Concept | Importance |
| Coulombic Efficiency | Charge transfer | Charge out vs charge in | Electrochemical performance |
| Round Trip Efficiency | Energy transfer | Energy out vs energy in | Real storage performance |
Because energy depends on voltage as well as current, round trip efficiency better reflects real usable energy.
For energy storage system designers, round trip efficiency is therefore the more important metric.
How to Improve Battery Round Trip Efficiency
Battery efficiency can be improved through engineering optimization.
| Optimization Method | Impact | Recommended Practice |
| Use LiFePO4 batteries | High | Choose low resistance cells |
| Thermal control | Medium-High | Maintain 15–35°C |
| Proper charge rates | Medium | Avoid extreme currents |
| High efficiency inverter | Medium | Select >97% efficiency |
| Advanced BMS | High | Active balancing preferred |
| Proper installation | Medium | Reduce wiring losses |
Proper engineering can improve system efficiency by 3–8%.
Battery Round Trip Efficiency in Solar Energy Storage Systems
In solar storage systems, total system efficiency depends on multiple components.
| System Component | Typical Efficiency |
| Solar inverter | 96–98% |
| LiFePO4 battery | 95–98% |
| DC wiring | 98–99% |
| Power conversion | 96–98% |
| Total system efficiency | 85–92% |
This demonstrates why selecting high-quality components across the entire system is critical.
System engineering matters just as much as battery selection.

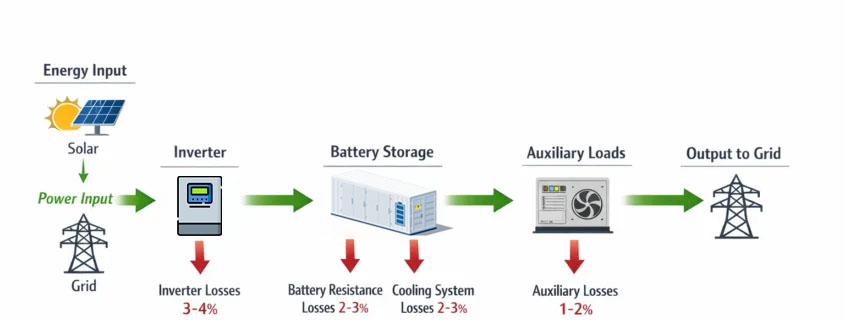

Total efficiency chain in solar energy storage systems
Why LiFePO4 Batteries Offer Higher Efficiency

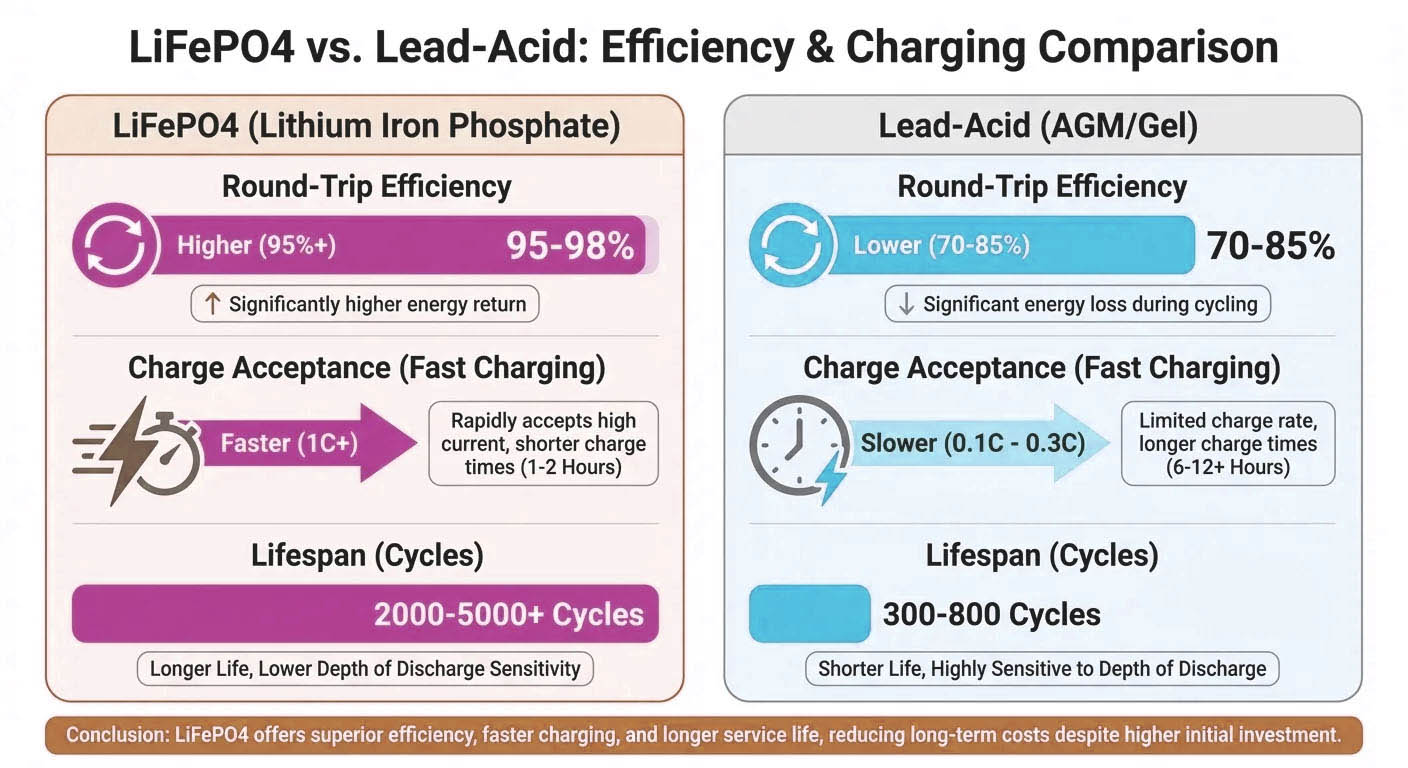

LiFePO4 vs Lead Acid Efficiency Comparison
Compared to traditional batteries, LiFePO4 offers clear efficiency advantages:
| Feature | LiFePO4 Battery | Lead Acid Battery |
| Round Trip Efficiency | 95–98% | 70–85% |
| Internal Resistance | Low | High |
| Heat Generation | Low | High |
| Cycle Life | 6000+ | 500–1200 |
| Maintenance | Minimal | Regular required |
| Lifetime Energy Loss | Very low | High |
This is why LiFePO4 batteries are rapidly replacing lead-acid batteries in solar storage installations.
How Manufacturers Test Battery Efficiency
Professional manufacturers test battery efficiency using standardized laboratory procedures.
| Test Type | Purpose |
| Cycle testing | Measure efficiency stability |
| Temperature testing | Evaluate thermal impact |
| Load testing | Measure performance at power levels |
| Aging testing | Evaluate long term degradation |
| Standards testing | Verify compliance |
Testing may follow battery certification standards:
- ● IEC standards
- ● UL certification requirements
- ● CE compliance procedures
Professional manufacturers also analyze:
- ⭐ Efficiency degradation trends
- ⭐ Long-term cycle stability
- ⭐ Real-world simulation testing
This ensures customers receive reliable performance data.
Conclusion
Battery round trip efficiency is one of the most critical performance indicators in energy storage systems. It directly influences energy savings, operating costs, and long-term investment value.
Modern lithium batteries, particularly LiFePO4 technology, provide industry-leading efficiency, long cycle life, and excellent safety performance. These advantages make LiFePO4 batteries ideal for solar energy storage, commercial storage, and grid applications.
By selecting high-quality LiFePO4 battery storage systems, optimizing system design, and working with experienced manufacturers, energy storage developers can maximize system efficiency and long-term performance.
As battery technology continues to evolve, efficiency improvements will remain a key factor driving energy storage adoption worldwide.
Battery Round Trip Efficiency FAQ
Q1. What is a good round trip efficiency for a battery?
A1: A good battery round trip efficiency is typically above 90%. High quality lithium batteries usually achieve 95–98%.
Q2. Do LiFePO4 batteries have high efficiency?
A2: Yes. LiFePO4 batteries are among the most efficient commercial battery technologies.
Q3. Why do batteries lose energy?
A3: Losses occur due to resistance, heat, chemical reactions, and power conversion processes.
Q4. Which battery type has the highest efficiency?
A4: Lithium batteries, especially LiFePO4, generally provide the highest efficiency.
Q5. Does temperature affect battery efficiency?
A5: Yes. Batteries typically perform best between 15°C and 35°C.
