20kwh battery system Li-ion Battery Solar System 51.2V 400ah

20kwh battery system Li-ion Battery Solar System 51.2V 400ah
YOUTHPOWER YP51400 20KWH is a fully – integrated home storage system with Lifepo4 batteries, applied for easily retrofitted to an existing solar PV installation. The system stores energy generated during the day and discharge at night when household electricity demand peaks. We expect the battery pack about 20 years life and more than 6000 cycles.

Enjoy easy installation and cost with Youth Power Home SOLAR WALL BATTERY, We are always ready to supply the first-class products and meet the various needs of the customers.

Ask For Price Download

Product Detail

Product Tags

Product Specifications

YOUTHPOWER YP51400 20KWH is a fully – integrated home storage system with Lifepo4 batteries, applied for easily retrofitted to an existing solar PV installation. The system stores energy generated during the day and discharge at night when household electricity demand peaks. We expect the battery pack about 20 years life and more than 6000 cycles.

Enjoy easy installation and cost with Youth Power Home SOLAR WALL BATTERY, We are always ready to supply the first-class products and meet the various needs of the customers.

You’re looking at a Solar System 51.2V 400ah 20kwh Li-ion Battery.

This battery is designed to be used as a replacement for the original battery that came with your solar system. It’s guaranteed to be compatible with your solar system and work just as well as the original.

This is a lithium ion battery, so it will charge faster than other types of batteries. It has an energy density of 400Ah, which means it can hold more energy than most other lithium ion batteries on the market today.

Model No	YP51400 20KWH
Nominal Parameters
Voltage	51.2V
Material	Lifepo4
Capacity	400Ah
Energy	20.48KwH
Dimensions (L x W x H)	600x846x293 mm
Weight	205KG
Basic Parameters
Life time(25° C)	Expected Life time
Life cycles(80% DOD, 25° C)	6000 Cycles
Storage time / temperature	5 months @ 25° C; 3 months @ 35° C; 1 month @ 45° C
Operation temperature	﹣20° C to 60° C @60+/-25% Relative Humidity
Storage temperature	0° C to 45° C @60+/-25% Relative Humidity
Lithium Battery Standard	UL1642(CelI), IEC62619, UN38.3, MSDS, CE-EMC
Enclosure protection rating	IP21
Electrical Parameters
Operation voltage	51.2 Vdc
Max. charging voltage	58 Vdc
Cut-off-Discharge Voltage	46 Vdc
Max, charging and discharging current	100A Max. Charge and 200A Max. Discharge
Compatibility	Compatible with all standard off grid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio.
Warranty Period	warranty 5-10 years
Remarks	Youth Power battery BMS must be wired in parallel only. Wiring in series will void the warranty.

20kwh battery price

Part Number: YP 51400-20KW

Brand: YouthPOWER

Voltage: 51.2V

Capacity: 400AH

Power: 20KWH

Our other solar battery series: home battery storage All In One ESS

Product Feature

01. Long cycle life - product life expectancy of 15-20 years
02. Modular system allows storage capactiy to be easily expandable as power needs increase.
03. Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04. Operates at unparalleled 98% efficiency for more than 5000 cycles.
05. Can be rack mounted or wall mounted in a dead space area of your home / business.
06. Offer up to 100% depeth of discharge.
07. Non-toxic and non-hazardous recylcable materials - recycle at end of life.

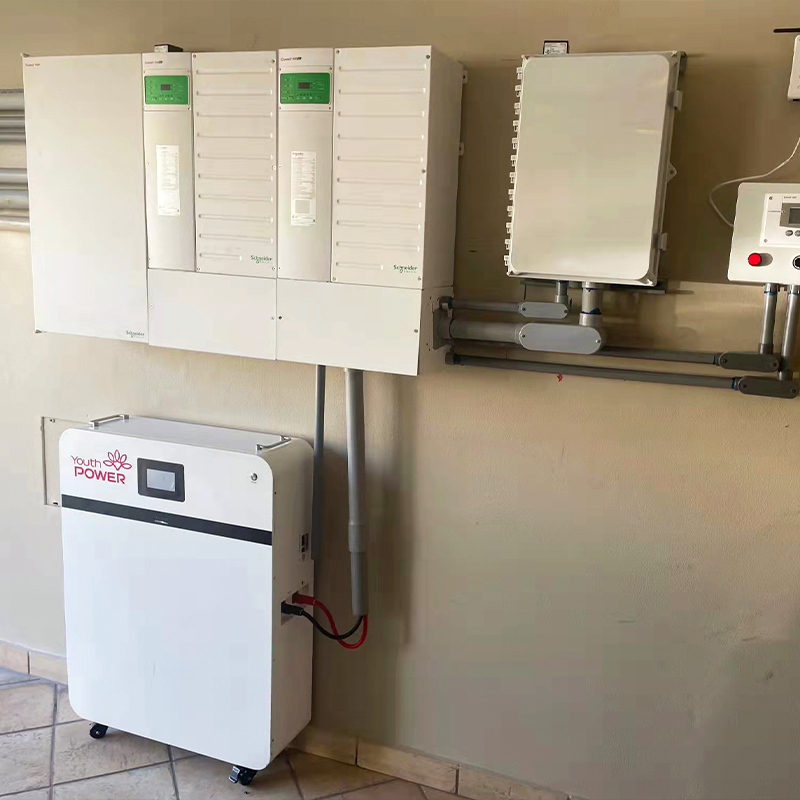

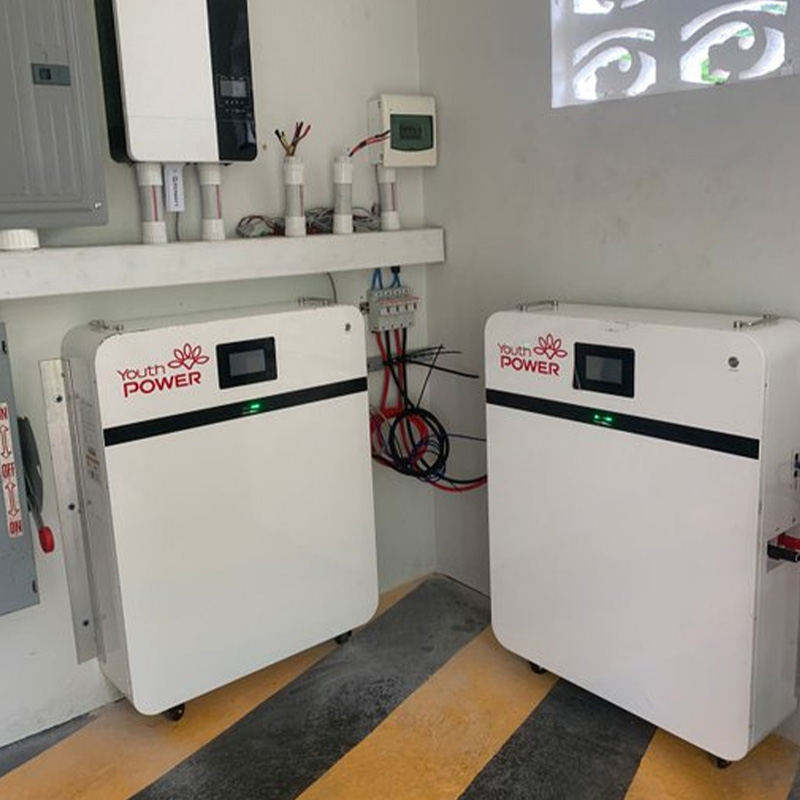

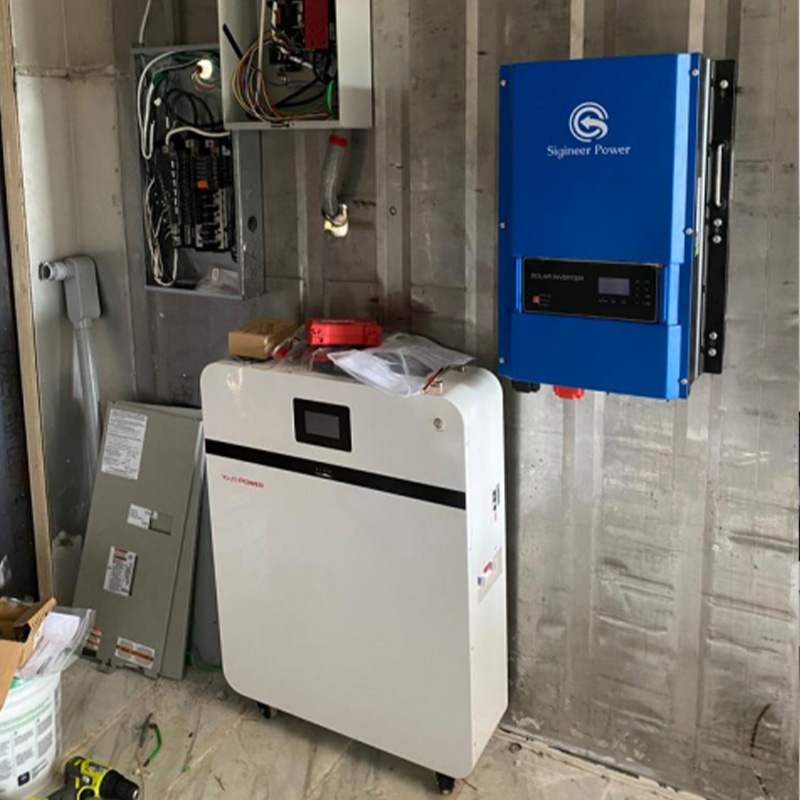

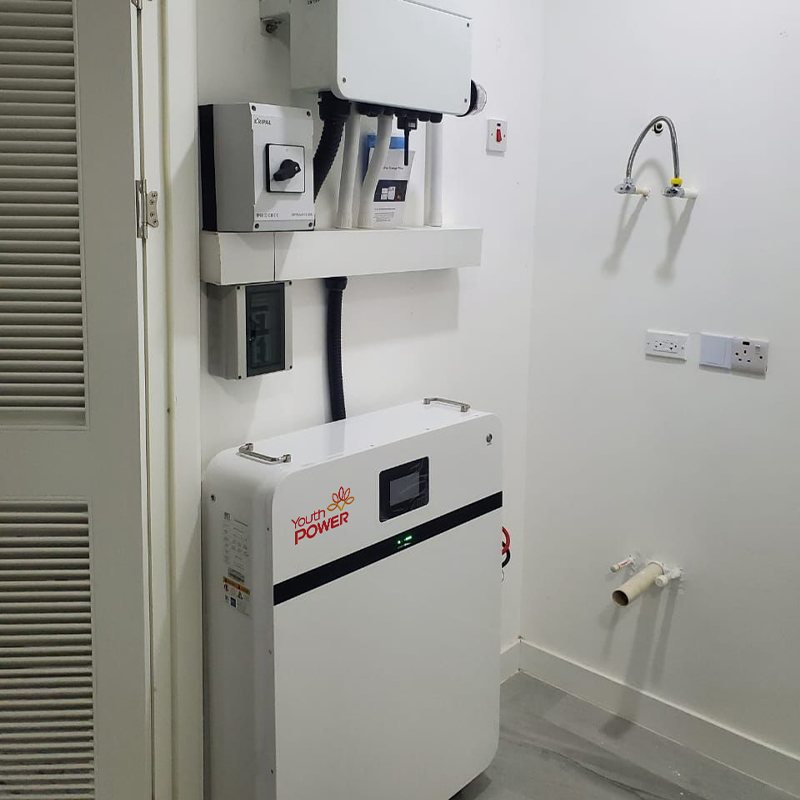

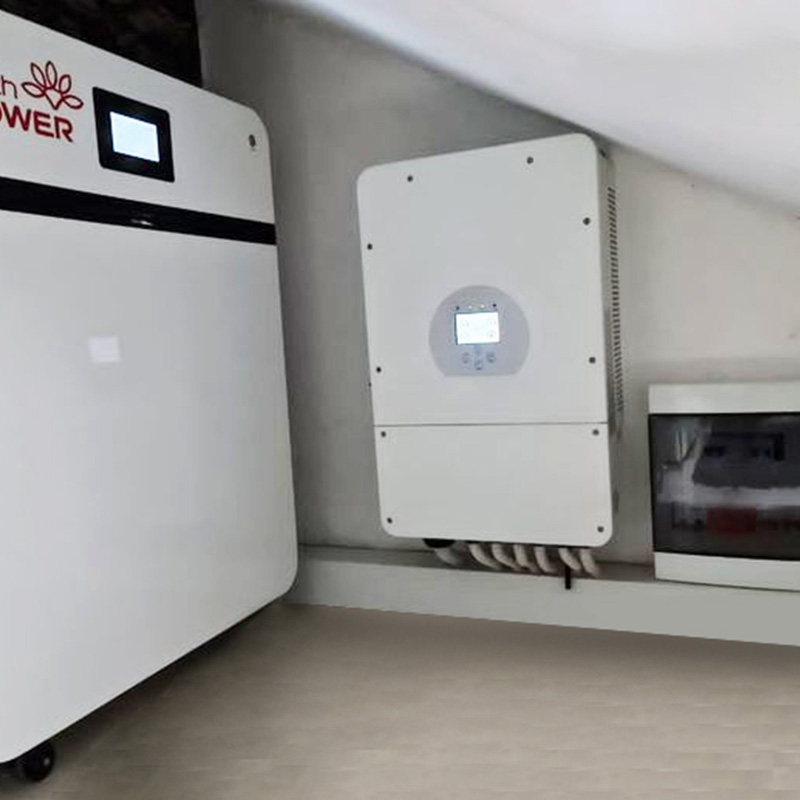

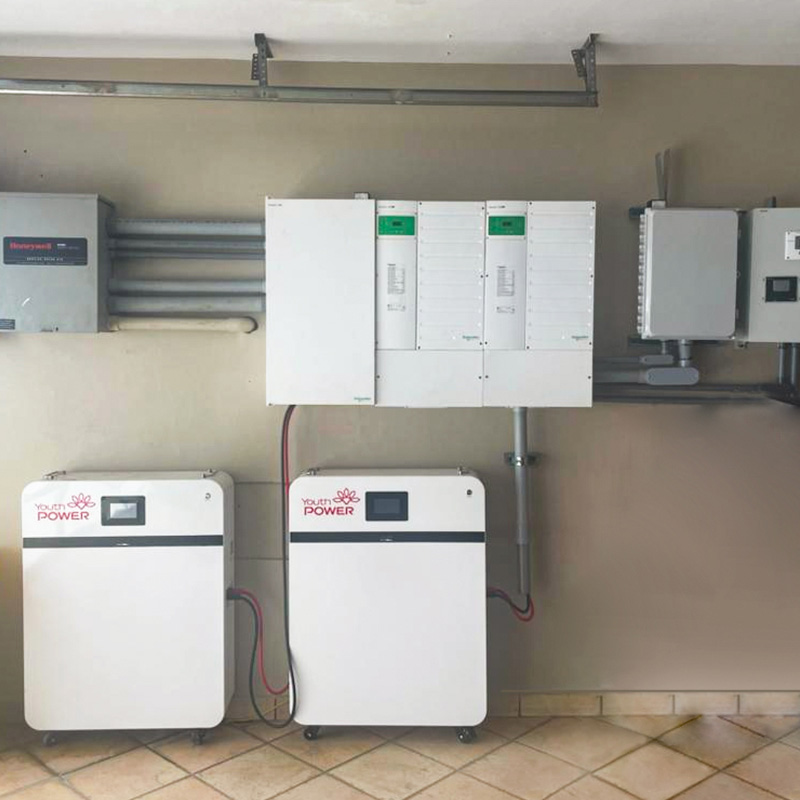

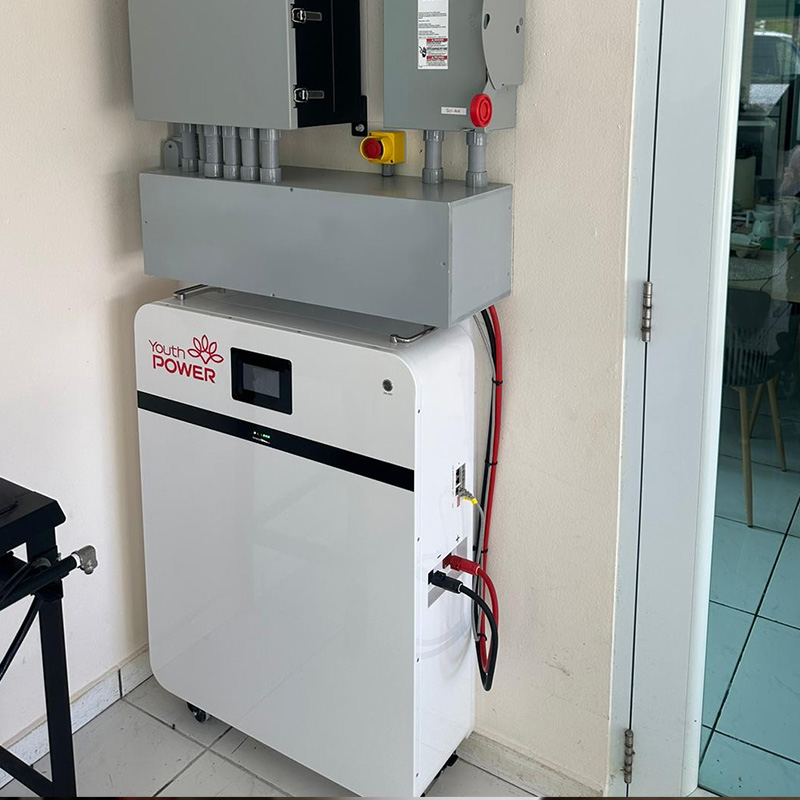

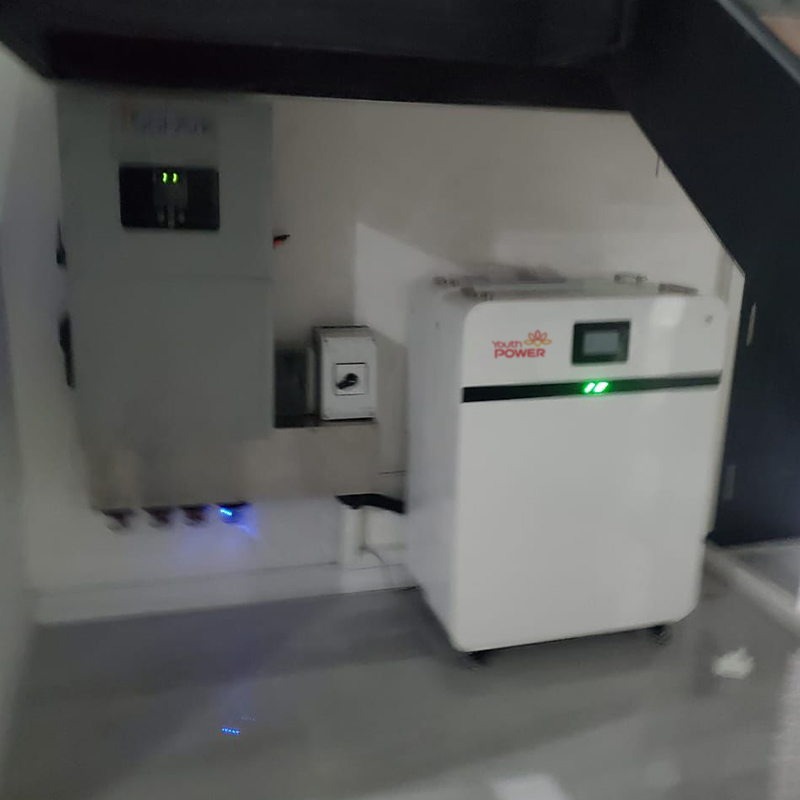

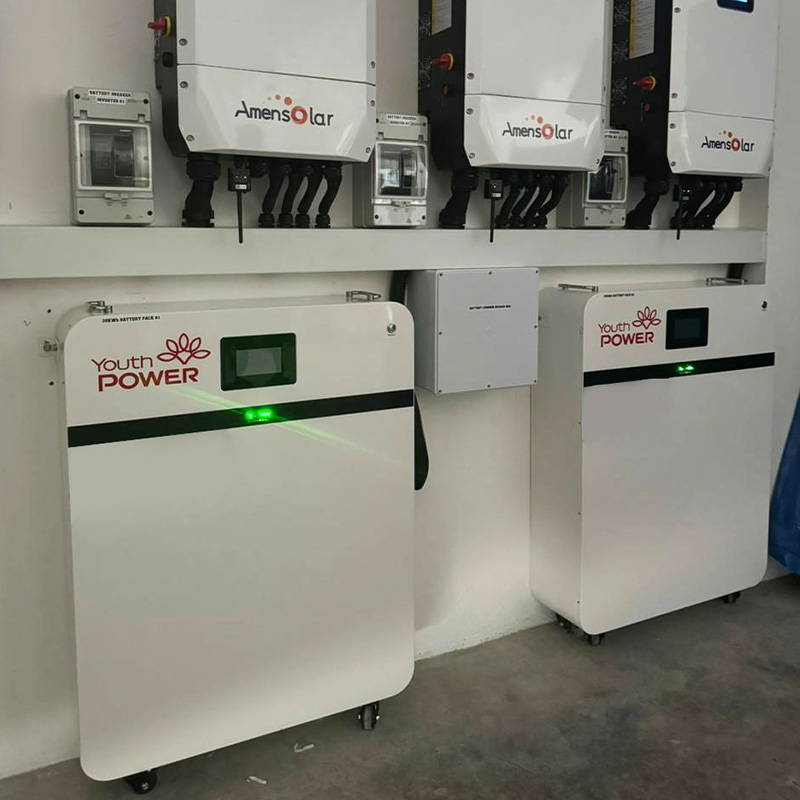

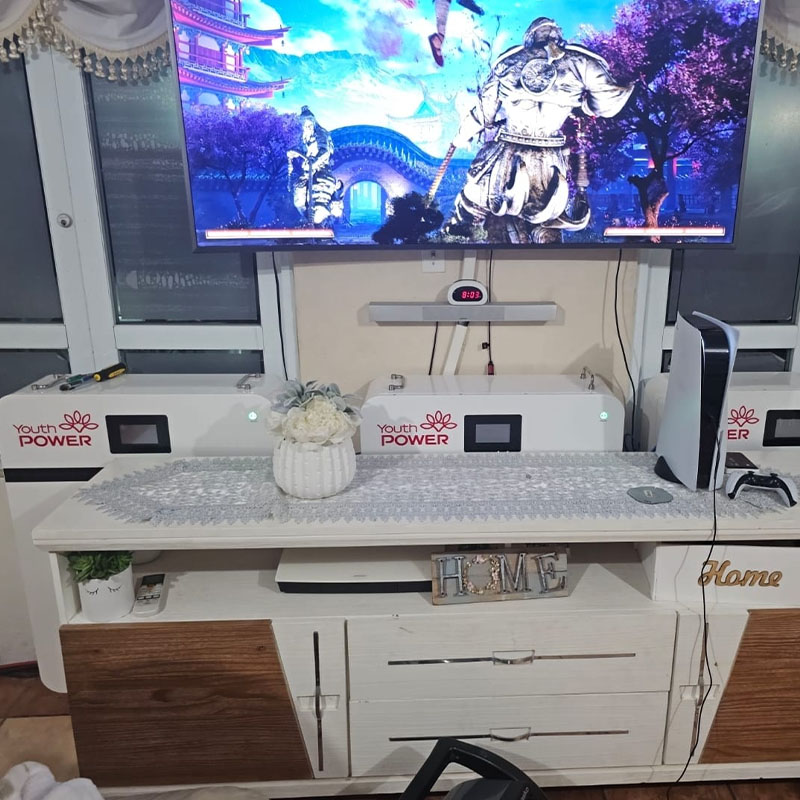

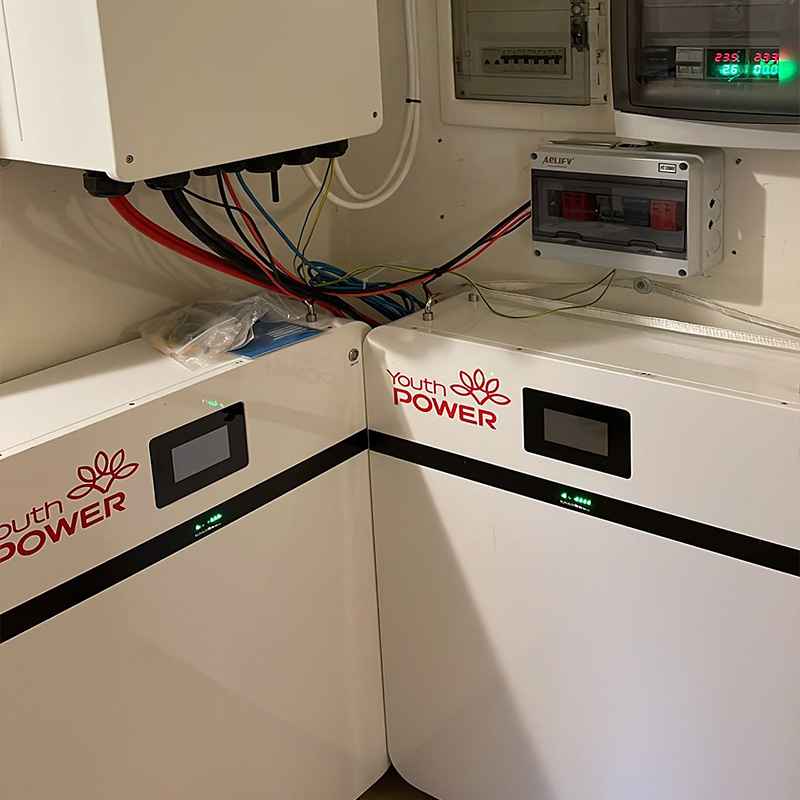

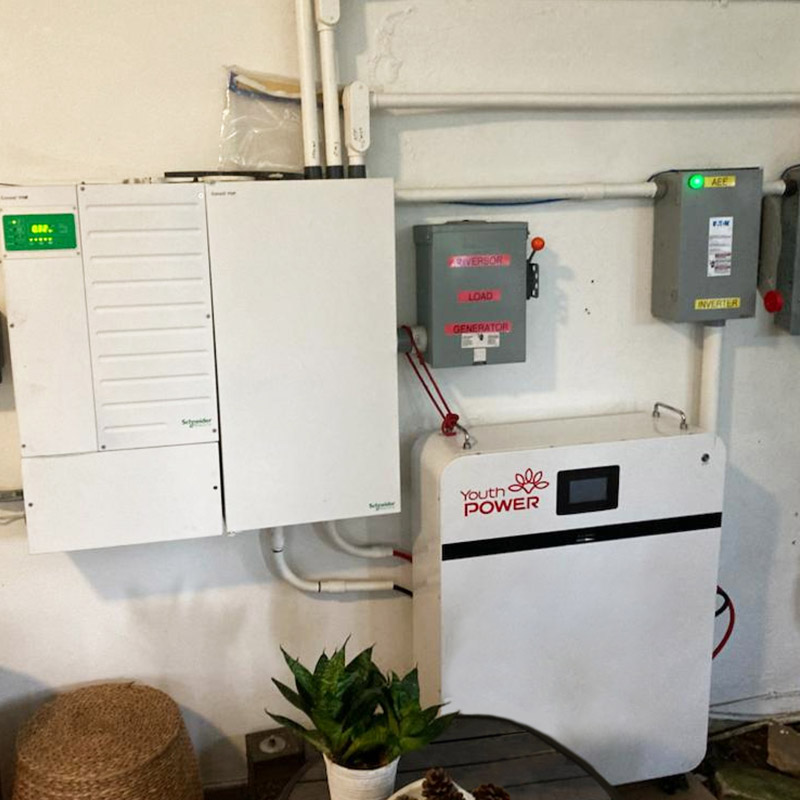

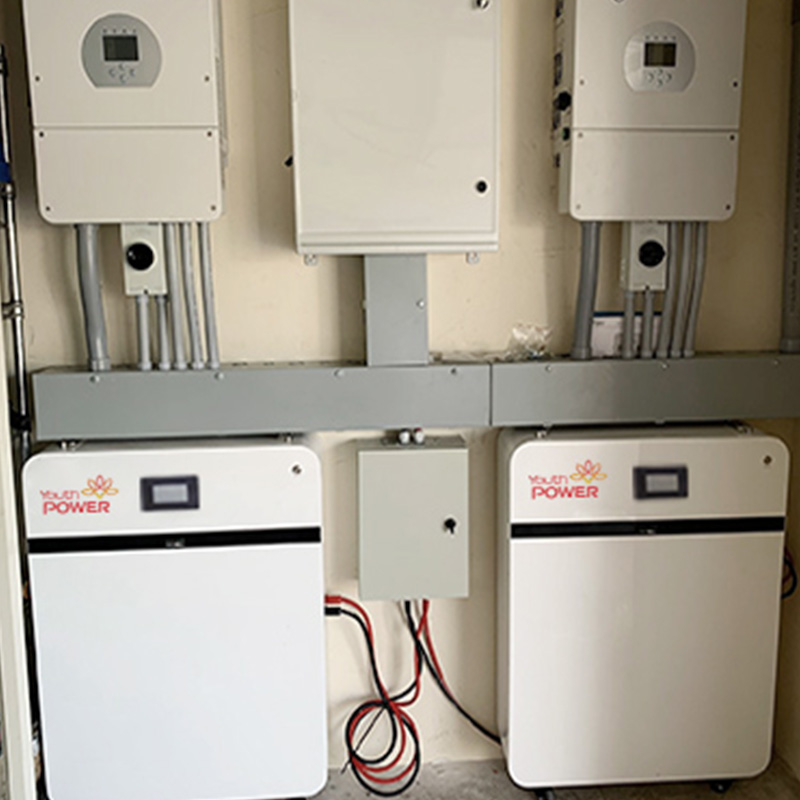

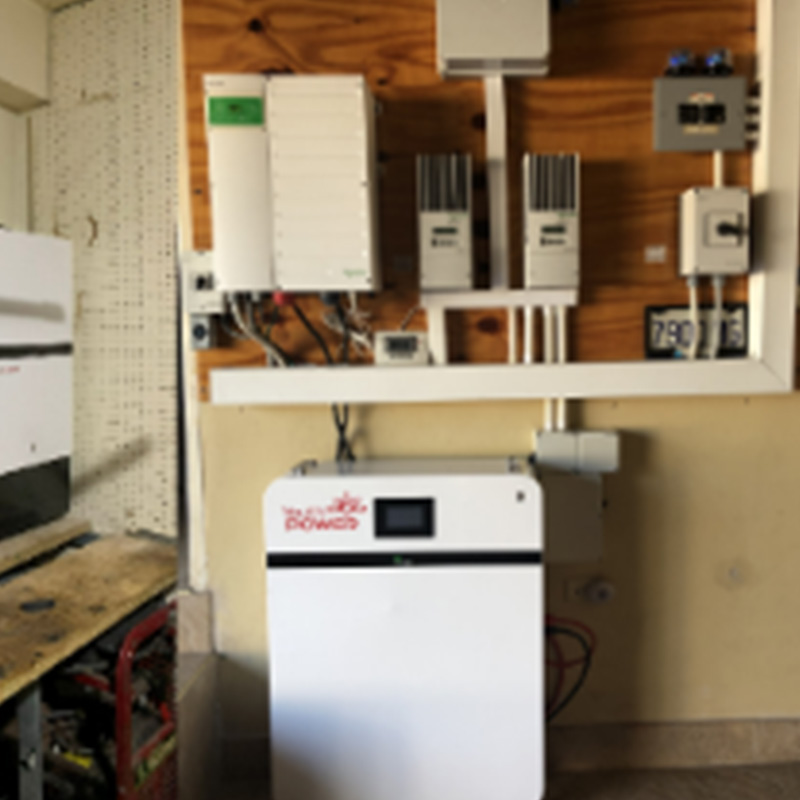

Product Application

Product Certification

YouthPOWER lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received various international certifications, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

Product Packing

YouthPOWER adheres to strict shipping packaging standards to guarantee the impeccable condition of our 20kWH-51.2V 400Ah lithium iron phosphate batteries during transit. Each battery is carefully packaged with multiple layers of protection, effectively protecting against any potential physical damage. Our efficient logistics system ensures prompt delivery and timely receipt of your order.
