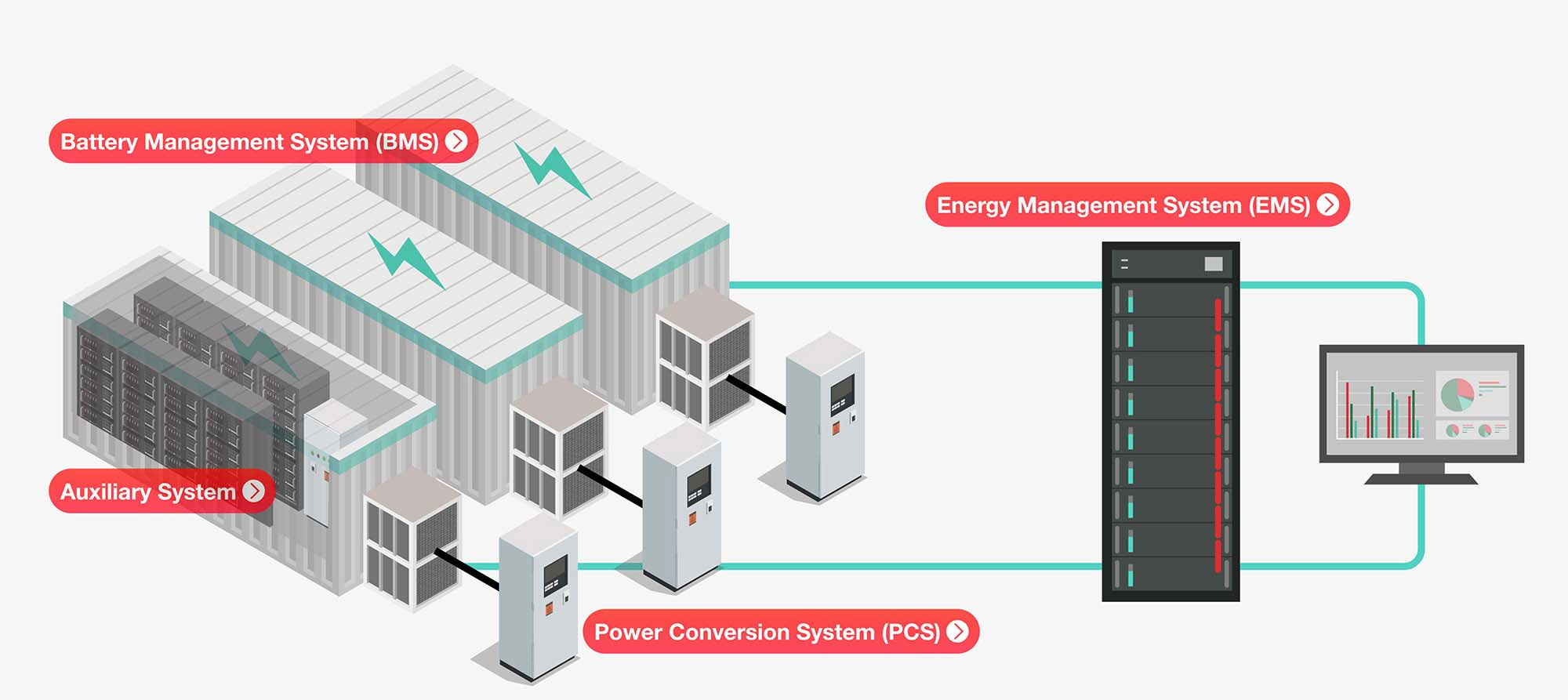

Energy Storage System Architecture with EMS, BMS and PCS
As solar battery storage systems and renewable energy technologies continue to grow worldwide, understanding the key components of an energy storage system becomes increasingly important. Two critical technologies in modern lithium battery energy storage solutions are the Energy Management System (EMS) and the Battery Management System (BMS).
Many people often confuse these two systems, but they perform very different roles. Simply put, the energy management system (EMS) manages the overall energy flow of a system, while the battery management system (BMS) focuses specifically on the health and safety of the battery pack.
In this guide, we will explain the difference between EMS and BMS, how each system works, and why both are essential for efficient and safe solar energy storage systems using LiFePO4 battery storage technology.

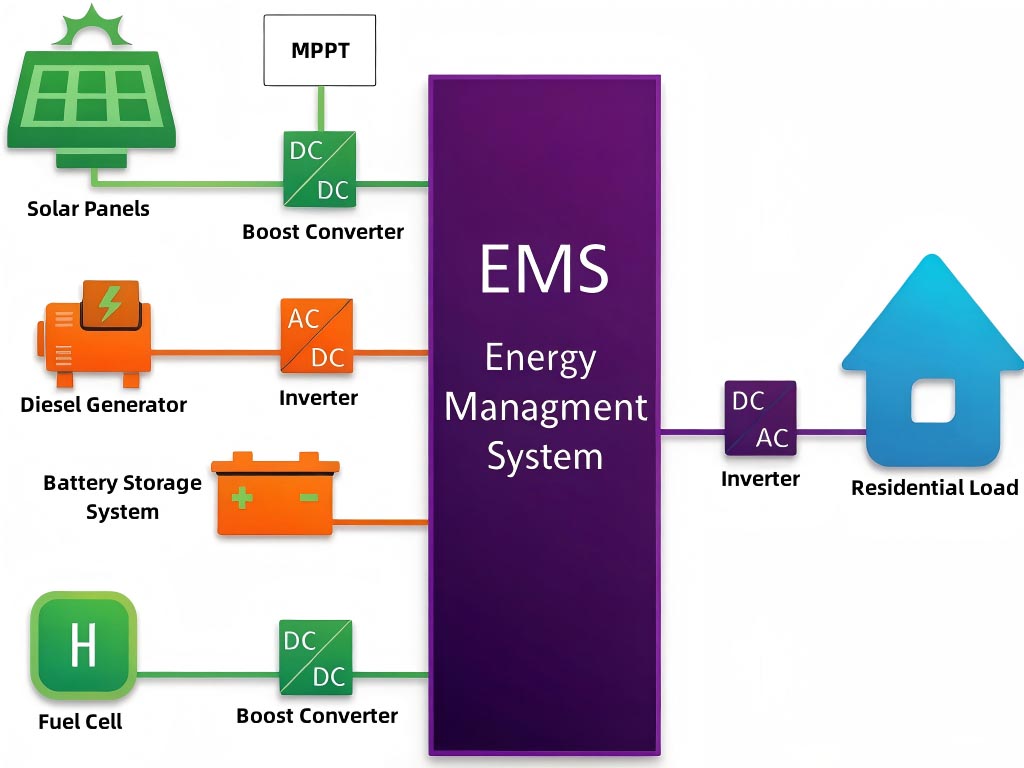

What Is an Energy Management System (EMS)?
An energy management system (EMS) is a software and control platform that monitors, manages, and optimizes energy production, storage, and consumption within an energy storage system. It collects real-time data from solar panels, inverters, electrical loads, and lithium battery storage units to ensure energy is used efficiently.
A modern energy management system for solar battery storage helps optimize energy production, battery charging, and electricity consumption across the entire solar energy system. By analyzing real-time data and system demand, the EMS energy management system can automatically decide when to store energy in batteries, power electrical loads, or export electricity to the grid.
For example, an EMS for solar battery storage can decide whether solar power should be:
- ● Used immediately by the building
- ● Stored in batteries
- ● Exported to the grid
- ● Reserved for peak demand periods
This intelligent energy control helps improve efficiency and reduce electricity costs. EMS platforms are especially important in large solar battery storage systems, commercial solar projects, and solar energy storage systems that require automated optimization.

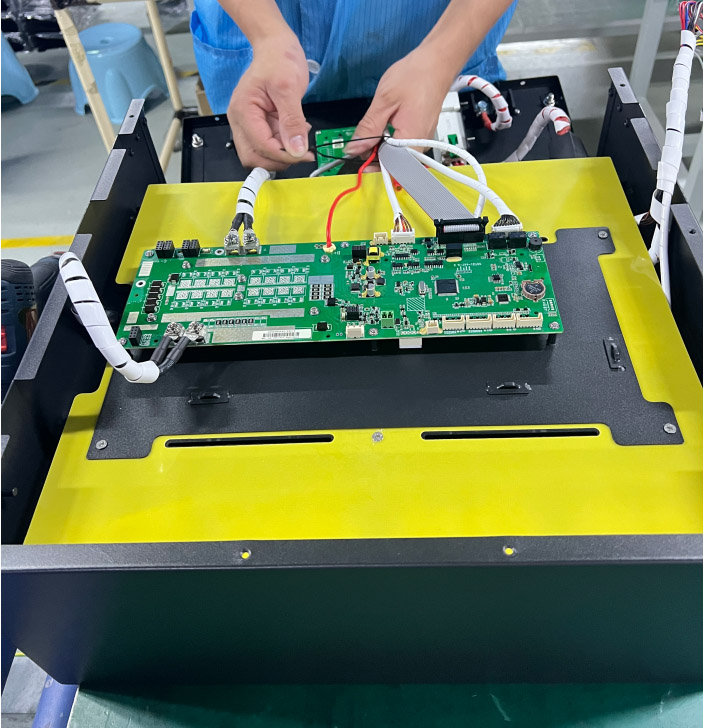

What Is a Battery Management System (BMS)?
A battery management system (BMS) is responsible for monitoring and protecting the battery itself. Unlike the EMS, which controls the entire energy ecosystem, the battery management system (BMS) focuses on the internal operation of the battery pack.
In a BMS lithium battery setup, the system continuously monitors critical parameters such as:
▲ Cell voltage
▲ Temperature
▲ Charge and discharge current
▲ State of charge (SOC)
A LiFePO4 battery management system also performs essential safety functions such as preventing overcharging, over-discharging, short circuits, and overheating.
These protections are especially important in lithium battery energy storage applications where long battery life and system safety are critical. By balancing cells and controlling charging behavior, the BMS ensures stable and reliable operation for LiFePO4 battery storage systems used in residential, commercial, and industrial applications.
Key Differences Between EMS and BMS Systems
Understanding the difference between EMS and BMS is essential when designing a reliable solar battery storage or energy storage system.
Below is a simplified comparison of EMS vs BMS:
|
Feature |
Energy Management System (EMS) |
Battery Management System (BMS) |
|
Scope |
Manages the entire energy system |
Manages the battery pack |
|
Function |
Energy optimization and distribution |
Battery monitoring and protection |
|
Focus |
System-level energy control |
Battery-level safety and performance |
|
Application |
Solar energy storage systems, grid systems |
Lithium battery packs |
|
Role |
Controls energy flow |
Protects battery health |
In short, the energy management system focuses on how energy is used, while the battery management system ensures the battery operates safely and efficiently.

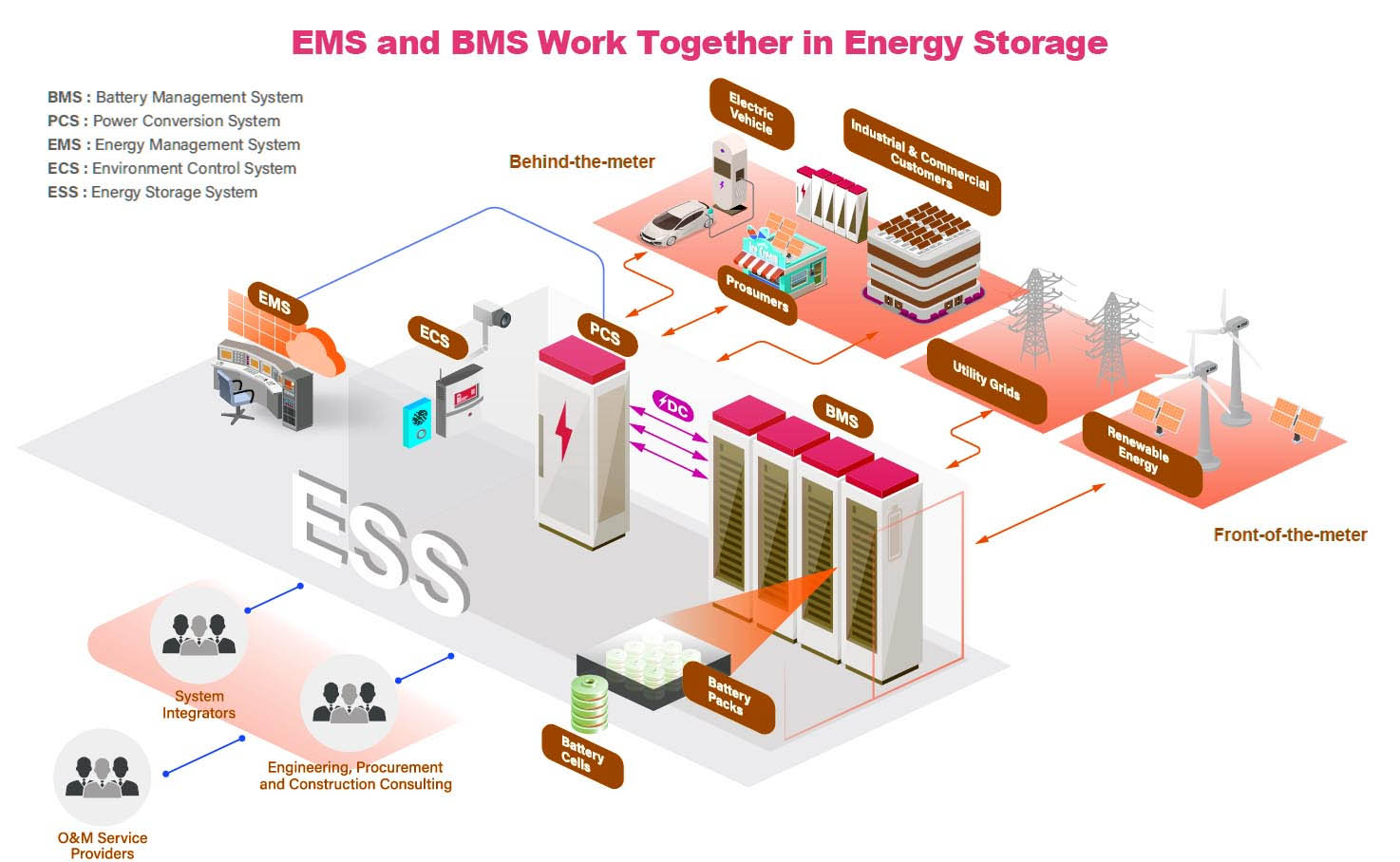

Why EMS and BMS Work Together in Energy Storage
In modern solar battery storage systems, EMS and BMS work together to ensure optimal system performance.
The energy management system (EMS) decides when to charge or discharge batteries based on energy demand, solar production, and electricity prices. At the same time, the battery management system (BMS) ensures that the battery operates safely during those charging and discharging cycles.
This collaboration is essential in advanced lithium battery storage solutions. Without a BMS, the battery could be damaged or become unsafe. Without an EMS, the system would not be able to optimize energy use or reduce operating costs.
Together, EMS and BMS create a reliable and intelligent solar battery storage infrastructure, especially when integrated with modern LiFePO4 battery energy storage solutions designed for high efficiency and long cycle life.
Conclusion
Understanding the difference between EMS and BMS is essential for anyone working with modern solar energy storage systems or lithium battery energy storage technologies.
While the energy management system (EMS) controls energy flow across the entire system, the battery management system (BMS) monitors and protects the battery pack to ensure safe and stable operation. Together, these technologies play a crucial role in maintaining efficiency, safety, and long-term reliability in solar battery storage systems.
As solar adoption continues to grow, businesses, system integrators, and installers increasingly rely on advanced LiFePO4 battery energy storage solutions that combine intelligent EMS integration with reliable BMS protection.
Choosing a reliable lithium battery storage manufacturer is therefore essential for successful solar energy projects. High-quality batteries with advanced BMS lithium battery technology and compatibility with modern energy management systems can significantly improve the performance and lifespan of an energy storage system.
If you are looking for dependable LiFePO4 battery storage solutions for residential, commercial, or industrial solar battery storage projects, explore YouthPOWER’s lithium battery systems here: LiFePO4 Solar Battery Storage Solutions
For product details, OEM/ODM cooperation, or project inquiries:
Email: sales@youth-power.net
FAQs About EMS and BMS Systems
Q1. What is the main difference between EMS and BMS?
A1: The main difference between EMS and BMS is their scope. The energy management system (EMS) manages the entire energy flow of a system, while the battery management system (BMS) focuses on monitoring and protecting the battery pack.
Q2. Do solar battery systems need both EMS and BMS?
A2: Yes. Modern solar battery storage systems require both technologies. The EMS optimizes energy usage, while the BMS ensures the lithium battery energy storage operates safely and efficiently.
Q3. What batteries use BMS technology?
A3: Most modern lithium battery storage systems use a BMS lithium battery architecture. This includes LiFePO4 battery storage, which is widely used in solar and commercial energy storage applications.
Q4. Why is BMS important for LiFePO4 batteries?
A4: A LiFePO4 battery management system monitors temperature, voltage, and charging cycles to prevent damage and extend battery life, making it essential for reliable LiFePO4 battery solutions.
