What is a Battery Thermal Management System
A Battery Thermal Management System (BTMS) is a technology designed to regulate the temperature of battery packs, ensuring they operate within an optimal temperature range. It prevents overheating, overcooling, and temperature imbalances between cells, all of which can negatively impact battery performance, lifespan, and safety. In simple terms, it is a system that keeps batteries neither too hot nor too cold.
BTMS is especially critical in lithium-ion batteries or LiFePO4 batteries, commonly used in electric vehicles (EVs), consumer electronics, and renewable energy storage systems (ESS). These batteries are sensitive to temperature variations, making thermal control essential for reliable operation.
A well-designed btms battery thermal management system ensures consistent temperature distribution across cells, preventing performance imbalance and degradation.
Why Battery Thermal Management is Important
Understanding why battery thermal management is important is key for both manufacturers and buyers.
1. Safety
Excessive heat can lead to thermal runaway, which may cause fires or explosions. A reliable battery thermal management system minimizes this risk.
2. Performance Optimization
Battery efficiency drops at extreme temperatures. Proper battery thermal management ensures stable output and charging efficiency.
3. Extended Lifespan
High temperatures accelerate battery aging. A BTMS can significantly prolong battery life, reducing replacement costs.
4. Energy Efficiency
Efficient battery cooling technologies reduce energy losses and improve overall system performance.
How a Battery Thermal Management System Works
If you're wondering "how does a battery thermal management system work?", here's a simplified explanation:
A battery thermal management system (BTMS) operates through three main steps:
- ⭐ Temperature Monitoring
- Sensors continuously measure battery temperature at multiple points.
- ⭐ Heat Transfer
- The system removes or redistributes heat using cooling or heating methods.
- ⭐ Control System
- A controller adjusts cooling intensity based on real-time data.
The goal is to maintain the battery within an optimal temperature range (typically 15°C to 35°C for lithium batteries).

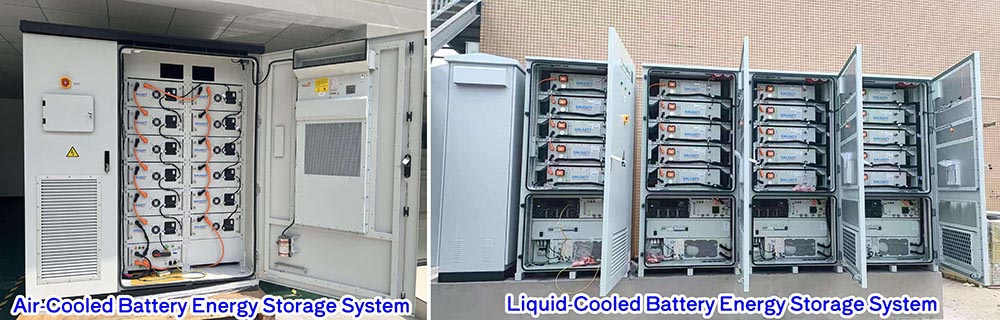

Types of Battery Cooling Systems
There are several types of battery thermal management system designs, each suited for different applications. The table below clearly compares the main battery cooling technologies:
| Cooling Type | Advantages | Disadvantages | Typical Applications |
| Air Cooling (Air cooling battery system) | ● Simple structure and low cost ● Easy installation and maintenance ● No risk of leakage |
● Limited cooling efficiency ● Poor temperature uniformity ● Not suitable for high energy density batteries |
Small-scale energy storage systems (ESS), residential storage |
| Liquid Cooling (Liquid cooling battery system) | ● High heat dissipation efficiency ● Excellent temperature uniformity ● Suitable for high-performance batteries |
● Higher system cost ● Complex design and maintenance ● Potential leakage risks |
Electric vehicles (EVs), large-scale energy storage battery thermal management |
| Phase Change Materials (PCM) | ●Passive cooling (no energy consumption) ● High thermal energy absorption ● Compact and silent operation |
● Limited continuous cooling capability ● Requires combination with other systems ● Higher material cost |
Backup systems, hybrid battery thermal management systems |

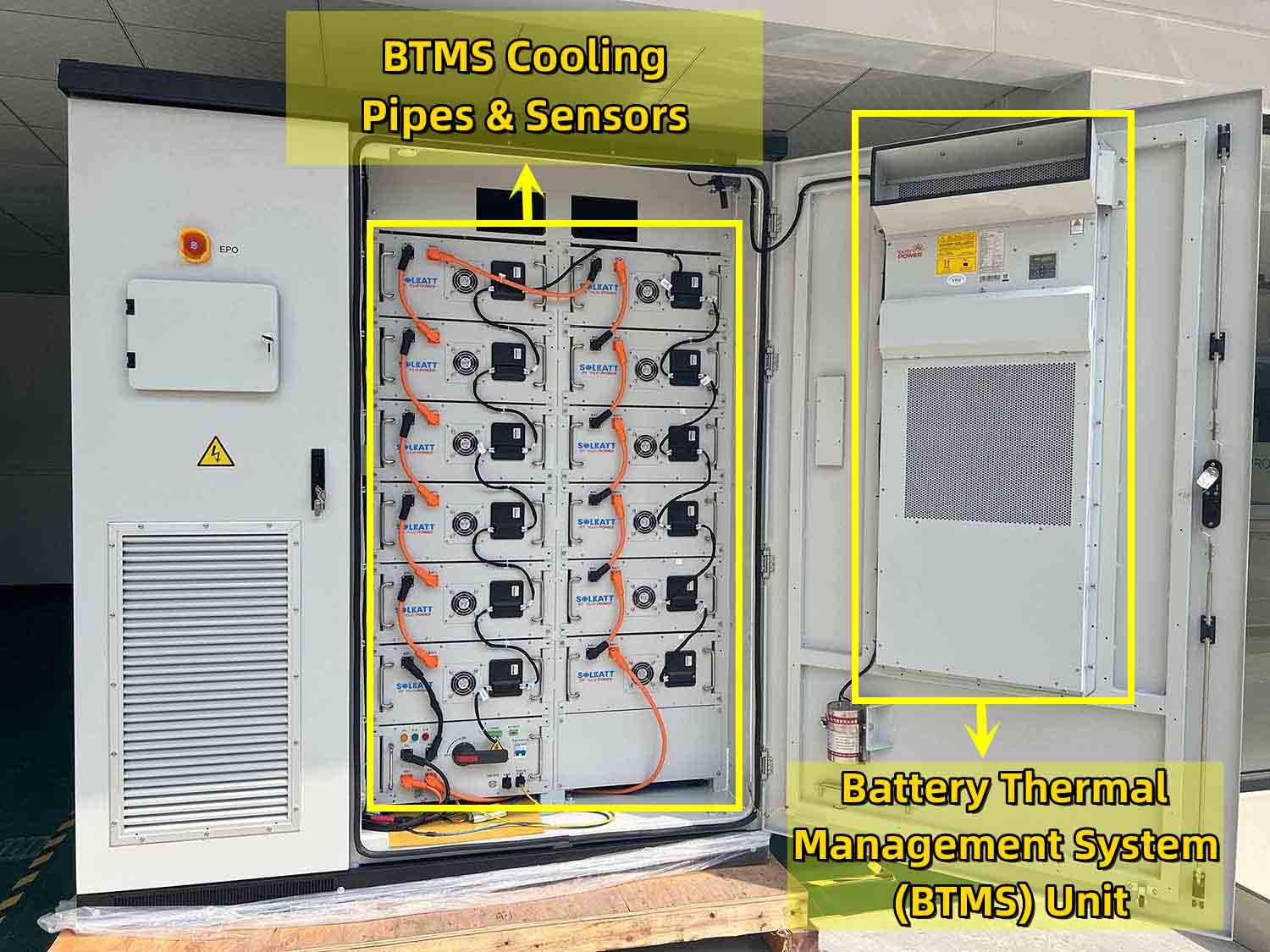

Key Components of a BTMS
A complete battery thermal management system typically includes:
● Temperature Sensors – Monitor battery conditions
● Cooling/Heating Units – Air fans, liquid channels, or PCM modules
● Control Unit (BMS Integration) – Manages system response
● Heat Exchangers – Transfer heat efficiently 3.
● Insulation Materials – Prevent unwanted heat transfer
These components work together to deliver effective battery thermal management systems.

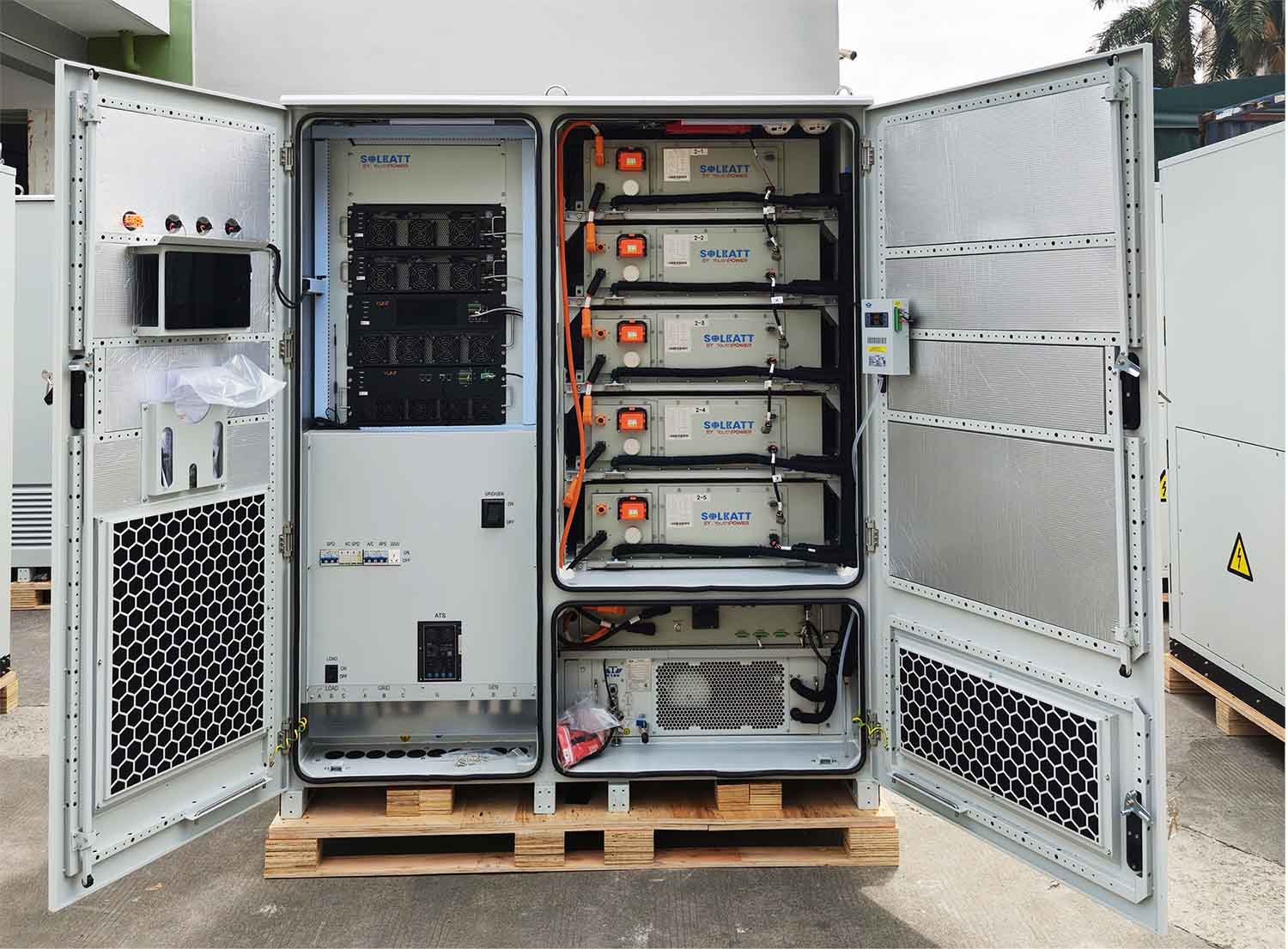

YouthPOWER air-cooled battery storage cabinet
Applications in Electric Vehicles and Energy Storage
The role of a battery thermal management system (BTMS) varies across applications. The table below highlights how battery thermal management systems are used in electric vehicles and energy storage systems (ESS):
| Application | Key Requirements | Role of Battery Thermal Management System | Benefits |
| Electric Vehicles (EVs) | ● High power output ● Fast charging capability ● Compact battery design |
● Maintains optimal temperature during rapid charge/discharge ● Prevents overheating and thermal runaway ● Ensures uniform temperature across battery cells |
● Improved driving range ● Enhanced safety ● Longer battery lifespan ● Better performance in extreme climates |
| Energy Storage Systems (ESS) | ● Long-duration operation ● High cycle life ● Stable performance over time |
● Regulates temperature during continuous operation ● Prevents degradation in large battery packs ● Supports system stability in varying environments |
● Increased system reliability ● Lower maintenance costs ● Extended battery life ● Higher ROI for commercial & industrial users |
How to Choose the Right BTMS for Your Battery

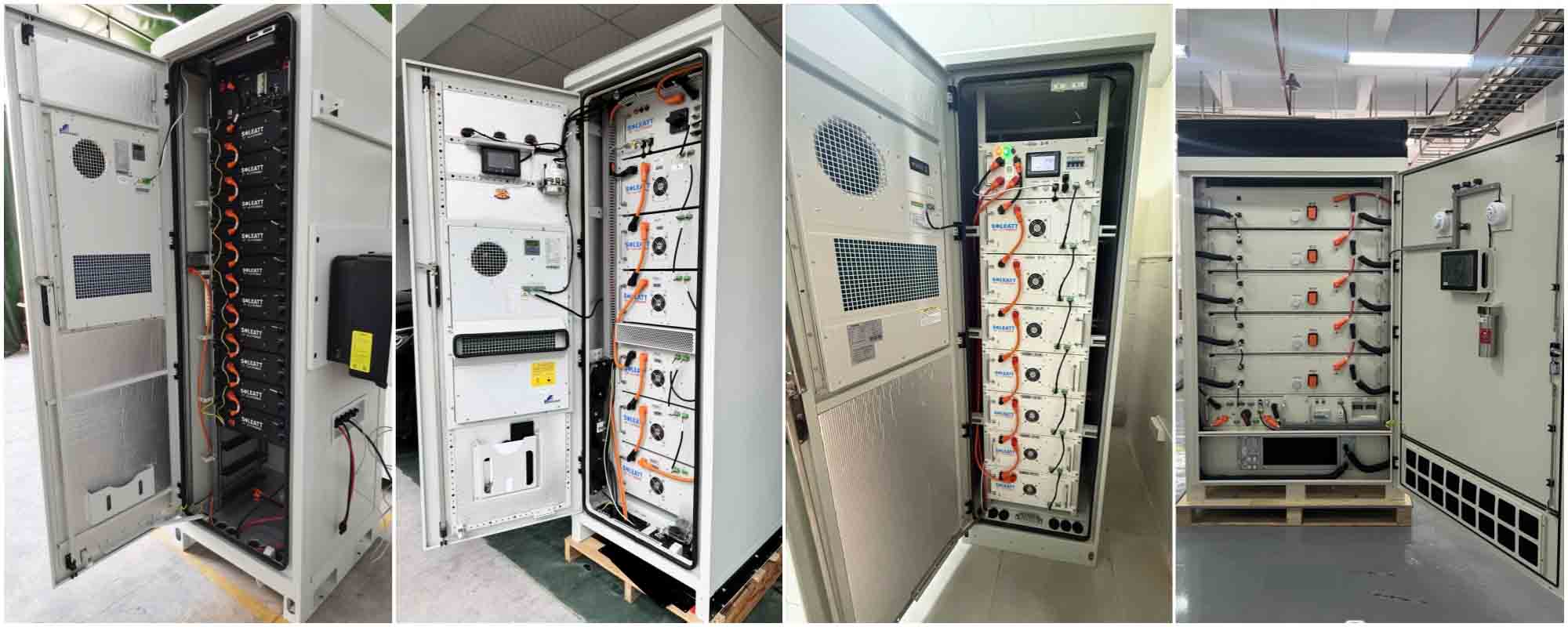

Energy-storage-battery-thermal-management in YouthPOWER commercial ESS application
Selecting the right battery thermal management system depends on several factors:
1. Application Scenario
- ① EVs → Prefer liquid cooling
- ② Residential ESS → Air cooling may suffice
- ③ Industrial ESS → Hybrid or liquid cooling
2. Battery Type
LiFePO4 batteries have better thermal stability but still require proper battery thermal management.
3. System Size & Energy Density
Higher density systems require more advanced battery cooling technologies.
4. Cost vs Performance
Balance initial investment with long-term efficiency and safety.
5. Environmental Conditions
Extreme climates demand more robust battery thermal management systems.
Challenges in Battery Thermal Management
Despite advancements, several challenges remain:
- ⭐ Thermal Runaway Prevention
- ⭐ Uniform Temperature Distribution
- ⭐ System Complexity and Cost
- ⭐ Space Constraints in Compact Designs
- ⭐ Energy Consumption of Cooling Systems
Designing an efficient btms battery thermal management system requires balancing all these factors.
Future Trends in Battery Cooling Technologies
The future of battery cooling technologies is evolving rapidly:
1. Smart BTMS with AI
AI-driven systems will optimize cooling dynamically based on usage patterns.
2. Advanced Materials
New materials with higher thermal conductivity will improve efficiency.
3. Immersion Cooling
Direct immersion of batteries in dielectric fluids is gaining attention.
4. Integration with BMS
Closer integration between BTMS and Battery Management Systems (BMS) will enhance performance.
5. Sustainable Cooling Solutions
Eco-friendly coolants and energy-efficient designs are becoming industry standards.
Conclusion
A battery thermal management system (BTMS) is no longer optional—it is essential for modern battery applications. From electric vehicles to energy storage systems (ESS), effective battery thermal management ensures safety, performance, and long-term reliability.
For businesses investing in lithium battery solutions, choosing the right battery thermal management systems can significantly impact system efficiency and lifecycle costs. As technology evolves, advanced BTMS solutions will continue to drive innovation in energy storage and mobility.
FAQ About Battery Thermal Management System
Q1. What industries benefit most from battery thermal management systems?
A1: Battery thermal management systems are widely used in solar energy storage, electric vehicles (EVs), telecommunications, data centers, and UPS systems. Any industry relying on stable and long-duration battery performance can benefit significantly from BTMS.
Q2. Does a battery thermal management system increase overall system cost?
A2: Yes, adding a BTMS can increase initial investment. However, it significantly reduces long-term costs by improving battery lifespan, minimizing failures, and lowering maintenance expenses—making it cost-effective for B2B energy projects.
Q3. Can BTMS be customized for different project sizes?
A3: Absolutely. Battery thermal management systems can be tailored based on project scale, environment, and energy demand. From small residential systems to large commercial energy storage solutions, customization ensures optimal performance.
Q4. How does climate impact BTMS design?
A4: Climate plays a key role in system design. Hot regions require stronger cooling solutions, while cold climates need efficient heating mechanisms. A well-designed BTMS considers local environmental conditions for optimal operation.
Q5. What certifications should a reliable BTMS meet?
A5: High-quality battery systems with integrated BTMS should comply with international standards such as UL, CE, and IEC certifications. These ensure safety, performance, and reliability for global B2B markets.
