As global demand for solar energy storage systems continues to grow, installers, distributors, and EPC contractors are increasingly comparing AC coupled vs DC coupled architectures. Choosing the right system is not just a technical decision—it directly impacts system efficiency, project cost, scalability, and long-term solar ROI.
In this guide, we will break down the difference between AC coupled and DC coupled systems, explain how each works, compare performance, and help you decide which solution is better for different solar + storage applications.
1. What Is an AC Coupled Solar System?
An AC coupled solar system is a configuration where the solar PV system and the battery storage system are connected on the AC (alternating current) side.
In this setup:
- ● Solar panels generate DC electricity
- ● A solar inverter converts DC → AC for home or grid use
- ● A separate AC coupled inverter (battery inverter) converts AC → DC to charge the battery
What is AC coupled solar system in simple terms?
It is a system where the battery is added after solar conversion to AC power, making it highly suitable for retrofitting existing solar installations.

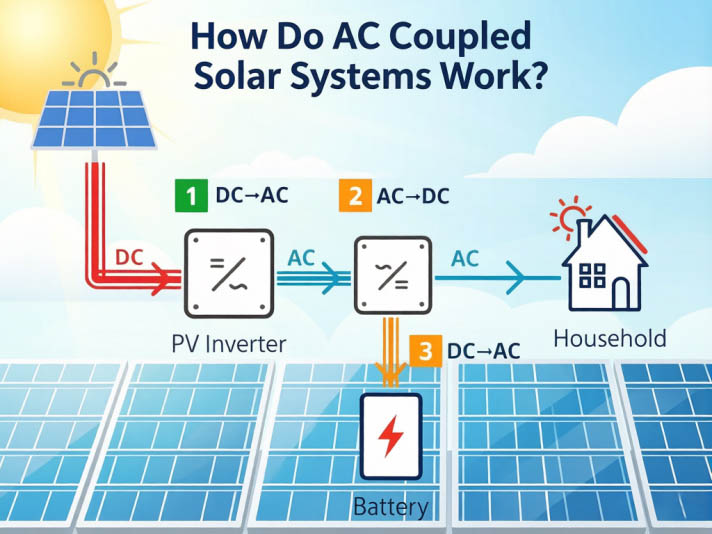

How Does AC Coupling Work in Solar System?
The workflow is:
1. Solar panels produce DC electricity
2. Grid-tied inverter converts DC → AC
3. AC power feeds home loads or grid
4. Excess AC power is directed to AC coupled battery system
5. Battery inverter converts AC → DC for storage
6. Stored energy is converted back to AC when needed
⭐ Key Component: AC coupled inverter (battery inverter)

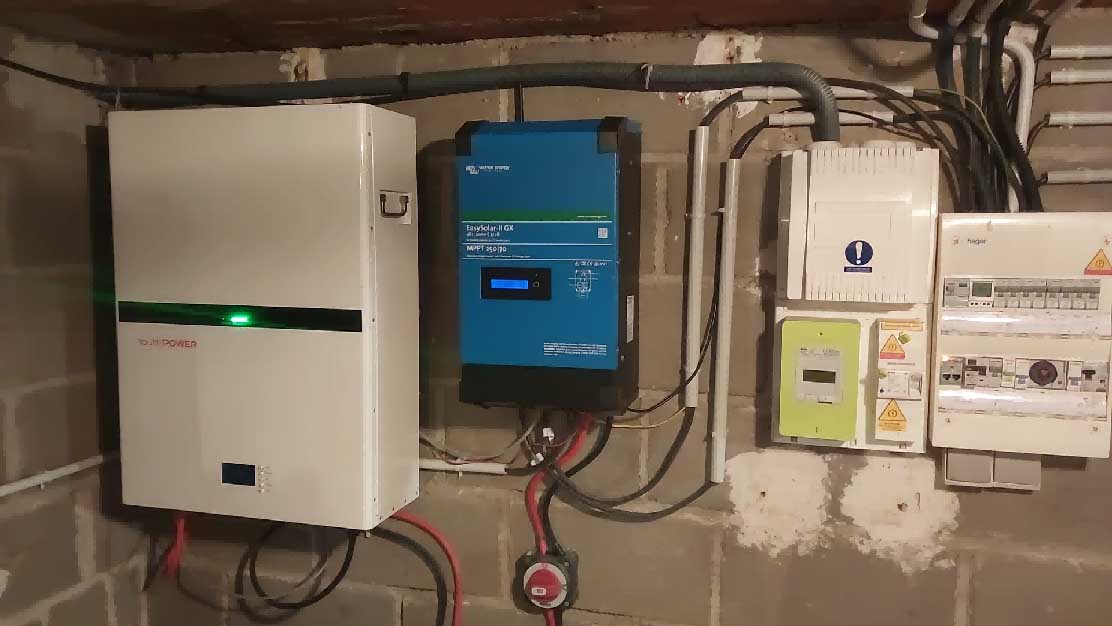

What Is AC Coupled Solar Energy Storage?
AC coupled solar energy storage refers to battery systems connected on the AC side of the inverter. These systems are commonly used in retrofit projects where solar panels are already installed.
Advantages:
- ✔ Easy to retrofit existing solar systems
- ✔ Flexible installation
- ✔ Compatible with multiple inverter brands
- ✔ Scalable for commercial energy storage systems (ESS)
Limitations:
- ● More energy conversion steps → slightly lower efficiency
- ● Higher system complexity
2. What Is a DC Coupled Solar System?
A DC coupled solar system connects solar panels and battery storage on the DC side, before inversion to AC.
In this setup:
- ● Solar panels generate DC electricity
- ● Power goes directly into a DC coupled hybrid inverter system
- ● Excess DC energy charges the battery directly
- ● A single inversion to AC powers loads

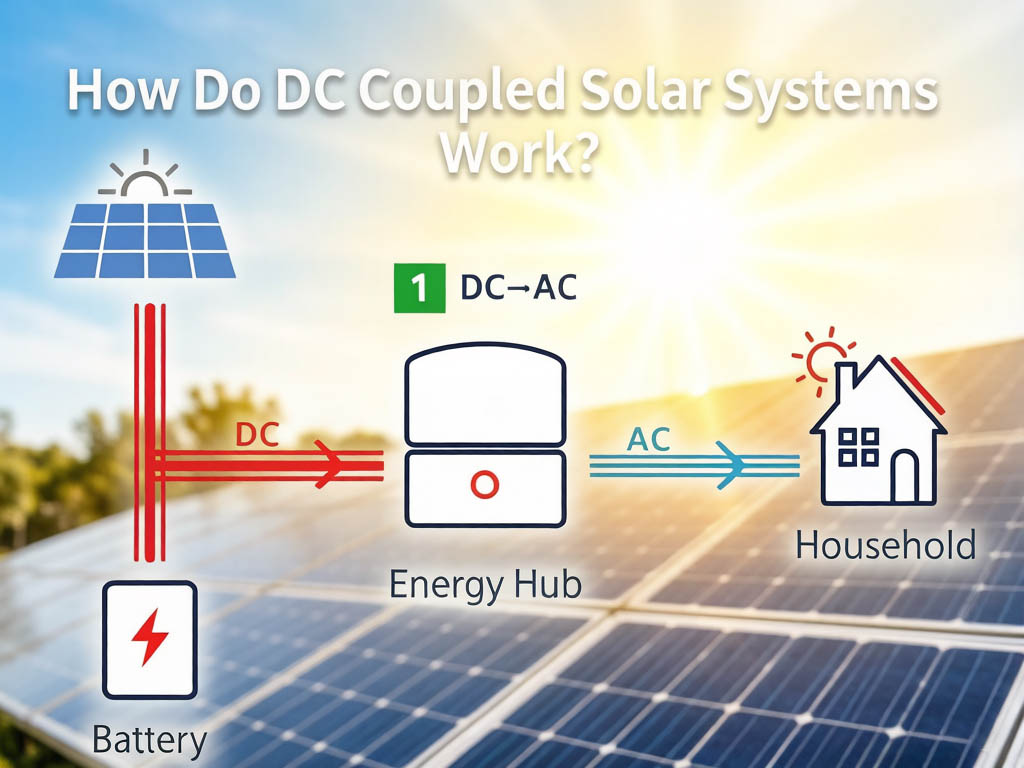

How Does DC Coupling Work with Batteries?
1. Solar panels generate DC electricity
2. DC power flows into a DC coupled inverter (hybrid inverter)
3. Electricity is either:
- ● Used immediately by loads
- ● Stored in battery as DC
4. Inverter converts DC → AC when needed
⭐ Key Component:
DC coupled inverter / hybrid inverter system

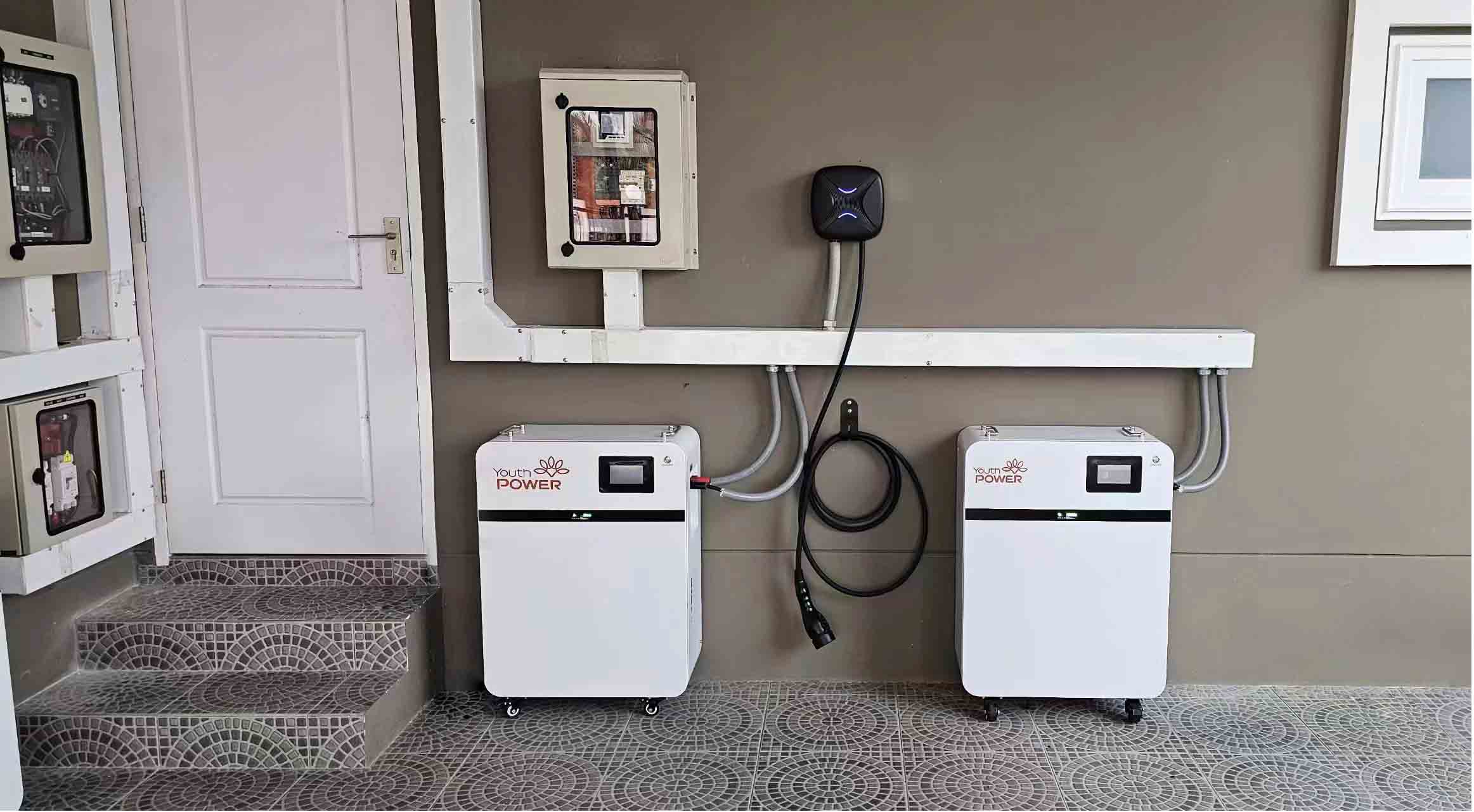

What Is DC Coupled Solar Energy Storage?
DC coupled solar energy storage allows solar energy to charge batteries directly without multiple conversions.
Advantages:
- ✔ Higher efficiency (fewer conversion losses)
- ✔ Better for new installations
- ✔ Lower energy waste
- ✔ Optimized for modern LiFePO4 solar battery systems
Limitations:
- ● Less flexible for retrofitting
- ● Requires compatible hybrid inverter
- ● System design must be planned from the beginning

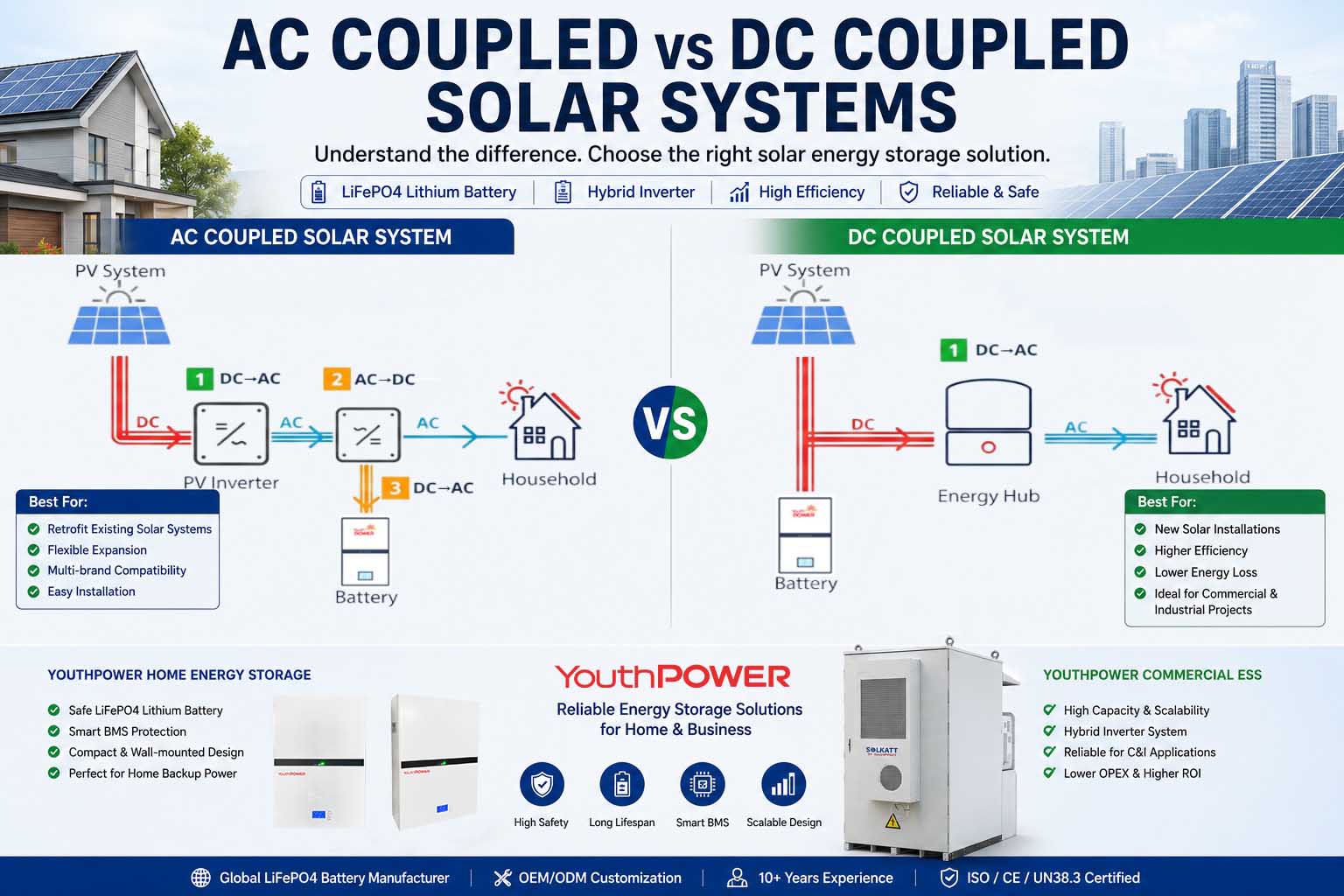

3. AC Coupled vs DC Coupled Solar Systems: Key Differences
Below is a clear comparison to understand the difference between AC coupled and DC coupled systems:
| Feature | AC Coupled Solar Systems | DC Coupled Solar Systems |
| System Architecture | Battery on AC side | Battery on DC side |
| Efficiency | Lower due to multiple conversions | Higher efficiency |
| Installation Type | Best for retrofit | Best for new systems |
| Equipment | Separate inverter + battery inverter | Hybrid inverter system |
| Flexibility | High | Moderate |
| Energy Loss | Higher | Lower |
| Cost (initial retrofit) | Lower for upgrades | Lower for new builds |
| Complexity | Higher | Simpler |
4. AC vs DC Solar Battery System Efficiency
When comparing AC vs DC coupling solar efficiency, DC coupling usually wins because:
- ● Fewer conversion steps (DC → AC → DC avoided)
- ● Reduced inverter losses
- ● Better battery charging efficiency
However, AC coupling vs DC coupling solar performance depends heavily on project type:
- ● Retrofit projects → AC coupling is more practical
- ● New solar + storage systems → DC coupling is more efficient
5. AC Coupled Inverter vs DC Coupled Inverter
AC Coupled Inverter
- ● Works on AC side of system
- ● Converts AC → DC for battery charging
- ● Ideal for adding storage to existing solar PV systems
DC Coupled Inverter (Hybrid Inverter)
- ● Combines solar and battery control
- ● Direct DC battery charging
- ● Higher system efficiency
- ● Common in modern hybrid inverter systems
6. AC Coupled Battery System vs DC Coupled Battery System
AC Coupled Battery System
- ● Flexible installation
- ● Works independently from solar inverter
- ● Good for upgrading old systems
- ● Slightly lower efficiency
DC Coupled Battery System
- ● Integrated with solar inverter
- ● Direct charging from PV
- ● Higher efficiency and lower cost per kWh stored
- ● Ideal for commercial ESS projects
7. LiFePO4 Batteries in AC and DC Coupled Systems
Modern LiFePO4 lithium batteries are widely used in both AC and DC coupled systems due to their:
- ✔ Long cycle life (6000+ cycles)
- ✔ High thermal stability
- ✔ Excellent safety performance
- ✔ High compatibility with ESS applications

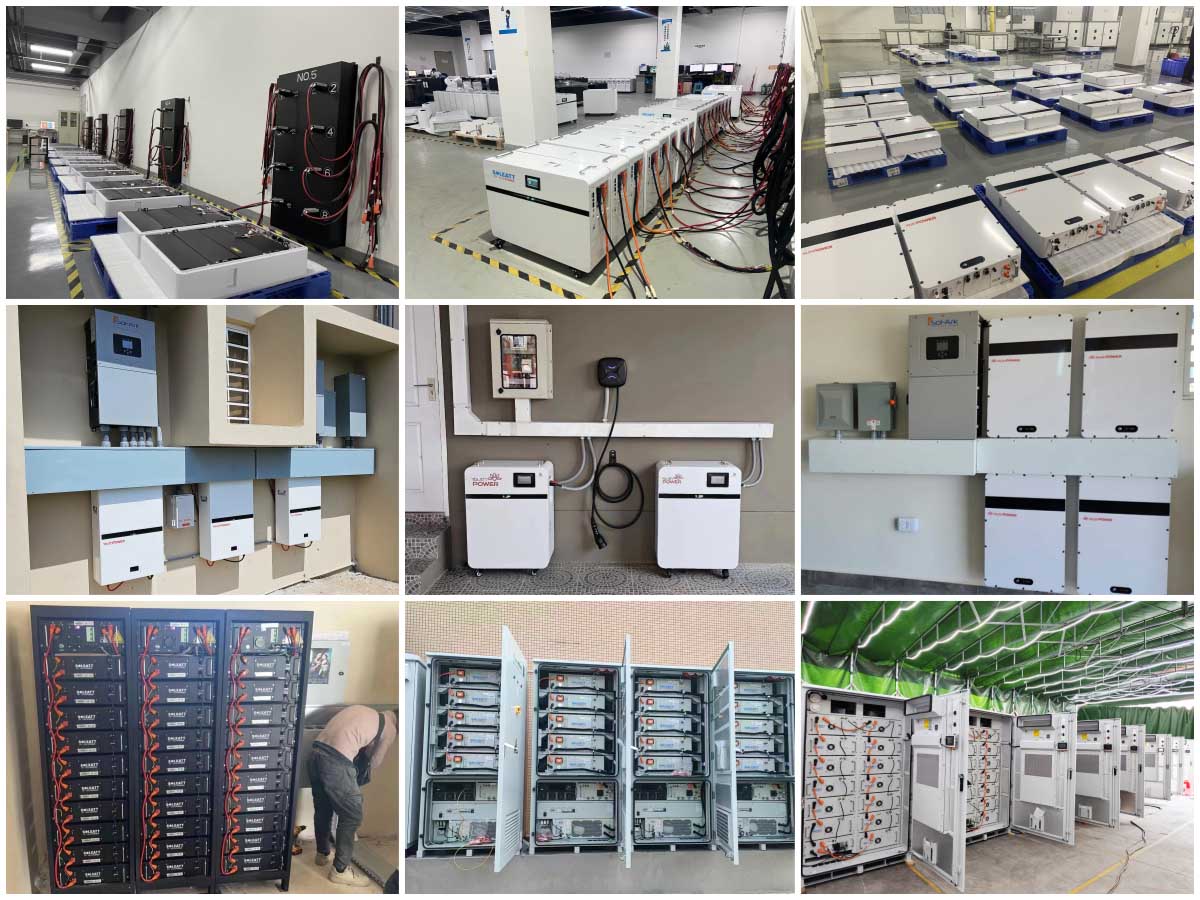

At YouthPOWER LiFePO4 Solar Battery Manufacturer, we specialize in advanced lithium battery storage solutions designed for both AC coupled solar energy storage systems and DC coupled solar energy storage systems.
Our battery systems are widely used in:
- ⭐ Residential solar storage
- ⭐ Commercial ESS projects
- ⭐ Industrial backup systems
- ⭐ Hybrid solar installations
8. Which Is Better: AC or DC Coupling Solar?
The answer depends on your application:
Choose AC Coupled Solar Systems if:
- >> You already have solar panels installed
- >> You are upgrading with storage
- >> You need flexible system expansion
- >> You want multi-brand compatibility
Choose DC Coupled Solar Systems if:
- >> You are building a new solar + storage project
- >> You want maximum efficiency
- >> You prefer integrated system design
- >> You are deploying commercial ESS projects
Simple conclusion:
- ⭐ AC coupling = retrofit flexibility
- ⭐ DC coupling = maximum efficiency
9. AC Coupled Solar Systems vs DC Coupled Solar Systems in B2B Projects
For EPC contractors, distributors, and energy developers, the decision impacts:
- ▲ Project ROI
- ▲ System complexity
- ▲ Installation labor cost
- ▲ Long-term maintenance
- ▲ Energy efficiency performance
B2B Recommendation:
- ▲ Residential retrofit market → AC coupled system
- ▲ Commercial & industrial ESS → DC coupled system
- ▲ Utility-scale hybrid storage → DC coupled hybrid inverter system preferred
10. YouthPOWER Energy Storage Solutions for AC & DC Coupling
As a professional energy storage systemmanufacturer, YouthPOWER provides:
- ● High-performance LiFePO4 solar battery systems
- ● Compatible ac coupled battery systems
- ● Optimized dc coupled battery storage solutions
- ● Custom OEM/ODM ESS solutions
Our products are designed to support both:
- ⭐ AC coupled inverter battery system integrations
- ⭐ DC coupled hybrid inverter systems
Whether your project requires retrofit flexibility or high-efficiency new installation, YouthPOWER provides scalable solutions for global solar energy storage markets.
Need a Reliable Solar Energy Storage Partner?
Whether you are developing residential solar battery storage projects or large-scale commercial ESS applications, choosing the right battery manufacturer is critical for long-term performance and ROI.
YouthPOWER provides high-quality LiFePO4 solar battery systems for both AC coupled solar systems and DC coupled solar systems, supporting OEM/ODM customization, hybrid inverter compatibility, and global project deployment.
For product catalogs, pricing, or technical support, contact our team at: sales@youth-power.net
11. Future of AC and DC Coupling in Solar Energy Storage
The industry trend is moving toward:
- ● Smarter hybrid inverter systems
- ● Higher DC coupling efficiency
- ● Integrated lithium battery storage
- ● AI-driven energy management systems
However, AC coupling will still play a key role in upgrading existing solar infrastructure worldwide.
Conclusion
Understanding AC coupling vs DC coupling solar systems is essential for designing efficient and cost-effective solar energy storage projects.
- ⭐ AC coupled solar systems are ideal for retrofit flexibility
- ⭐ DC coupled solar systems offer higher efficiency for new installations
Both systems play a critical role in the future of solar energy storage systems and lithium battery storage
Choosing the right architecture depends on your project goals, system design, and budget strategy.
FAQ About AC coupled and DC coupled systems
Q1. Can AC coupled and DC coupled systems work together?
A1: Yes. Hybrid setups can integrate both architectures depending on inverter compatibility and system design. Many modern ESS projects use mixed configurations for flexibility.
Q2. Is AC coupling or DC coupling better for off-grid solar systems?
A2: DC coupling is generally better for off-grid systems because it reduces energy loss and improves battery charging efficiency.
Q3. Do AC coupled systems waste more energy?
A3: Slightly, yes. Because energy is converted multiple times (DC → AC → DC), there are additional conversion losses compared to DC coupling.
Q4. Can I upgrade my existing solar system with DC coupling?
A4: Usually no. DC coupling requires a hybrid inverter system and is best installed in new solar + storage projects.
Q5. What type of battery works best with AC and DC coupled systems?
A5: LiFePO4 lithium batteries are the best choice due to their long lifespan, safety, and high compatibility with both AC and DC energy storage systems.
Q6. What is the lifespan difference between AC and DC coupled systems?
A6: The system lifespan is mainly determined by battery quality and inverter design rather than coupling type. High-quality LiFePO4 systems can last 10+ years.
Q7. Which is more cost-effective: AC or DC coupling?
A7: ● AC coupling is more cost-effective for retrofits
● DC coupling is more cost-effective for new installations due to higher efficiency and lower long-term energy loss
