As energy storage systems, lithium batteries, solar power solutions, and industrial automation technologies continue to evolve, reliable communication between devices has become more important than ever. Two of the most widely used communication protocols in battery management systems (BMS) and energy storage applications are CAN Bus and RS485.
If you are selecting a battery system, inverter, or energy storage solution, understanding the difference between CAN and RS485 can help you achieve better compatibility, monitoring, and system performance.
In this article, we will compare CAN vs RS485, explain how they work, and help you determine which communication protocol is best for your application.
What Is CAN Bus?
CAN (Controller Area Network) is a communication protocol originally developed by Bosch for automotive applications. It allows multiple devices to communicate with each other over a shared network without requiring a host computer.
Today, CAN Bus is widely used in:
- ⭐Lithium battery systems
- ⭐Solar energy storage systems
- ⭐Electric vehicles (EVs)
- ⭐Industrial automation
- ⭐Smart energy management systems
CAN communication enables real-time data exchange between batteries, inverters, chargers, and monitoring platforms.
Advantages of CAN Bus:
- √ Fast communication speed
- √ High reliability
- √ Excellent error detection and correction
- √ Supports complex multi-device networks
- √ Real-time data transmission
What Is RS485?
RS485 is a serial communication standard designed for long-distance and industrial communications. It allows multiple devices to communicate over a single pair of twisted wires.
RS485 is commonly found in:
- ♦ Battery energy storage systems (BESS)
- ♦ Solar inverters
- ♦ Industrial control equipment
- ♦ Smart meters
- ♦ Building automation systems
Unlike CAN, RS485 focuses on stable long-distance communication and is often used with protocols such as Modbus RTU.
Advantages of RS485:
- ♠ Long transmission distance
- ♠ Low installation cost
- ♠ Simple network structure
- ♠ Strong resistance to electrical noise
- ♠ Easy integration with industrial equipment
CAN vs RS485: Key Differences
The following table highlights the main differences between CAN and RS485.
| Feature | CAN Bus | RS485 |
| Communication Type | Protocol + Physical Layer | Physical Layer Standard |
| Data Speed | Up to 1 Mbps (traditional CAN) | Typically 9.6 kbps – 10 Mbps |
| Error Detection | Built-in advanced error handling | Depends on upper-layer protocol |
| Network Topology | Multi-master | Master-slave commonly used |
| Real-Time Performance | Excellent | Moderate |
| Communication Distance | Up to 40m at 1 Mbps | Up to 1200m |
| System Complexity | Higher | Simpler |
| Reliability | Very High | High |
| Typical Applications | EVs, lithium batteries, BMS | Solar systems, industrial controls |
CAN vs RS485 in Lithium Battery Systems

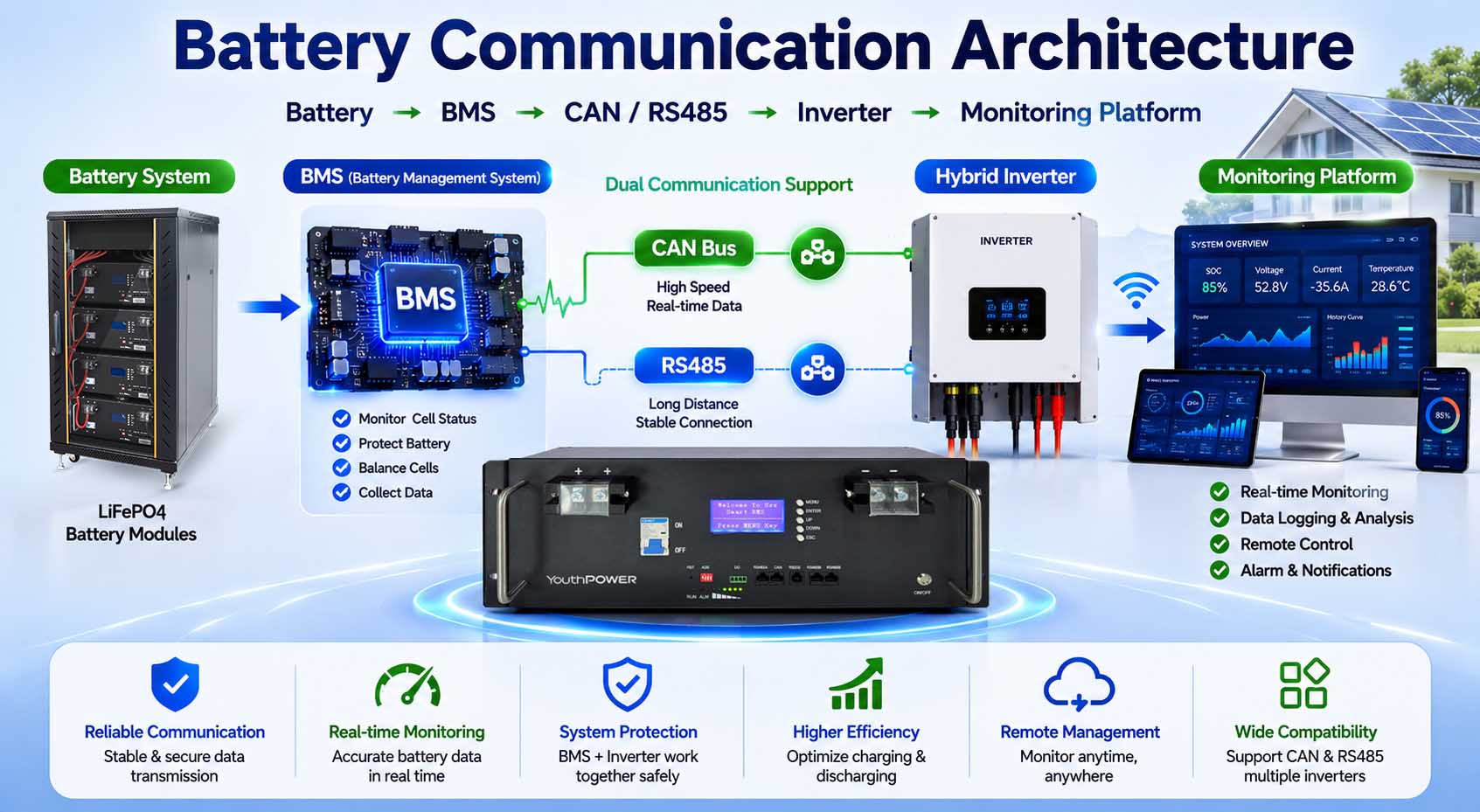

For lithium battery energy storage systems, communication between the battery management system and inverter is critical.
CAN Communication for Batteries
- ♥ CAN is often preferred when:
- ♥ Real-time battery monitoring is required
- ♥ Multiple battery modules are connected in parallel
- ♥ Advanced inverter integration is needed
- ♥ High system reliability is essential
Many leading inverter brands support CAN communication because it provides more detailed battery information, including:
- ♣ State of Charge (SOC)
- ♣ State of Health (SOH)
- ♣ Voltage
- ♣ Current
- ♣ Temperature
- ♣ Alarm status
RS485 Communication for Batteries
- ▲RS485 remains popular because it:
- ▲Supports longer cable runs
- ▲Is widely compatible with industrial devices
- ▲Offers cost-effective communication solutions
- ▲Works well with Modbus-based monitoring systems
For many residential and commercial solar storage installations, RS485 provides stable and dependable communication performance.
Which Is Better: CAN or RS485?
There is no absolute winner. The right choice depends on your specific application.
Choose CAN If:
- ♥ You need fast data exchange
- ♥ Your system requires real-time monitoring
- ♥ Multiple batteries operate in parallel
- ♥ You use advanced hybrid inverters
Choose RS485 If:
- ♥ Communication distance is long
- ♥ Your system uses Modbus RTU
- ♥ Simplicity and cost are priorities
- ♥ Industrial integration is required
In many modern energy storage systems, both communication interfaces are provided to maximize compatibility.
Why Communication Protocols Matter in Solar Energy Storage
Battery communication is no longer just an optional feature. It directly impacts:
- ♠ Charging efficiency
- ♠ Battery lifespan
- ♠ System safety
- ♠ Remote monitoring capabilities
- ♠ Smart energy management
A well-integrated communication protocol enables the inverter and battery to work together efficiently, helping users maximize solar energy utilization and reduce operating costs.
YouthPOWER Lithium Batteries Support Both CAN and RS485
At YouthPOWER, we understand that inverter compatibility is a major concern for solar installers, distributors, and project developers.

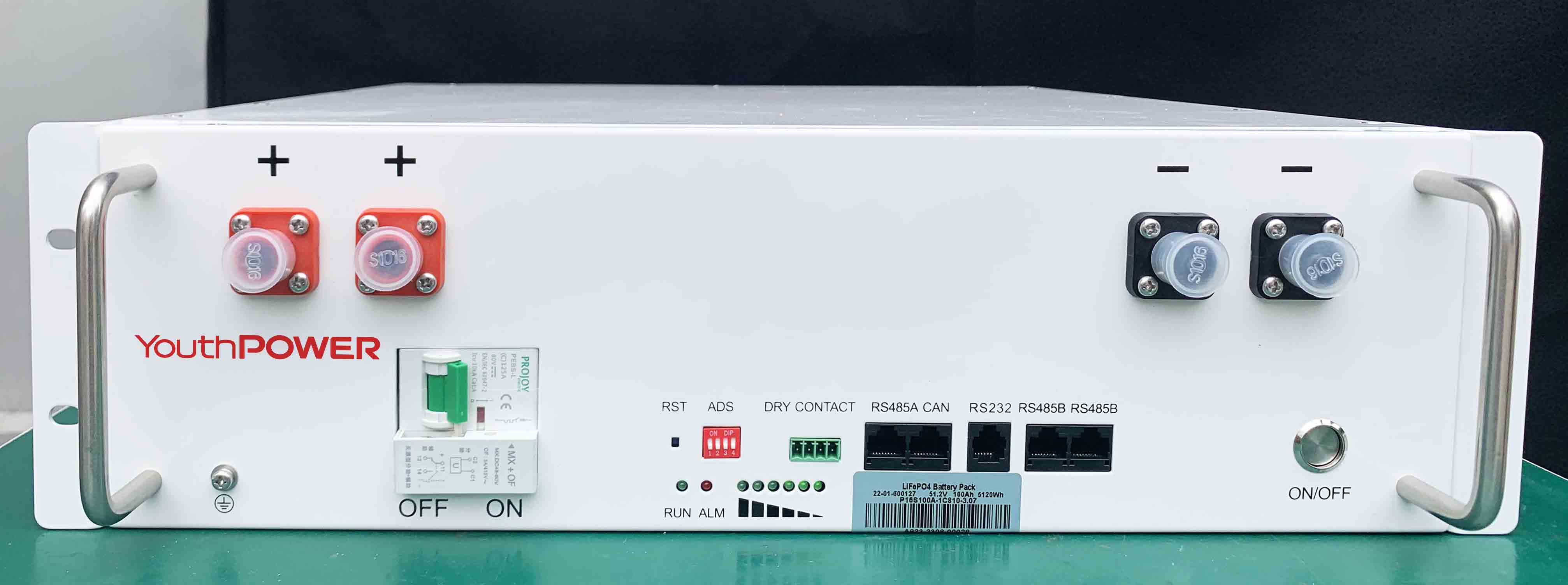

Our advanced LiFePO4 solar batteries are designed with both CAN Bus and RS485 communication protocols, ensuring seamless integration with many leading inverter brands worldwide.
Key benefits of YouthPOWER battery solutions include:
- ♣ High-performance LiFePO4 technology
- ♣ lntelligent Battery Management System (BMS)
Conclusion
Both CAN and RS485 play important roles in modern energy storage and lithium battery systems.
CAN offers superior real-time communication, advanced diagnostics, and excellent reliability, making it ideal for sophisticated battery and inverter integration.
RS485 provides long-distance communication, simplicity, and cost-effectiveness, making it a practical solution for many industrial and solar applications.
When selecting a battery energy storage solution, always ensure that the communication protocol matches your inverter and monitoring requirements. Choosing a battery that supports both CAN and RS485 provides maximum flexibility and future-proof compatibility.
FAQs About CAN Bus and RS485 Communication
Q1. Can CAN and RS485 be used simultaneously in the same battery system?
A1: Yes. Many modern lithium battery systems support both communication interfaces at the same time. This allows users to connect different monitoring devices, inverters, or energy management systems depending on project requirements.
Q2. Does communication protocol affect battery charging performance?
A2: Indirectly, yes. Accurate communication allows the inverter and battery management system to exchange operating data efficiently, which can improve charging accuracy, protection functions, and overall system performance.
Q3. Why do inverter manufacturers recommend specific communication protocols?
A3: Each inverter manufacturer develops software optimized for certain communication methods. Using the recommended protocol ensures better compatibility, more accurate battery data, and enhanced safety features.
Q4. Can communication failures damage a lithium battery?
A4: Communication failures typically do not damage the battery itself, but they may limit monitoring capabilities, reduce system efficiency, or trigger protection modes that affect charging and discharging operations.
Q5. How can I verify whether a battery is compatible with my inverter?
A5: Always review the battery's communication protocol specifications and compatibility list. Manufacturers like YouthPOWER provide compatibility information for supported inverter brands and communication standards before installation.
