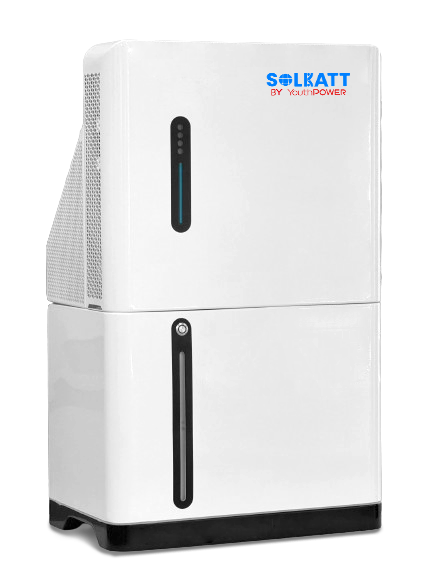

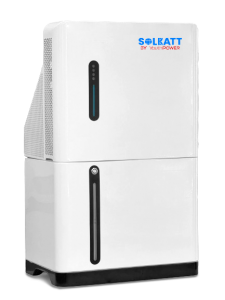

2.5KWH Balcony Solar Lithium Battery System
Zvigadzirwa Zvinotsanangurwa
| Bhatiri+hub | |
| Model Name | YP11-2KHH-hub |
| Battery Modules | 1 |
| Rated Energy | 2.5KW |
| Rated Battery Voltage | 51.2V |
| Max Kuchaja Simba kuBattery | 1600W |
| Max. PV Input Power (W) | 800W*2 |
| PV Input Voltage Range | 12-60V |
| Max. Simba reKubuda (W) | 800W*2 |
| Output Voltage Range | 18-55V |
| Kukurukurirana | RS485/CAN |
| Operating Temperature | -10-50 ℃ |
| IP Giredhi | IP65 |
| Certification | UN38.3/ IEC62619 (Ndiri kuenda) |
| ESS | |
| Model Name | YP12-2KHH |
| Battery Modules | 1 |
| Rated Energy | 2.5KW |
| Rated Battery Voltage | 51.2V |
| Inverter On-grid Simba | 800W |
| Nominal AC Voltage | 230 Vac 50HZ |
| Inverter Off-grid Simba | 1200W |
| Inverter Output Voltage | 230 Vac 50HZ |
| MPPT Inoshanda Voltage Range | 12-60V |
| Max.PV Input Power | 600W * 2 |
| Operating Temperature | -10-50 ℃ |
| IP Giredhi | IP65 |
| Certification | CE/ UN38.3/ IEC62619 (Ndiri kuenda) |

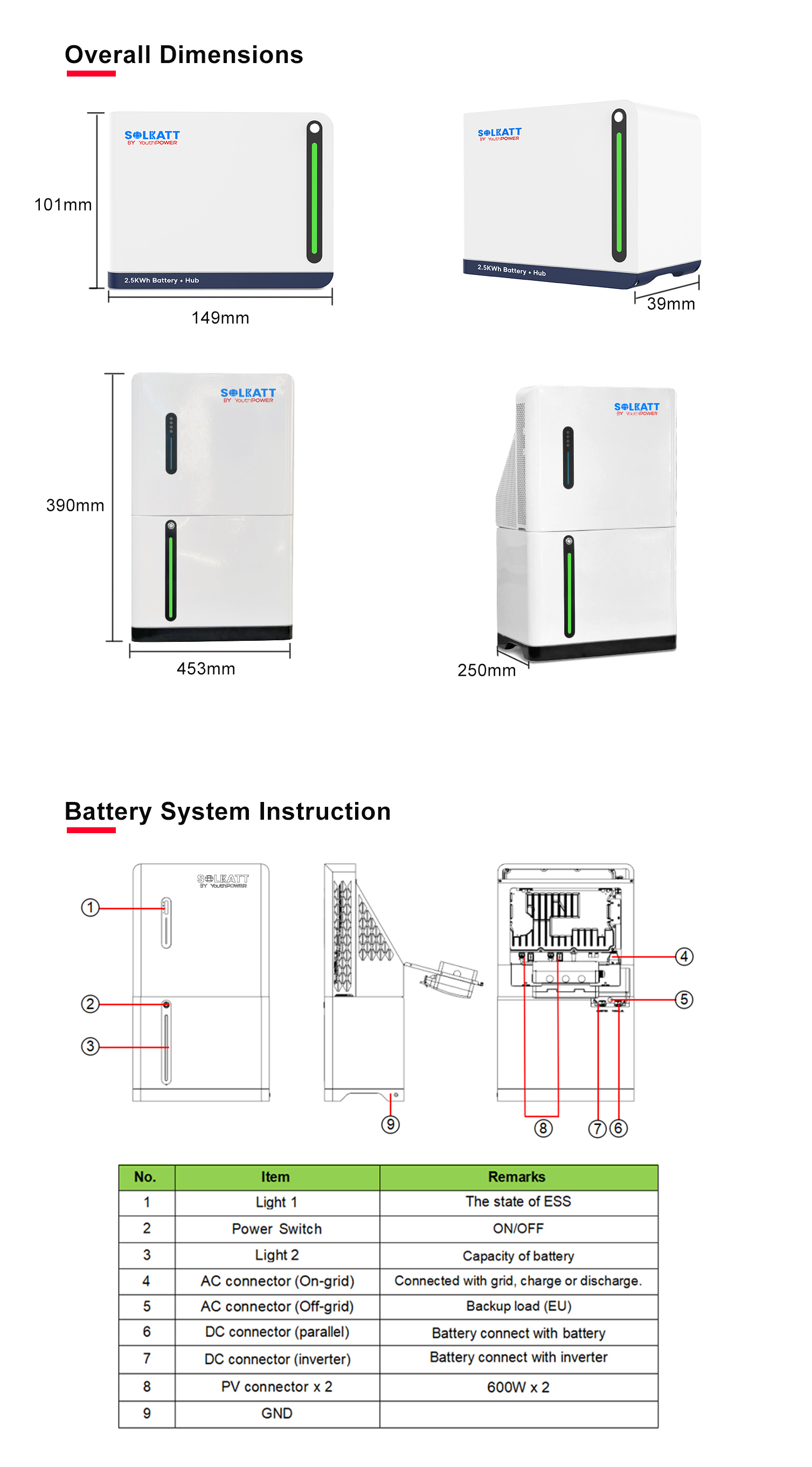

Product Details
Product Feature
Shandura balcony yako kuita yakangwara simba hub neiyi yekucheka-kumucheto balcony solar yekuchengetedza sisitimu 2.5KWH, yakagadzirirwa kubatanidza isina musono uye runyararo rwepfungwa:
Heano maitiro ayo akakosha:
- ➢Tsigiro ye AC yekubatanidza mu balcony micro-inverter system.
- ➢Yakakwira uye yakaderera voltage isolation topology, kuve nechokwadi chekuchengetedzwa kwemunhu.
- ➢Dhizaini isina fan yekushanda kwakanyarara.
- ➢UPS-chikamu chekuchinja nguva <10ms.
- ➢24-hoursintelligent simba management system
Kubatanidza kuchengetedza, kunyarara, uye smart automation, iyi plug-and-play balcony PV system inopa kusagadzikana-isina kudzokororwa simba - hapana kugadzirisa, hapana ruzha, simba rakavimbika reimba yako.

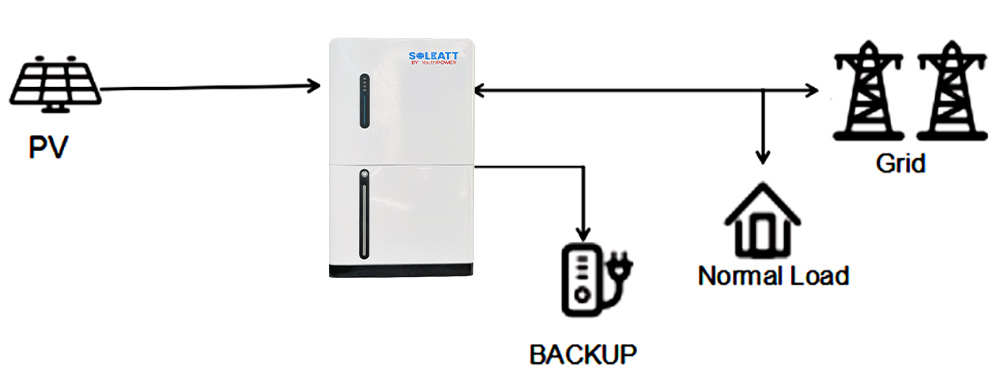

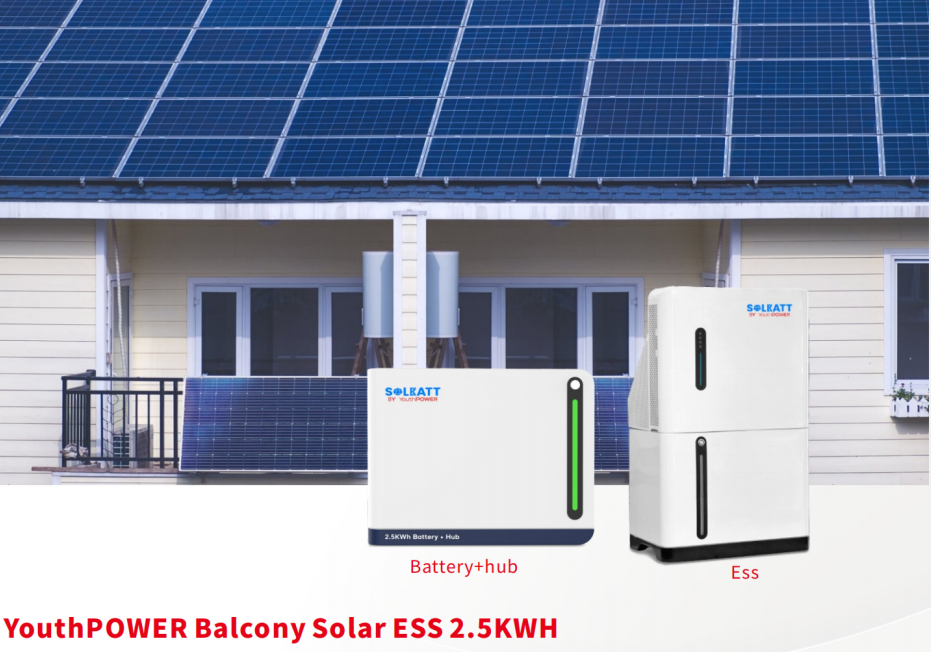

Product Applications
Iyi 2.5KWH lithium bhatiri balcony solar jenareta yakanakira dzimba kana compact dzimba! Magetsi emagetsi, maTV, nemidziyo midiki masikati kana husiku. Nakidzwa nekuchengetedzeka, eco-hushamwari simba rekuchengetedza uye isina musono backup panguva yekudzima-yakanakira kugara mumadhorobha.

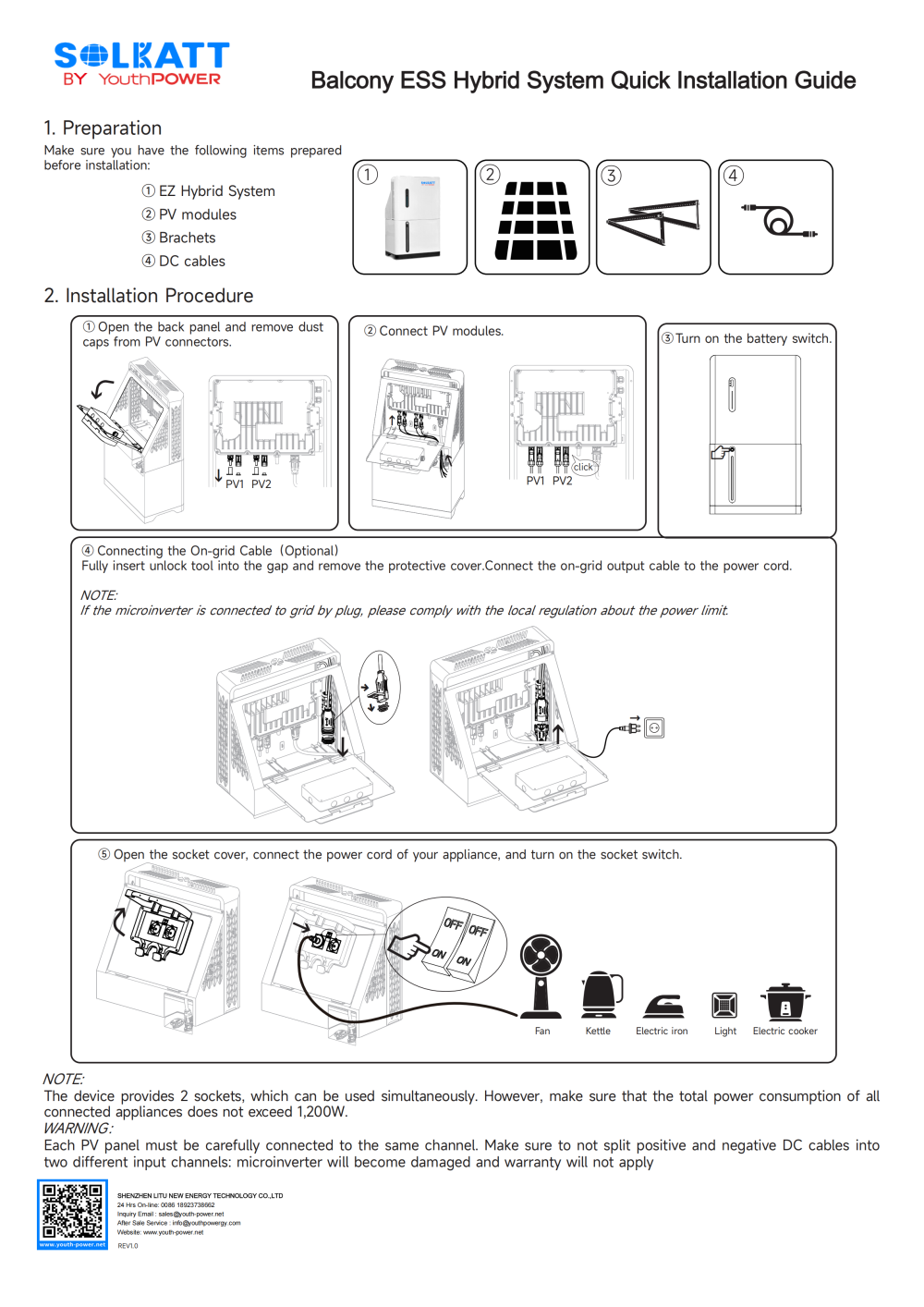

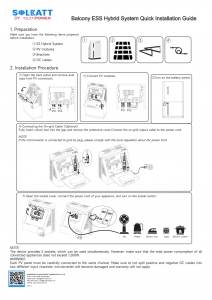

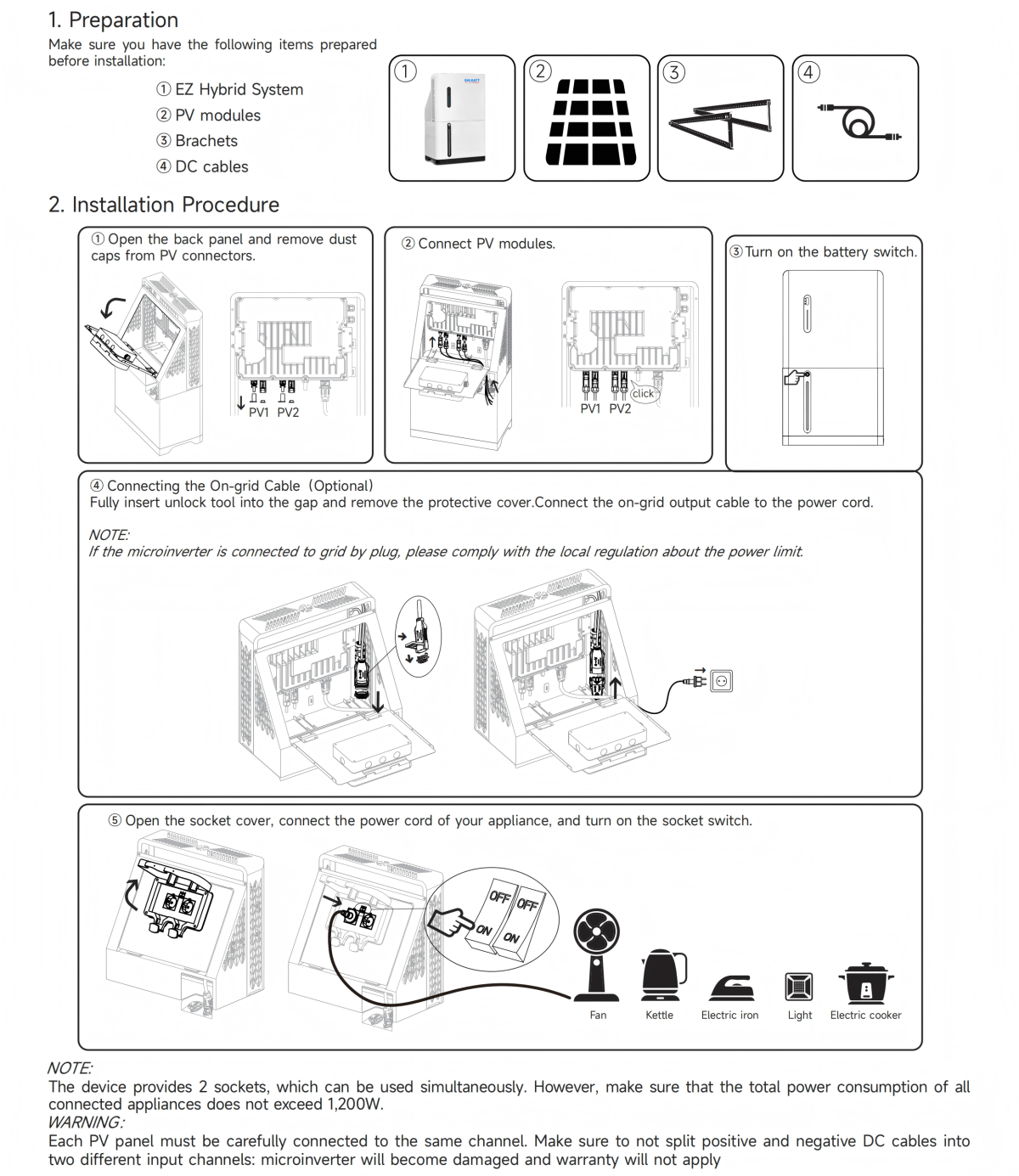

Mashandisiro

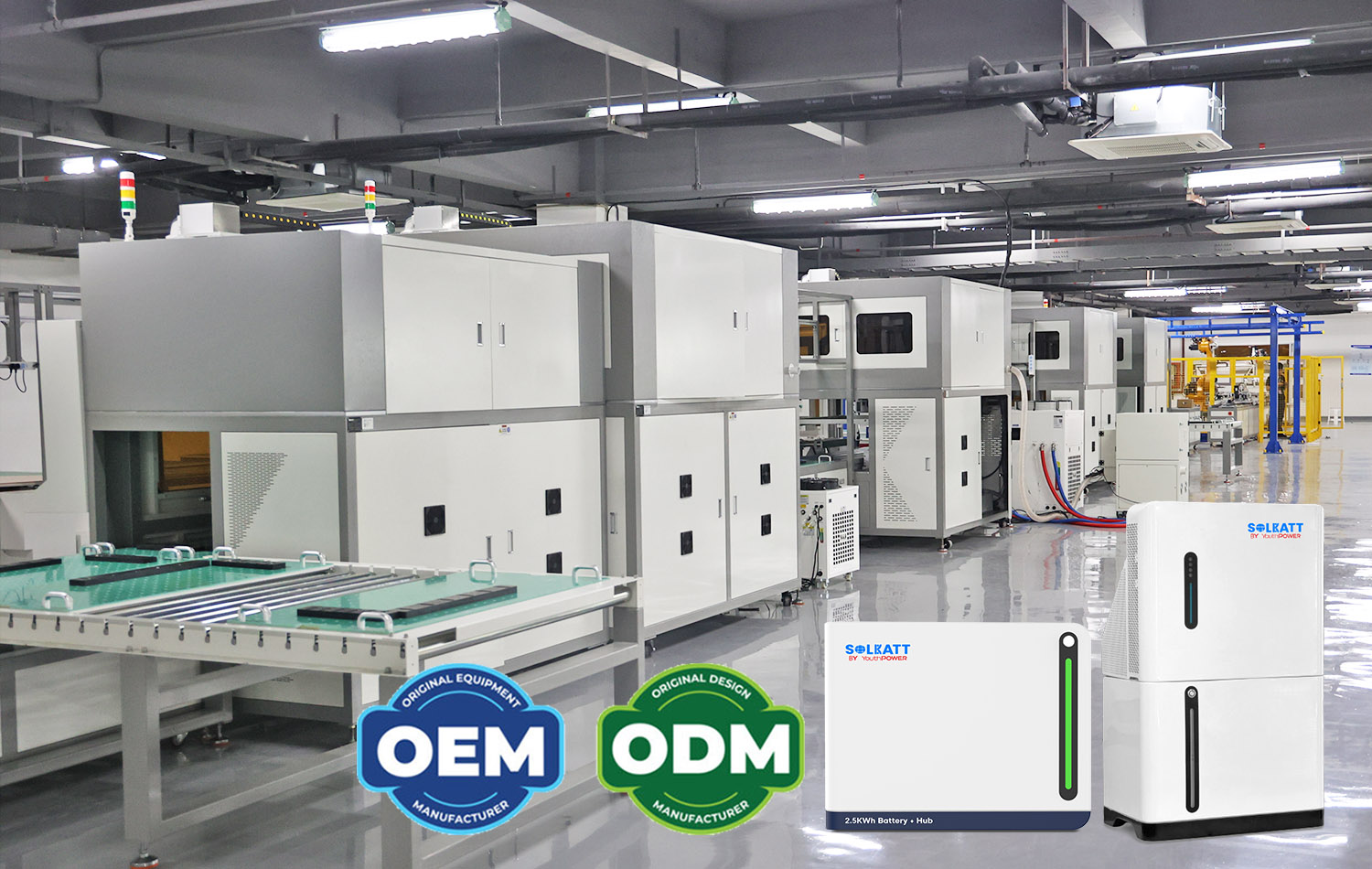

Vechidiki POWER OEM & ODM Battery Solution
Gadzirisa yako balcony simba rekuchengetedza system! Isu tinopa anochinjika OEM/ODM masevhisi-inogadzirisa bhatiri huwandu, dhizaini, uye branding kuti ikwane zvaunoda. Kurumidza kutendeuka, rutsigiro rwenyanzvi, uye mhinduro dzinotyisa dzedzimba, mabhizinesi, kana balcony solar system.
⭐Customized Logo
Gadzirisa iyo logo kune zvaunoda
⭐ Customized Ruvara
Ruvara uye maitiro ekugadzira
⭐ Customized Specification
Simba, charger, interfaces, nezvimwe.
⭐ Customized Mabasa
WiFi, Bluetooth, isina mvura, nezvimwe.
⭐ CustomizedPackaging
Data Sheet, Mushandisi Manual, nezvimwe
⭐ Regulatory Compliance
Tevedzera zvitupa zvemunyika
Product Certification
Iva nechokwadi nezvitupa zvepasi rose (CE,IEC62619,UN38.3)! Vechidiki POWER All-in-One 2.5KWH balcony simba rekuchengetedza sisitimu inosangana nekuchengetedzeka kwakasimba uye mhando zviyero, kuve nechokwadi chekushandisa simba rezuva risina kunetseka. Kuvimbika kwakasimbiswa kweplug-uye-kutamba kuve nyore uye kwenguva refu rugare rwepfungwa.
Product Packing
Iko kurongedza kwe2.5KWH Balcony Power Storage System inoratidzwa pazasi:
| Key Item | Quantity | Description | Tsanangudzo |
| ESS | 1 |
| / |
| AC Ckugona(gridhi) | 1 | | Tambo nhema, 2.5 mm2, kureba kwetambo 3.0m; rimwe divi rinokurumidza plug terminal, rimwe divi EU Power Plug. |
| Installation Guide | 1 | | / |
Vechidiki SIMBA 2.5KWH Balcony Solar ESS: UN.38.3-Certified Secure Global Delivery, Armored Packaging & Lightning Logistics, Simba Ragadzirira Kusunungura!

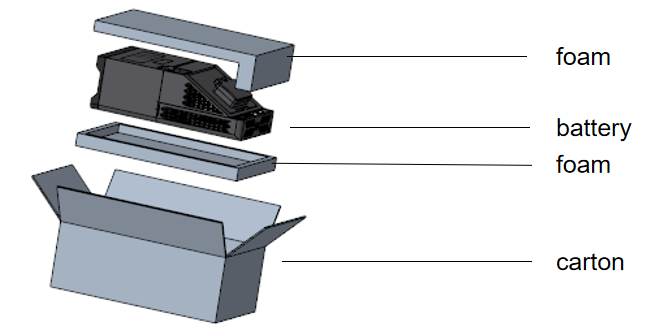

Zviyero zvekesi dzemapepa:827mm (L) x 490mm (W) x 320mm (H). Iyo yekurongedza maitiro inoratidzwa mumufananidzo unotevera:
Packing Details:
• 1unit/ kuchengetedza UN Bhokisi
•6 systems/ Pallet
