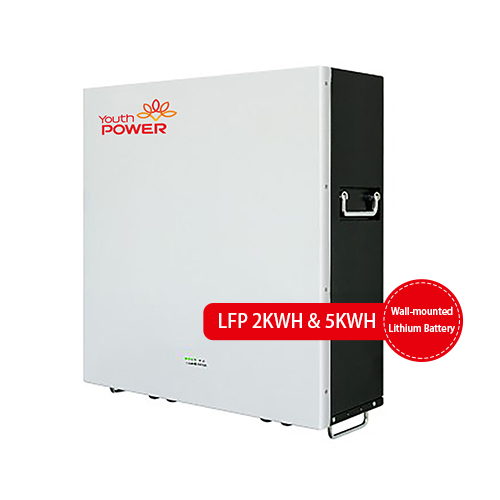

YouthPOWER Mini Wall Battery 2KWH & 5KWH
Product Specifications
Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?
Youth Power deep-cycle Lithium Ferro Phosphate (LFP) batteries are optimized with proprietary cell architecture, power electronics, BMS and assembly methods.
They are a drop-in replacement for lead acid batteries, and much safer, it is regarded as the best solar battery bank with affordable cost.
LFP is the safest, most environmentally chemistry available.
They are modular, lightweight and scalable for installations.
The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.
Enjoy easy installation and cost with Youth Power Home SOLAR WALL BATTERY.
We are always ready to supply the first-class products and meet the various needs of the customers.
| Model No. | YP4850-2.4KWH | YP48100-4.8KWH |
| Voltage | 48V | 48V |
| Combination | 15S1P | 15S2P |
| Capacity | 50AH | 100AH |
| Energy | 2.4KWH | 4.8KWH |
| Weight | 28kg | 55kg |
| Chemistry | Lithium Ferro Phosphate ( Lifepo4) Safest Lithium Ion, No fire risk | |
| BMS | Built - in Battery Management System | |
| Connectors | Waterproof connector | |

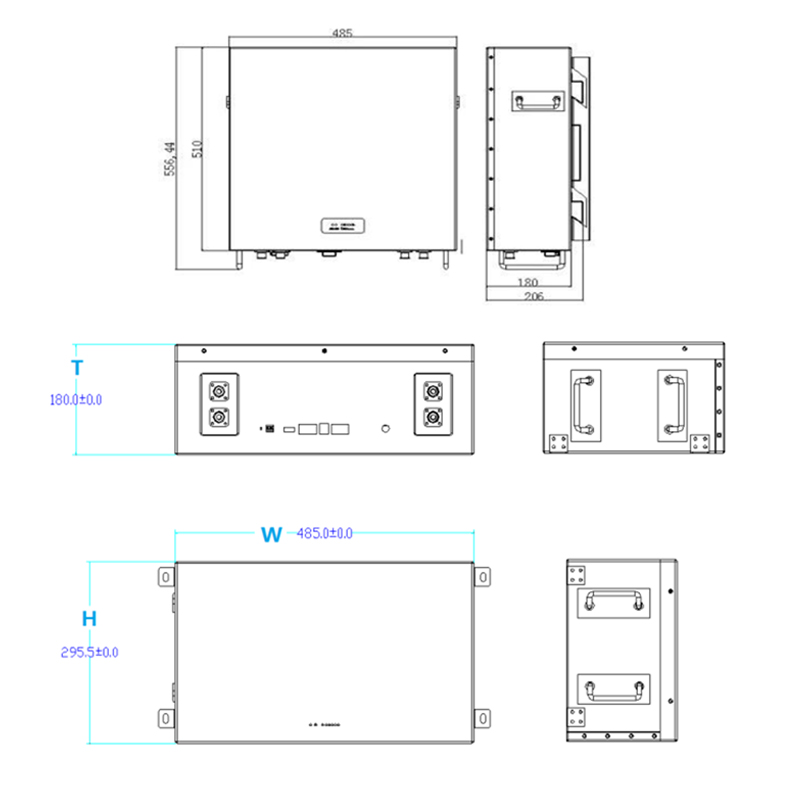

| Dimension | 485*295*180mm | 510*480*180mm |
| Cycles (80% DOD) | 6000 cycles | |
| Depeth of discharge | Upto 100% | |
| Life time | 10 years | |
| Standard charge | 15A | 20A |
| Standard discharge | 15A | 20A |
| Maximum continuous charge | 50A | 100A |
| Maximum continuous discharge | 50A | 100A |
| Operation temperature | Charge : 0-45℃, Discharge: -20~55℃ | |
| Storage Temperature | Keep at -20 to 65℃ | |
| Protection standard | Ip21 | |
| Cut off voltage | 54V | |
| Max.charging voltage | 40.5V | |
| Memory effect | None | |
| Maintenance | Maintenance free | |
| Compatibility | Compatible with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio. |
|
| Warranty Period | 5-10 Years | |
| Remarks | Youth Power battery BMS must be wired in parallel only. Wiring in series will void the warranty. |
|
Product Feature
01. Long cycle life - product life expectancy of 15-20 years
02. Modular system allows storage capactiy to be easily expandable as power needs increase.
03. Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04. Operates at unparalleled 98% efficiency for more than 5000 cycles.
05. Can be rack mounted or wall mounted in a dead space area of your home / business.
06. Offer up to 100% depeth of discharge.
07. Non-toxic and non-hazardous recylcable materials - recycle at end of life.
Product Application
Product Certification
LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

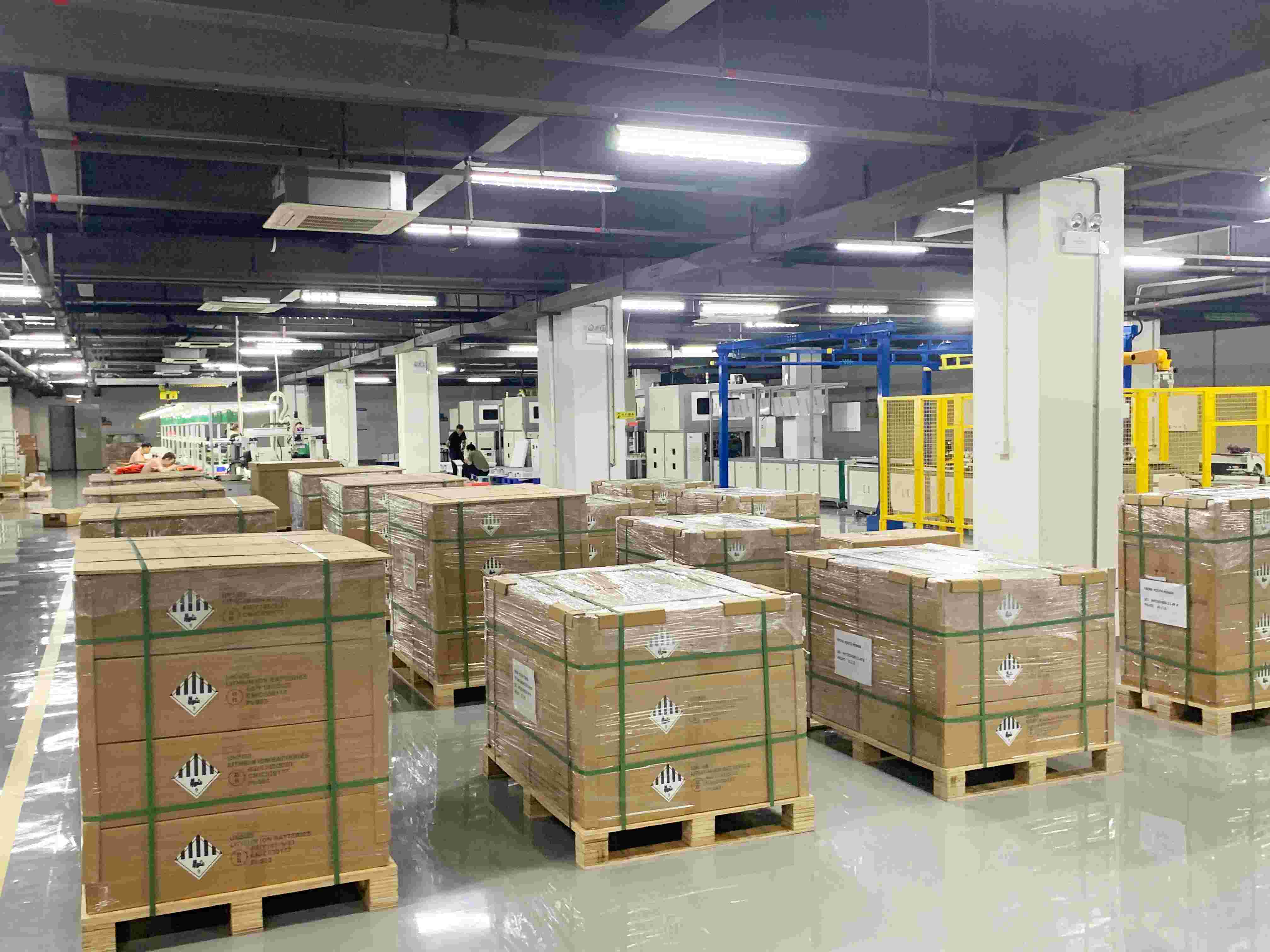

Product Packing
24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.
Our other solar battery series：High voltage batteries All In One ESS.
• 5.1 PC / safety UN Box
• 12 Piece / Pallet
• 20' container : Total about 140 units
• 40' container : Total about 250 units
Lithium-Ion Rechargeable Battery
Projects
FAQ
What’s the battery capacity and power?
Capacity is the total amount of electricity that a solar battery can store, measured in kilowatt-hours (kWh). Most home solar batteries are designed to be “stackable,” which means that you can include multiple batteries with your solar-plus-storage system to get extra capacity.

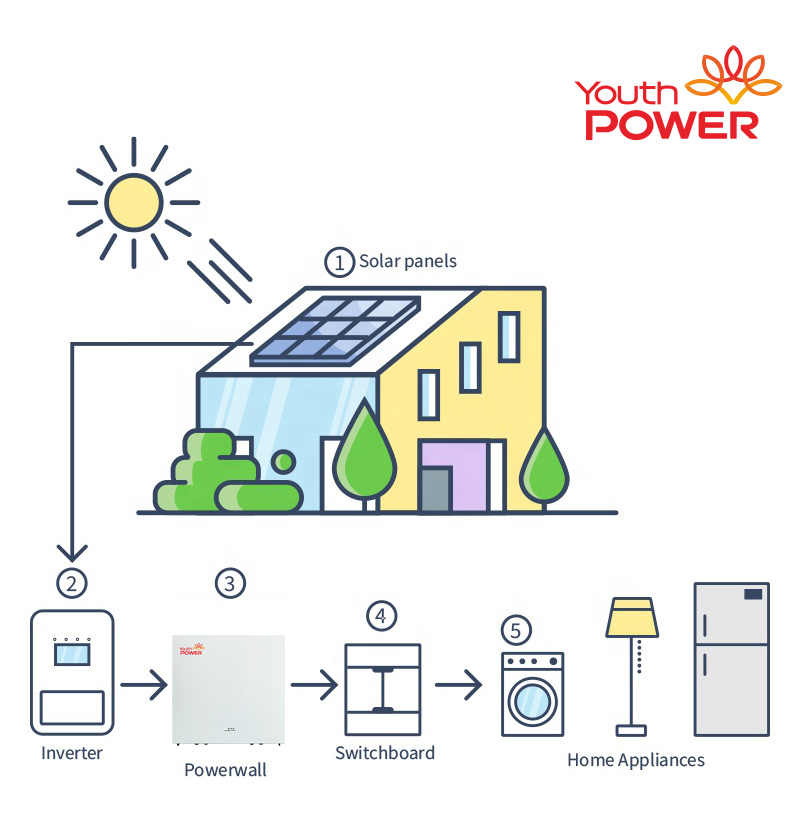

How Does Solar Battery Storage Work?
A solar battery is a battery that stores energy from a solar PV system when panels absorb energy from the sun and convert it to electricity through the inverter for your home to use.A battery is an additional component which allows store energy produced from your panels and use the energy at a later time, such as in the evening when your panels are no longer producing energy.
