Brick solar storage power ESS 51.2V 5KWH 100AH lithium battery

Power storage brick is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down.
Unlike gasoline generators,Power storage brick keeps your lights on and phones charged without upkeep, fuel or noise.
Pair with solar and recharge with sunlight to keep your appliances running for days.

Ask For Price Download

Product Detail

Product Tags

Product Specifications

Power storage brick is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down.
Unlike gasoline generators,Power storage brick keeps your lights on and phones charged without upkeep, fuel or noise.
Pair with solar and recharge with sunlight to keep your appliances running for days.
Power storage brick reduces your reliance on the grid by storing your solar energy for Power storage brick is a battery that stores energy,
detects outages and automatically becomes your home’s energy source when the grid goes down.

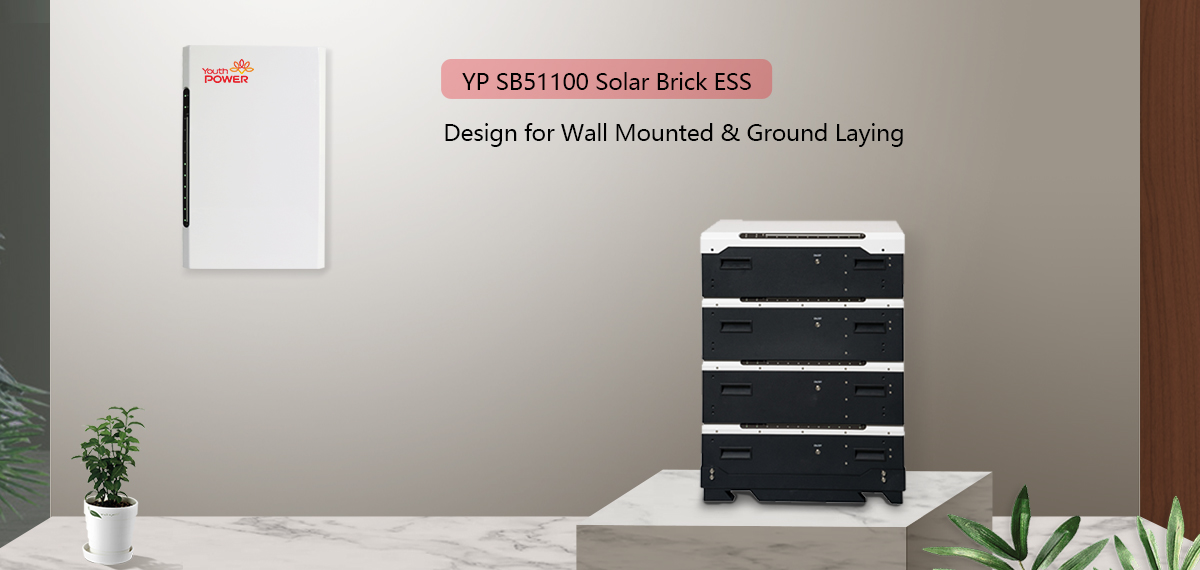

Available both wall mounted design and brick ground laying design!
Suggest parrallel connection / brick on grid with 6 units max for 30KWH system 51.2V.

Model	YP SB51100	YP SB51200	YP SB51300	YP SB51400
Battery
Normal Voltage	51.2V
Typical Capacity	100AH	200AH	300AH	400AH
Energy	5KWH	10KWH	15KWH	20KWH
Cycle Life	Over 5000 cycles @ 80% DOD, 0.5C, Over 4000 cycles @95% DOD, 0.5C
Desinge Life	10 design life
Charge Cut-Off Voltage	57V
Discharge Cut-Off Voltage	43.2V
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	100A
Charge Temperature Range	0-60 Degree
Discharge Temperature Range	‘-20-60 Degre
System Parameters
Dimension :	745415590mm	930415590mm	1120415590mm	1300415590mm
Net Weight ( KG )	45kg	96kg	142kg	180kg
Protocol ( Optional )	RS232-PC, RS485( B ) - PC, RS485 ( A ) - Inverter, CANBUS-Inverter
Certification	IEC62619, UN38.3, MSDS, UL1642

Product Feature

01 Long cycle life - product life expectancy of 15-20 years.
02 Modular system allows storage capactiy to be easily expandable as power needs increase.
03 Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04 Operates at unparalleled 98% efficiency for more than 5000 cycles.
05 Can be rack mounted or wall mounted in a dead space area of your home / business.
06 Offer up to 100% depeth of discharge.
07 Non-toxic and non-hazardous recylcable materials - recycle at end of life.

Product Application

Product Certification

LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

Product Packing

24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.
