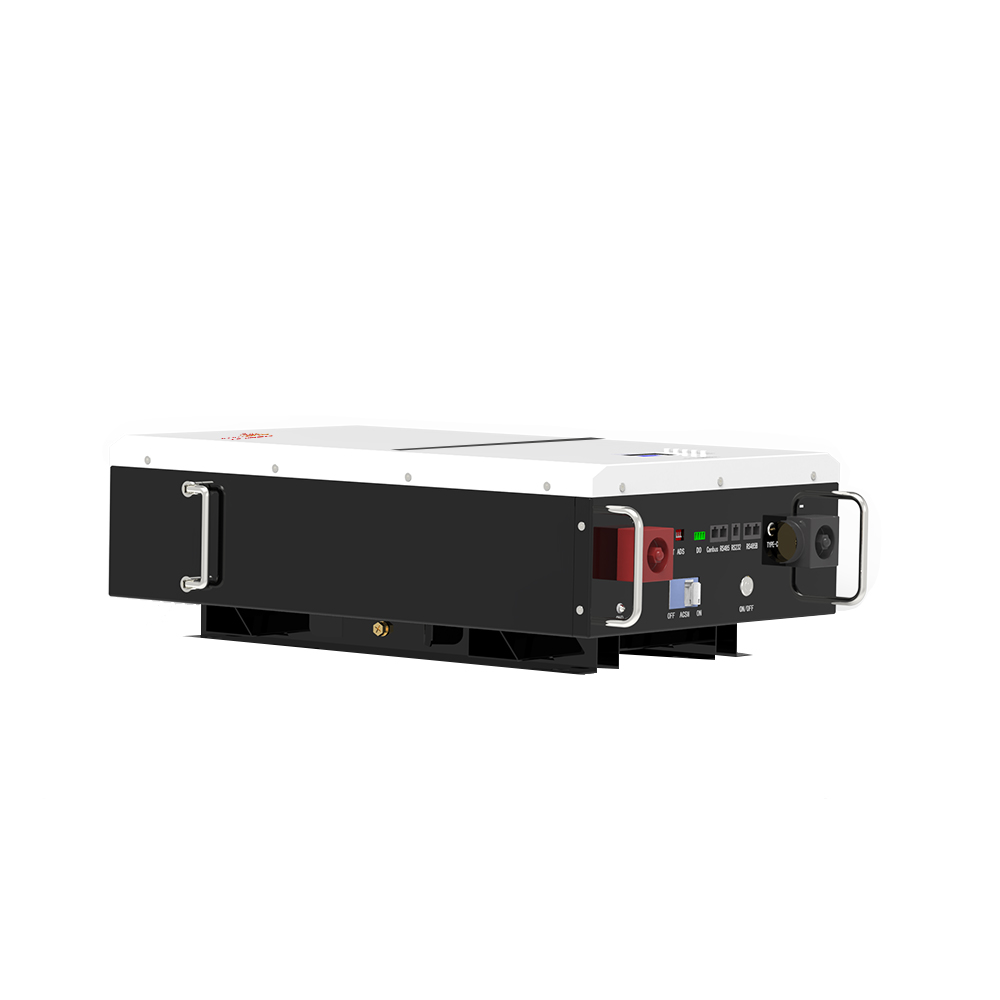

YouthPOWER Home 5KWH Solar Powerwall Battery

Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your solar home system?

In our line of Lithium Ferro Phosphate (LFP) batteries, we have the perfect solution for you. With a drop-in replacement for lead acid batteries and much lower weight, these are simply the best solar battery bank with affordable cost.

Ask For Price Download

Product Detail

Product Tags

Product Specifications

Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your solar home system?

LFP is the safest, most environmentally friendly chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

Enjoy easy installation and cost with Youth Power Home SOLAR WALL BATTERY, We are always ready to supply the first-class products and meet the various needs of the customers.

The power home solar battery 48V 100ah solar power system is a complete solar energy system for your home, with a solar panel, an inverter and a battery. The battery can store energy generated by the solar panel in order to provide electricity when needed.

With this system you can run lights, fans and other devices in your home even when there is no electricity supply.

Model No	YP48100-4.8KWH V2 YP51100-5.12KWH V2	YP48150-7.2KWH V2 YP51150-7.68KWH V2	YP48200-9.6KWH V2 YP51200-10.24KWH V2
Nominal Parameters
Voltage	48 V/51.2V	48 V/51.2V	48 V/51.2 V
Capacity	100 Ah	150 Ah	200Ah
Energy	4.8 /5.12 KwH	7.2/7.68 KwH	9.6 /10.24 KwH

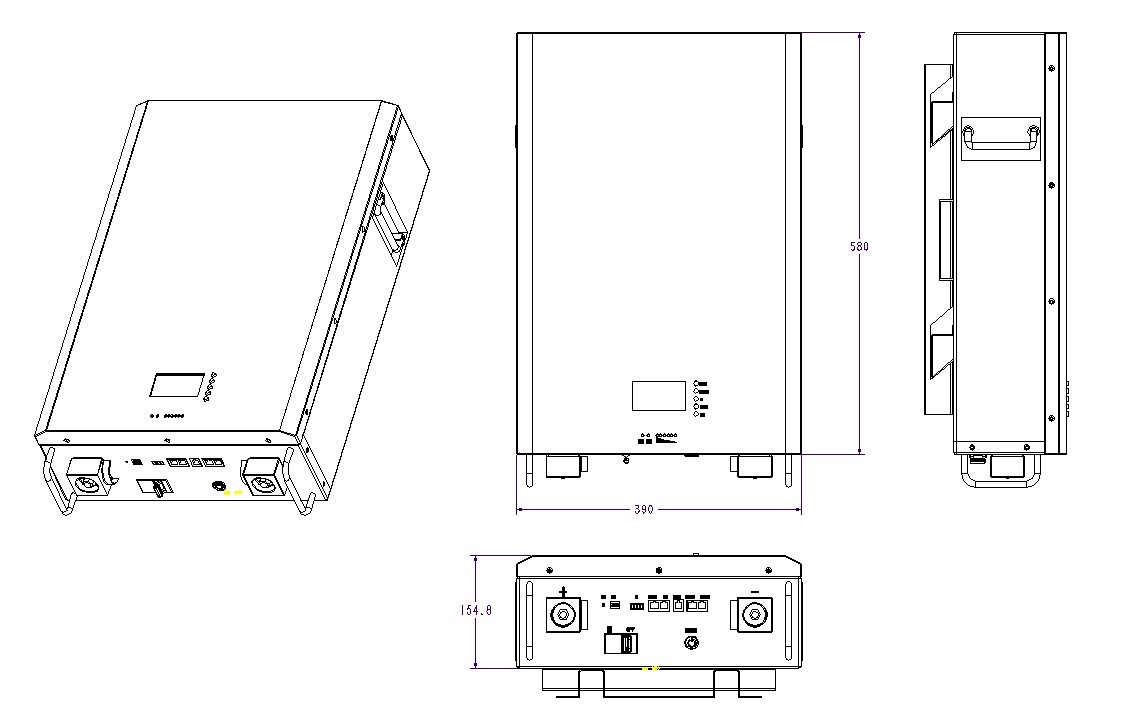

Dimensions (L x W x H)	740530200mm	740530200mm	740530200mm
Weight	66/70kg	83/90 kg	101/110 kg
Basic Parameters
Life time(25℃)	10 Years
Life cycles(80% DOD, 25℃)	6000 Cycles
Storage time & temperature	5 months @ 25℃; 3 months @ 35℃; 1 month @ 45℃
Lithium Battery Standard	UL1642(Cell), IEC62619.UN38.3, MSDS ,CE,EMC
Enclosure protection rating	IP21
Electrical Parameters
Operation voltage	48 Vdc
Max. charging voltage	54 Vdc
Cut-off Discharge Voltage	42 Vdc
Max. charging and discharging current	100A(4800W)	120A(5760W)	120A(5760W)
Compatibility	Compatible with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio.
Warranty Period	5-10 Years
Remarks	Youth Power wall battery BMS must be wired in parallel only. Wiring in series will void the warranty.
Finger Touch Version	Available only for 51.2V 200AH, 200A BMS

Product Feature

01. Long cycle life - product life expectancy of 15-20 years
02. Modular system allows storage capactiy to be easily expandable as power needs increase.
03. Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04. Operates at unparalleled 98% efficiency for more than 5000 cycles.

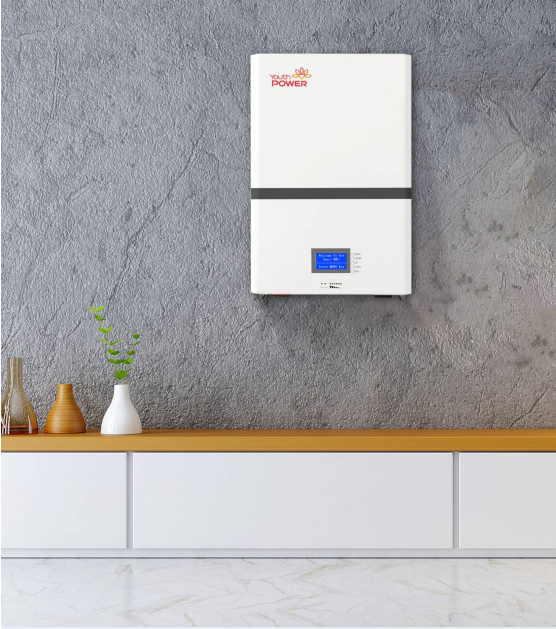

05. Can be rack mounted or wall mounted in a dead space area of your home / business.
06. Offer up to 100% depeth of discharge.
07. Non-toxic and non-hazardous recylcable materials - recycle at end of life.

Product Application

01 Long cycle life - product life expectancy of 15-20 years.
02 Modular system allows storage capactiy to be easily expandable as power needs increase.
03 Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04 Operates at unparalleled 98% efficiency for more than 5000 cycles.
05 Can be rack mounted or wall mounted in a dead space area of your home / business.
06 Offer up to 100% depeth of discharge.
07 Non-toxic and non-hazardous recylcable materials - recycle at end of life.

Product Certification

LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

Product Packing

24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.
