YouthPOWER Powerwall Battery 5 & 10KWH
Product Specifications
Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?
Youth Power uses lithium-iron phosphate battery technology, reliable, safest and longest lasting technology.
It is regarded as the best solar battery bank with affordable cost.
The 15kwh power reserve wall battery storage has 15kwh useable capaicty and deliveries max. 10.24kw of continuos power with longer lifespan.
| Battery Specifications | |||
| Model No. | YP48100-4.8KW V1 YP51100-5.12KW V1 | YP48150-7.2KW V1 YP51150-7.68KW V1 | YP48200-9.6KW V1 YP51200-10.24KW V1 |
| Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V |
| Combination | 15S2P/16S2P | 15S3P/16S3P | 15S4P/16S4P |
| Capacity | 100AH | 150AH | 200AH |
| Energy | 4.8KWH/5.12KWH | 7.2KWH/7.68KWH | 9.6KWH/10.24KWH |
| Weight | 58.5 /68 kg | 75.0 / 85 kg | 96.5/110 kg |
| Chemistry | Lithium Ferro Phosphate” (Lifepo4 ) Safest Lithium ion, No fire risk | ||
| BMS | Built - in Battery Management System | ||
| Connectors | Waterproof connector | ||

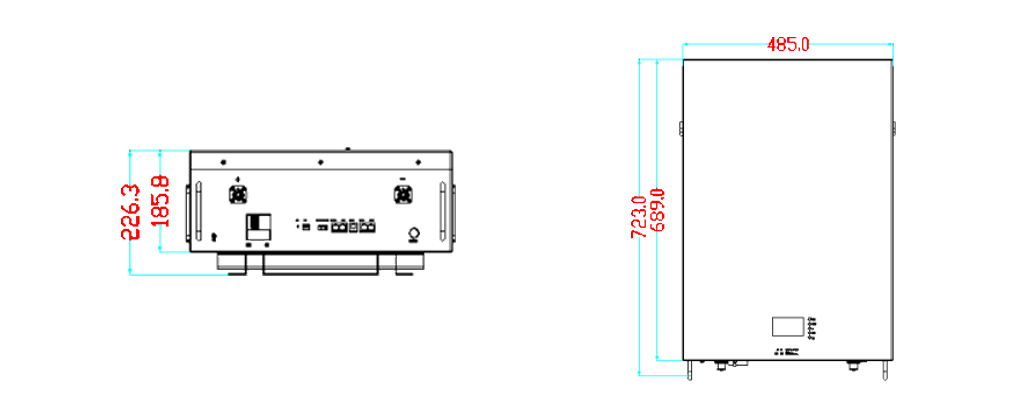

| Dimension | 680*485*180mm | ||
| Cycles (80% DOD) | 6000 cycles | ||
| Depeth of discharge | Upto 100% | ||
| Life time | 10 years | ||
| Standard charge | 20A | ||
| Storage discharge | 20A | ||
| Maximum continuous charge | 100A | ||
| Maximum continuous discharge | 100A | ||
| Operation temperature | Charge: 0-45℃，Discharge:-20~55℃ | ||
| Storage temperature | Keep at -20 to 65℃ | ||
| Protection standard | Ip21 | ||
| Cut off voltage | 42V | ||
| Max.charging voltage | 54V | ||
| Memory effect | None | ||
| Maintenance | Maintenance free | ||
| Compatibility | Compatibte with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio. | ||
| Warranty period | 5-10 years | ||
| Remarks | Youth Power 48V wall battery BMS must be wired in parallel only. Wiring in series will void the warranty | ||
15KW Battery Storage 51.2V 300Ah Lifepo4
● 51.2V 300AH 15KWH POWER SOLAR SYSTEM.
● BMS 200A protection.
● Mini size with light weight.
● Modular design, form variety energy levels.
● It would be one of the best Chinese solar storage ac DC power suppliers for the homes solar off grid power source.
● EV Batteries applied for storage battery with over 6000 cycles.
Product Feature
01. Long cycle life - product life expectancy of 15-20 years
02. Modular system allows storage capactiy to be easily expandable as power needs increase.
03. Proprietary architecturer and integrated battery management system ( BMS ) - no additional programming, firmware, or wiring.
04. Operates at unparalleled 98% efficiency for more than 5000 cycles.
05. Can be rack mounted or wall mounted in a dead space area of your home / business.
06. Offer up to 100% depeth of discharge.
07. Non-toxic and non-hazardous recylcable materials - recycle at end of life.

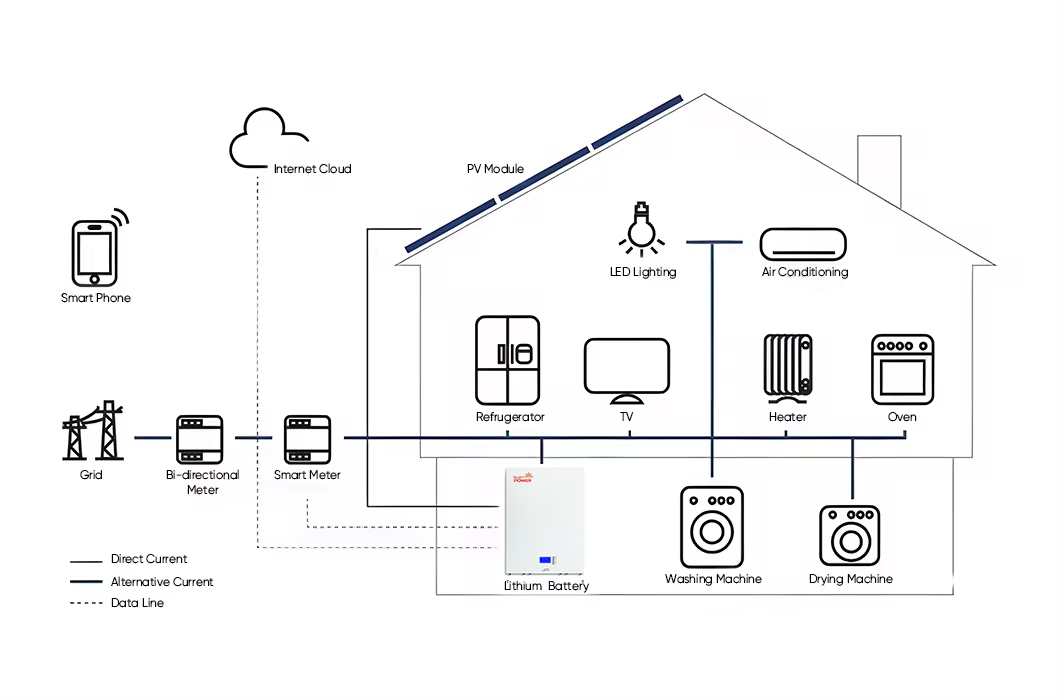

Product Application
Product Certification
LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

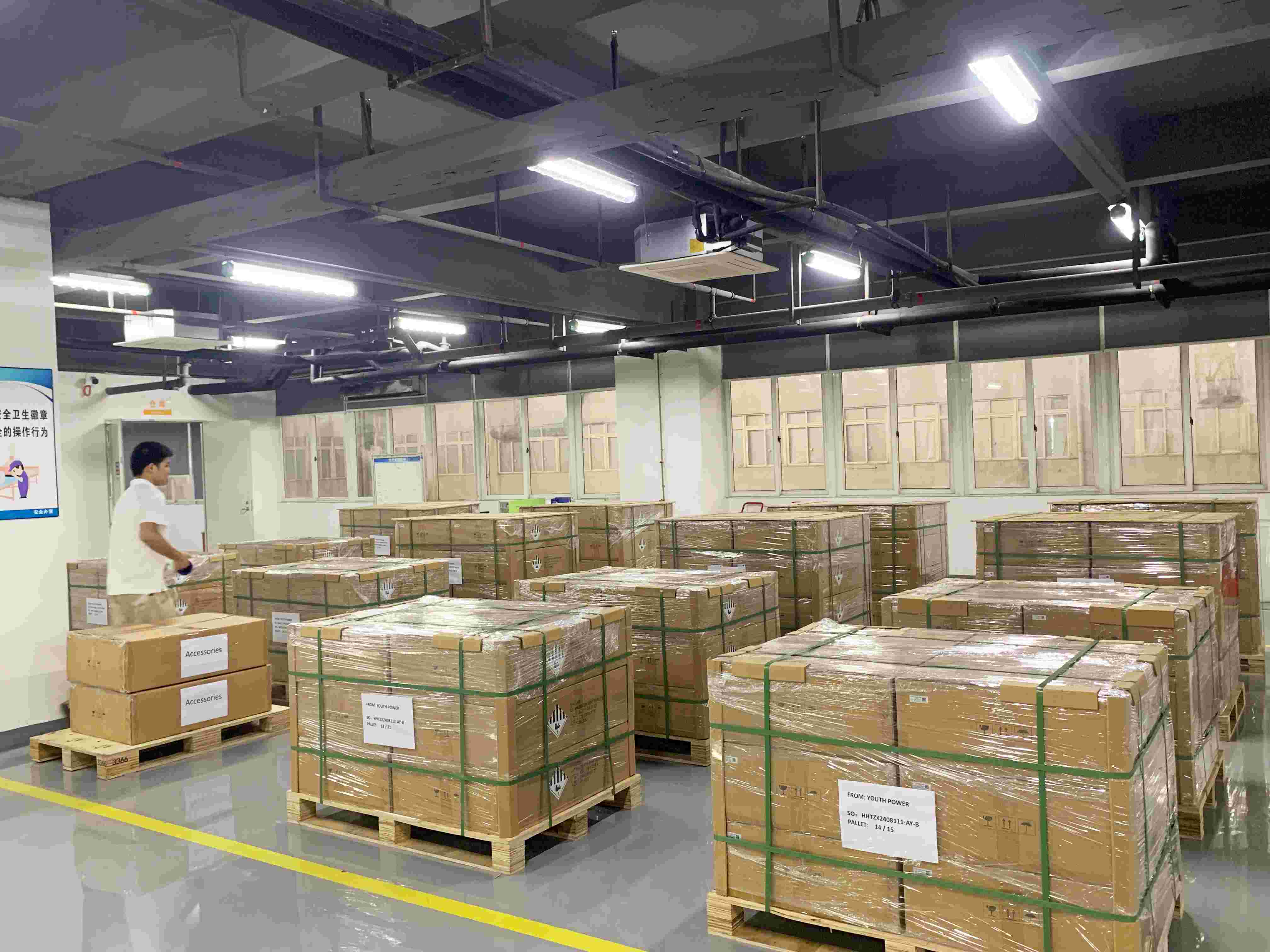

Product Packing
24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.
Our other solar battery series：High voltage batteries All In One ESS.
• 5.1 PC / safety UN Box
• 12 Piece / Pallet
• 20' container : Total about 140 units
• 40' container : Total about 250 units
