25.6V Solar Batteries LiFePO4 100-300AH
Product Specifications
Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?
In remote locations, such as off-grid cabins or campsites, a 24v solar battery can provide reliable backup power for lighting, refrigeration, and other essential equipment. In addition, a 24v solar battery can be used as a primary power source for stand-alone solar-powered systems, such as outdoor lighting, fountains, and more.
Another important application for a 24v solar battery is in emergency preparedness and disaster response. In the event of a power outage or natural disaster, a 24v solar battery can provide critical backup power for emergency lighting, communication devices, and other essential equipment.
Model No. | YP-24100-2.56KWH | YP-24200-5.12KWH | YP-24300-7.68KWH |
Voltage | 25.6V | 25.6V | 25.6V |
Combination | 8S2P | 8S4P | 8S6P |
Capacity | 100AH | 200AH | 300AH |
Energy | 2.56KWH | 5.12KwH | 7.68KwH |
Weight | 30Kg | 62Kg | 90Kg |
Chemistry | Lithium Ferro Phosphate ( Lifepo4) Safest Lithium Ion, No fire risk | ||
BMS | Built - in Battery Management System | ||
Connectors | Waterproof connector | ||

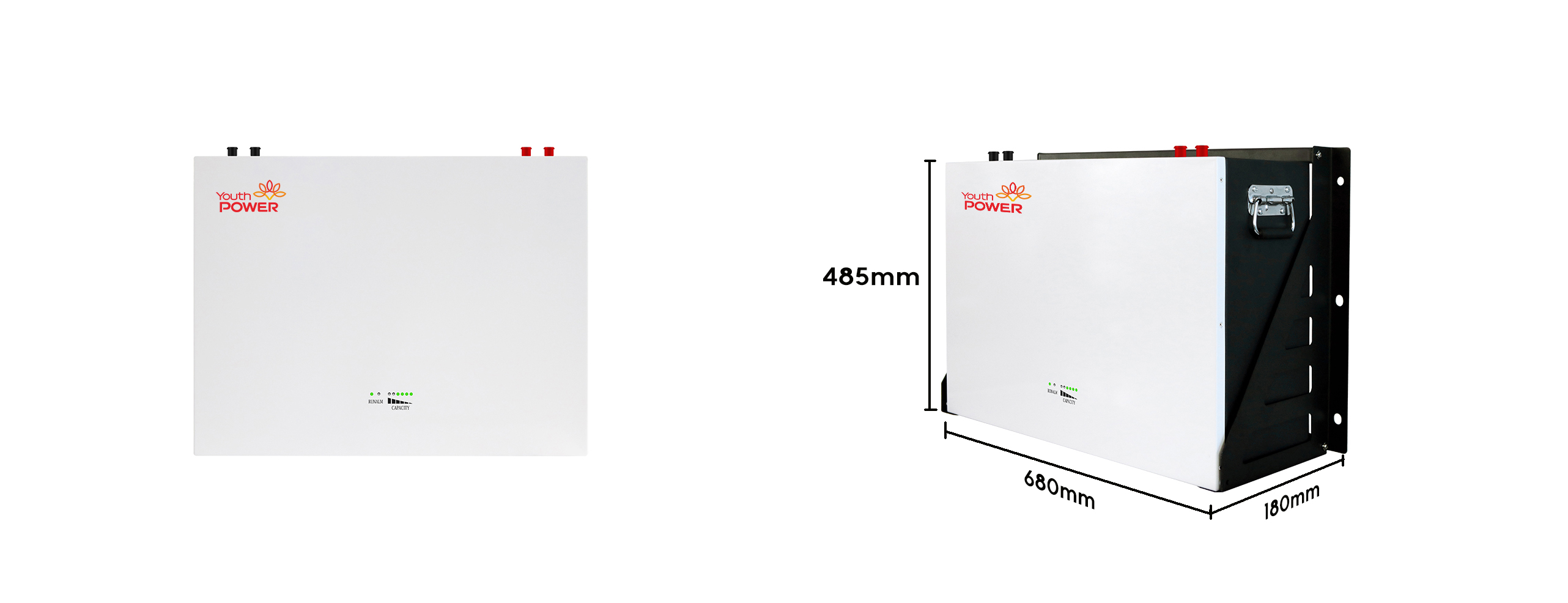

Dimension | 680*485*180mm | ||
Cycles (80% DOD) | 6000 cycles | ||
Depth of discharge | Upto 100% | ||
Lifetime | 10 Years | ||
Standard charge | Constant current: 20A | ||
Standard discharge | Constant current: 20A | ||
Maximum continuous charge | 100A/200A | ||
Maximum continuous discharge | 100A/200A | ||
Operation temperature | Charge: 0-45℃, Discharge: -20-55℃, | ||
Storage Temperature | Keep at -20 to 65℃, | ||
Protection standard | Ip21 | ||
Operation voltage | 20-29.2 VDC | ||
Max.charging voltage | 29.2 VDC | ||
Memory effect | None | ||
Maintenance | Maintenance free | ||
Compatibility | Compatible with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio. |
||
Warranty Period | warranty 5-10 years | ||
Remarks | Youth Power 24V wall battery BMS must be wired in parallel only. Wiring in series will void the warranty. Allow max. 4 units in parallel to expand more capacity. |
Product Feature
YouthPOWER 24v 100-300AH deep-cycle Lithium Ferro Phosphate (LFP) batteries are optimized with proprietary cell architecture, power electronics, BMS and assembly methods. They are a drop-in replacement for lead acid batteries, and much safer, it is regarded as the best solar battery bank with affordable cost.
Product Certification

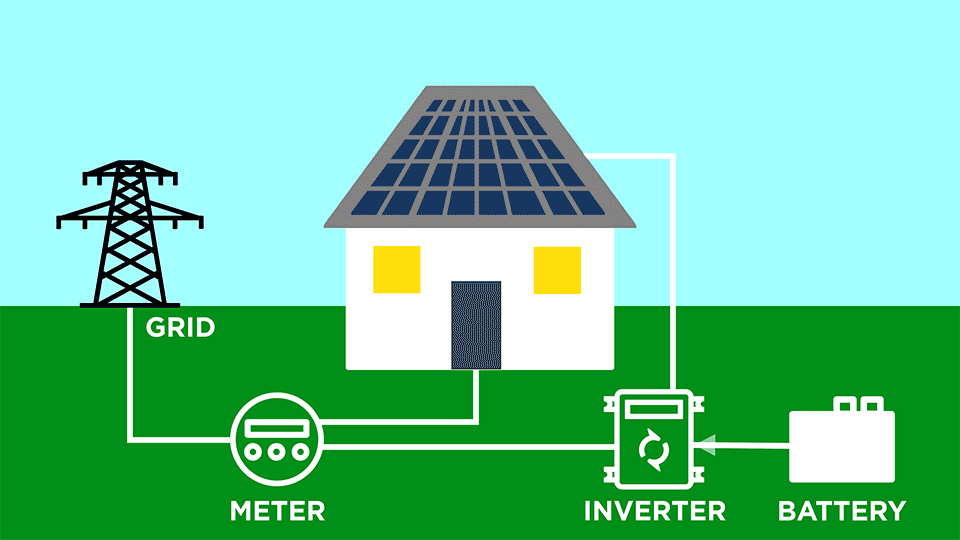

LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.
Product Packing
24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.
• 5.1 PC / safety UN Box
• 12 Piece / Pallet
• 20' container : Total about 140 units
• 40' container : Total about 250 units
