High Voltage 409V 280AH 114KWh Battery Storage ESS
Product Specifications
|
Single Battery Module |
14.336kWh-51.2V 280Ah Lifepo4 rack battery |
|
One Single Commercial Battery System |
114.688kWh- 409.6V 280Ah (8 units in series) |
| Product model | YP-HV 409050 | YP-HV 409080 | YP-HV409105 | YP-HV 409160 | YP-HV 409230 | YP-HV 409280 |
| System demo |  |
 |
 |
 |
 |
 |
| Battery module | ||||||
| Module modle | 51.2V50Ah | 51.2V80Ah | 51.2V105Ah | 51.2V160Ah | 51.2V230Ah | 51.2V280Ah |
| Serial/Parallel | 16S1P | 16S1P | 16S1P | 16S2P | 16S1P | 16S1P |
| Module dimension | 482.6*416.2*132.5MM | 482.6*416.2*177MM | 482.6*416.2*177MM | 482.6*554*221.5MM | 482.6*614*265.9MM | 482.6*754*265.9MM |
| Module weight | 30KG | 41.5KG | 46.5KG | 72KG | 90KG | 114K6 |
| Number of modules | 8PCS | 8PCS | 8PCS | 8PCS | 8PCS | 8PCS |
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| System parameters | ||||||
| Rated voltage | 409.6V | |||||
| Working voltage range | 294.4-467.2V | |||||
| Charge voltage | 435.2-441.6V | |||||
| Floating charge voltage | 428.8-435.2V | |||||
| Rated capacity | 50Ah | 80Ah | 105Ah | 160Ah | 230Ah | 280Ah |
| Energy | 20.48KWh | 32.76KWh | 43KWh | 65.53KWh | 94.2KWh | 114.68KWh |
| Rated charge current | 25A | 40A | 50A | 80A | 115A | 140A |
| Peak charge current | 50A | 80A | 105A | 160A | 230A | 280A |
| Rated discharge current | 50A | 80A | 105A | 160A | 230A | 280A |
| Peak discharge current | 100A | 160A | 210A | 320A | 460A | 460A |
| Charge temperature | 0-55℃ | |||||
| Discharge temperature | -10-55℃ | |||||
| Optimum temperature | 15-25℃ | |||||
| Cooling method | Natural cooling | |||||
| Relative humidity | 5%-95% | |||||
| Altitude | ≤2000M | |||||
| Cycle Life | ≥3500 times @80%DOD, 0.5C/0.5C, 25℃ | |||||
| Communication interfaces | CAN2.0/RS485/Dry | |||||
| Protection | Over temperature, over current, over voltage, insulation and other multiple protection | |||||
| Display | LCD | |||||
| Design lifetime | ≥10 years | |||||
| Certification | UN38.3/UL1973/IEC62619 | |||||
Product Details
Product Feature
Modular design, standardized production, strong commonality, easy installation, operation and maintenance.
Perfect BMS protection function and control system,over current, over voltage, insulation and other multiple protection design.
Using lithium iron phosphate cell, low internal resistance, high rate, high safety,long life. High consistency of internal resistance, voltage and capacity of single cell.
The cycle times can reach more than 3500 times, the service life is more than 10 years, the comprehensive operation cost is low.
Intelligent system, low loss, high conversion efficiency, strong stability, reliable operation.
Visual LCD display allows you to set operating parameters, view real-time data and operating status, and accurately diagnose operating faults.
Support fast charging and discharging.
Supports communication protocol such as CAN2.0 and RS485, which can be used in various scenarios.
Product Application
YouthPOWER commercial battery can be widely used in below applications:
● Micro-grid systems
● Grid regulation
● Industrial electricity usage
● Commercial buildings
● Commercial UPS battery backup
● Hotel backup power supply
Commercial solar battery can be installed in various locations, including factories, commercial buildings, large retail stores, and critical nodes on the grid. They are usually installed on the ground or walls near the building's interior or exterior, and are monitored and operated through a smart control system.
YouthPOWER OEM & ODM Battery Solution
Customize your high voltage battery energy storage system (BESS)! We offer flexible OEM/ODM services—tailor battery capacity, design, and branding to fit your projects. Fast turnaround, expert support, and scalable solutions for commercial and industrial energy storage.
Product Certification
YouthPOWER residential & commercial lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received certifications from various international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.
Product Packing
The shipping packaging of the YouthPOWER High 114kWh 409V 280AH demonstrates a high level of professionalism and efficiency. It takes into consideration the weight and size of the batteries, utilizing durable materials and precise linings to ensure safe transportation and handling without damage.
Each battery module is carefully packaged and sealed to protect against external environmental factors, vibration, and impact damage. The professional packaging also includes detailed identification and documentation, clearly stating operating and safety instructions for customer safety. These measures result in reduced transportation losses, lower maintenance costs, improved customer satisfaction, and enhanced product reliability.
• 5.1 PC / safety UN Box
• 12 Piece / Pallet
• 20' container : Total about 140 units
• 40' container : Total about 250 units
Our other solar battery series：High voltage batteries All In One ESS.

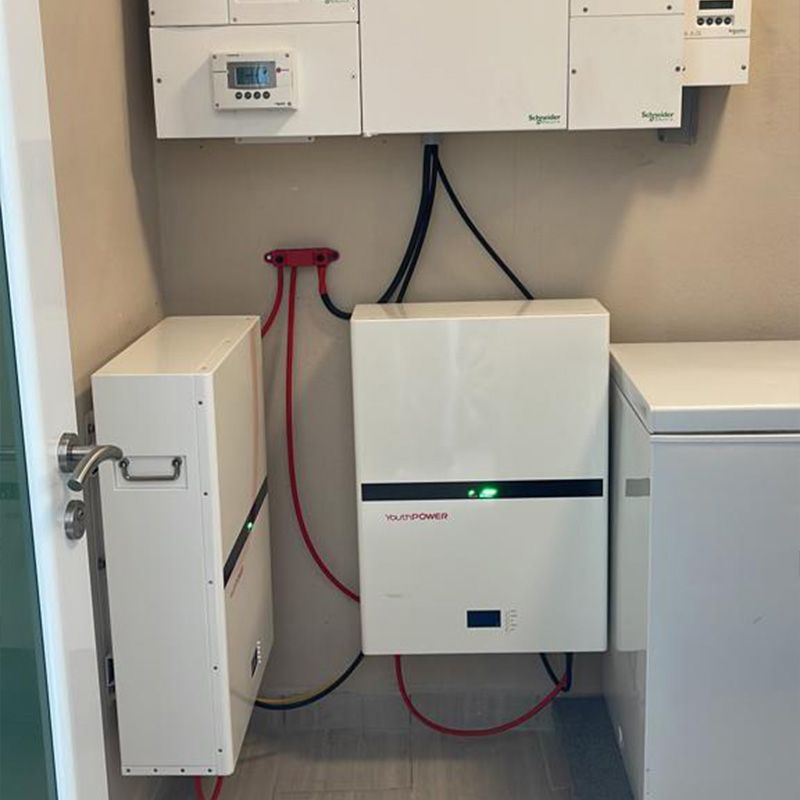

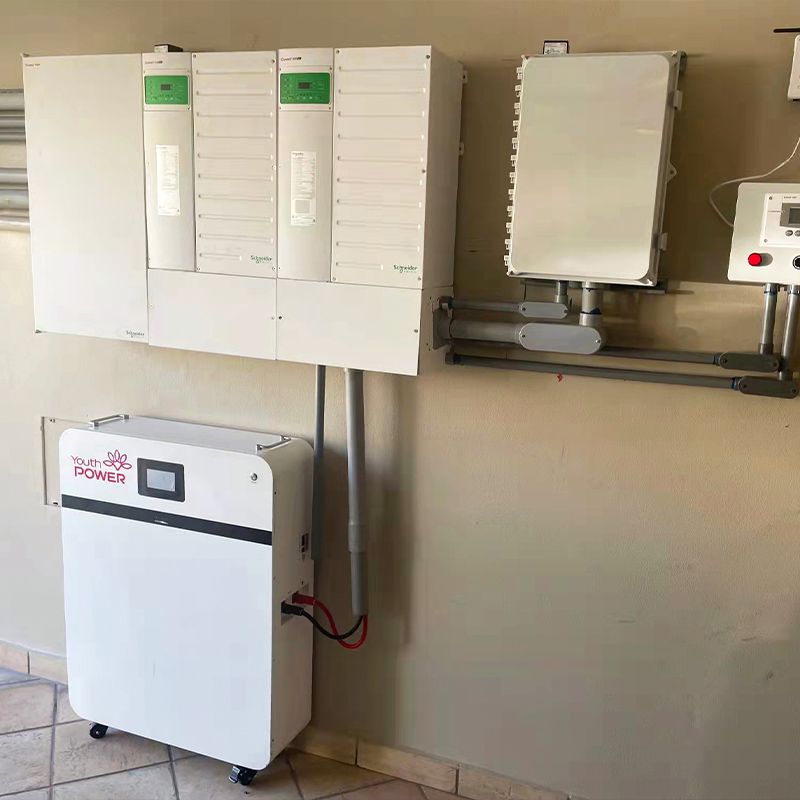

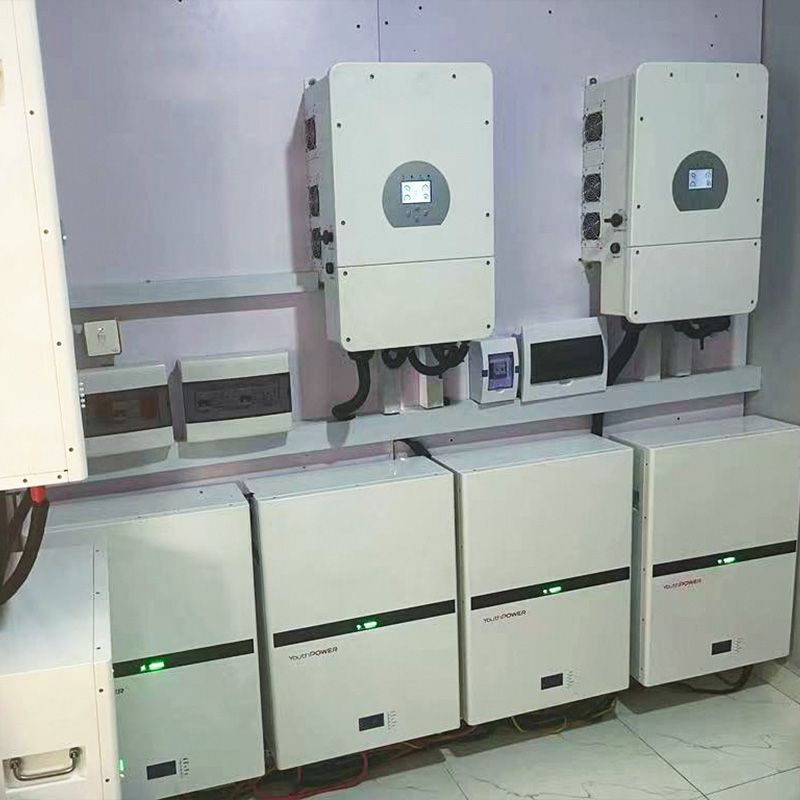

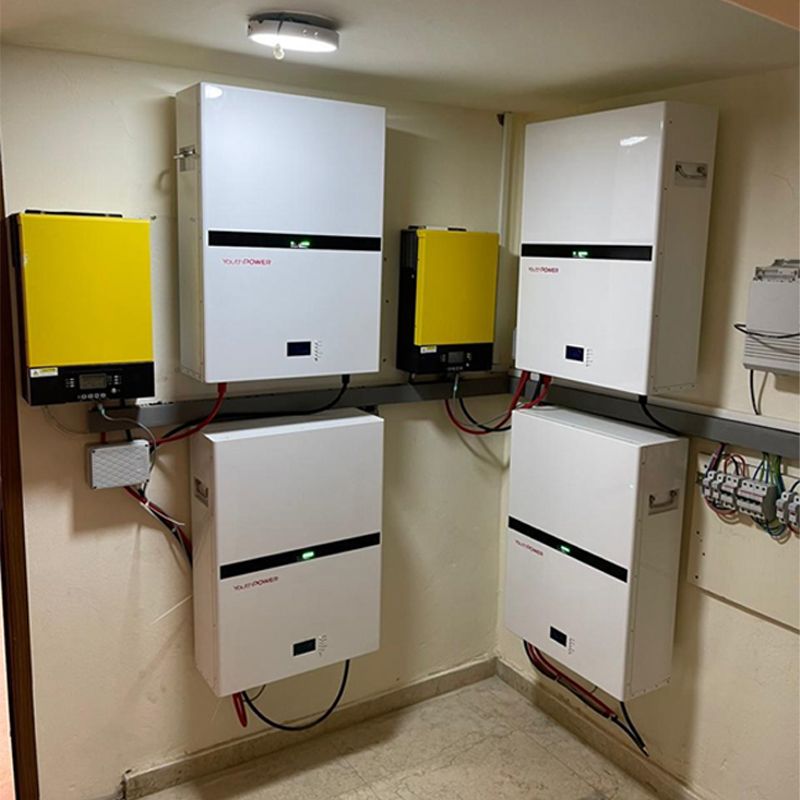

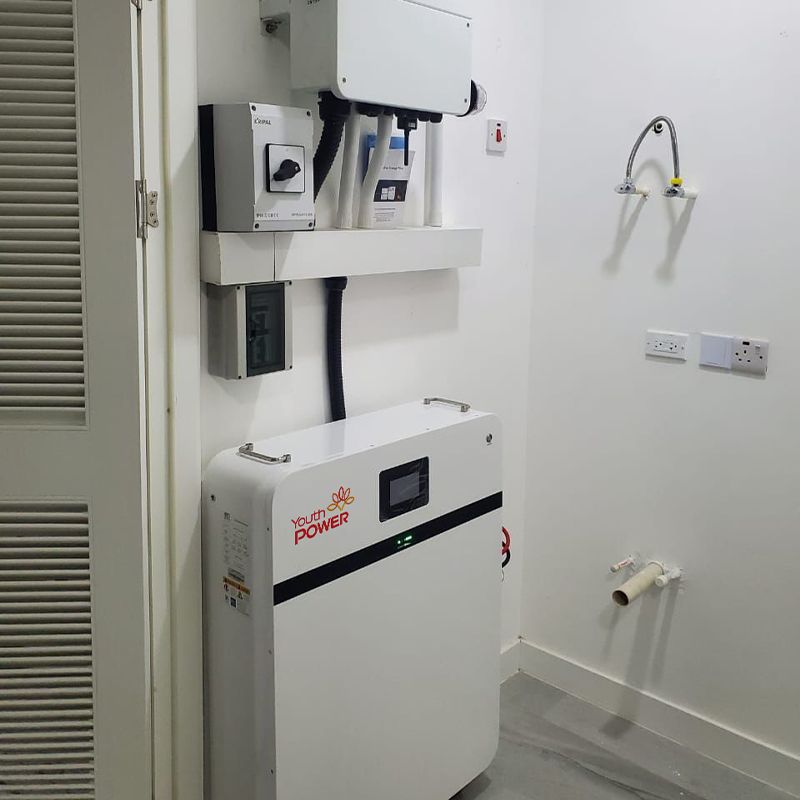

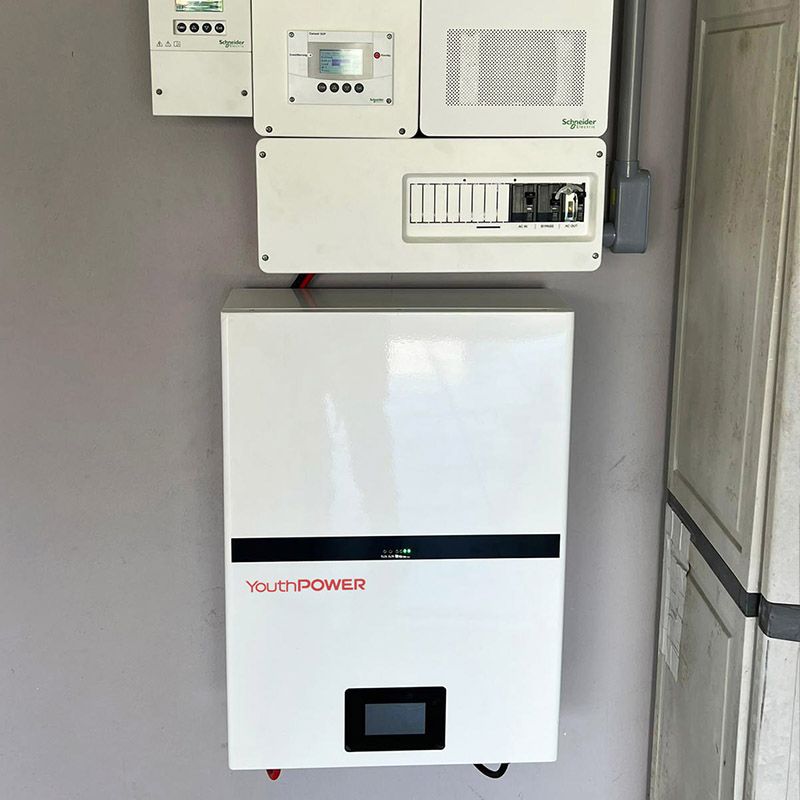

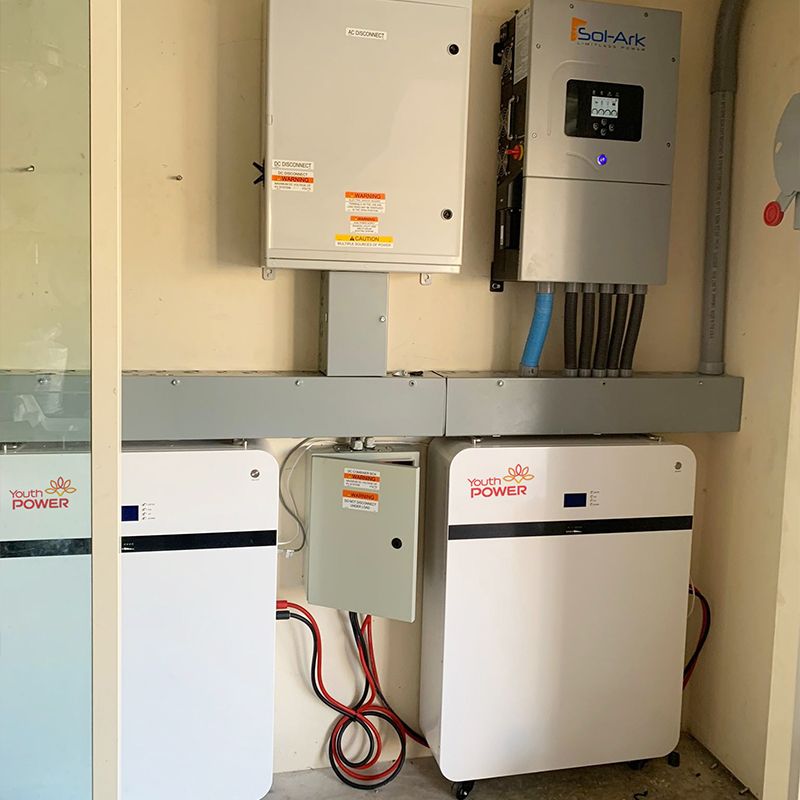

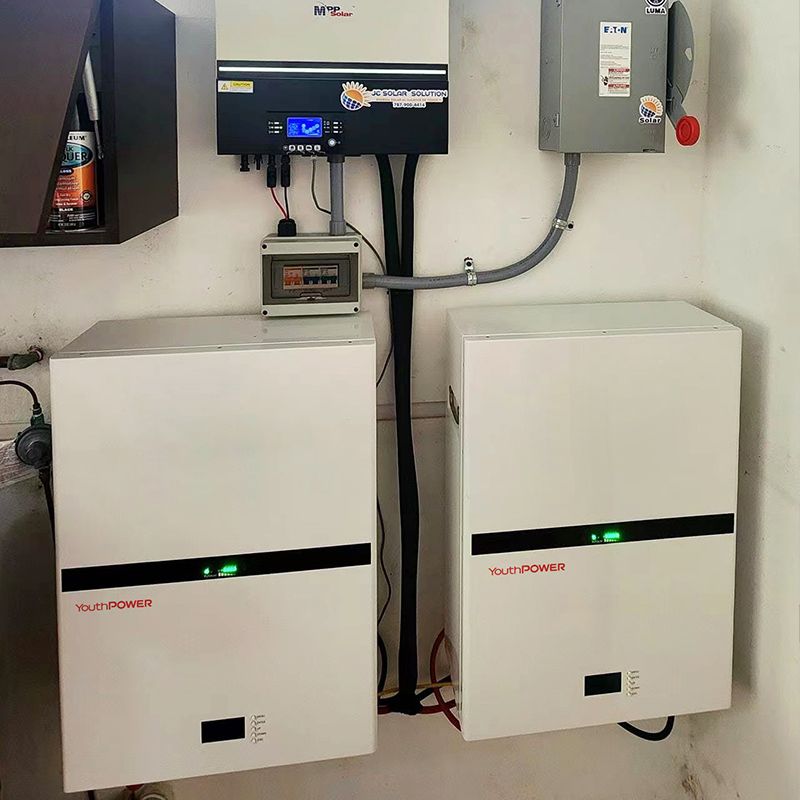

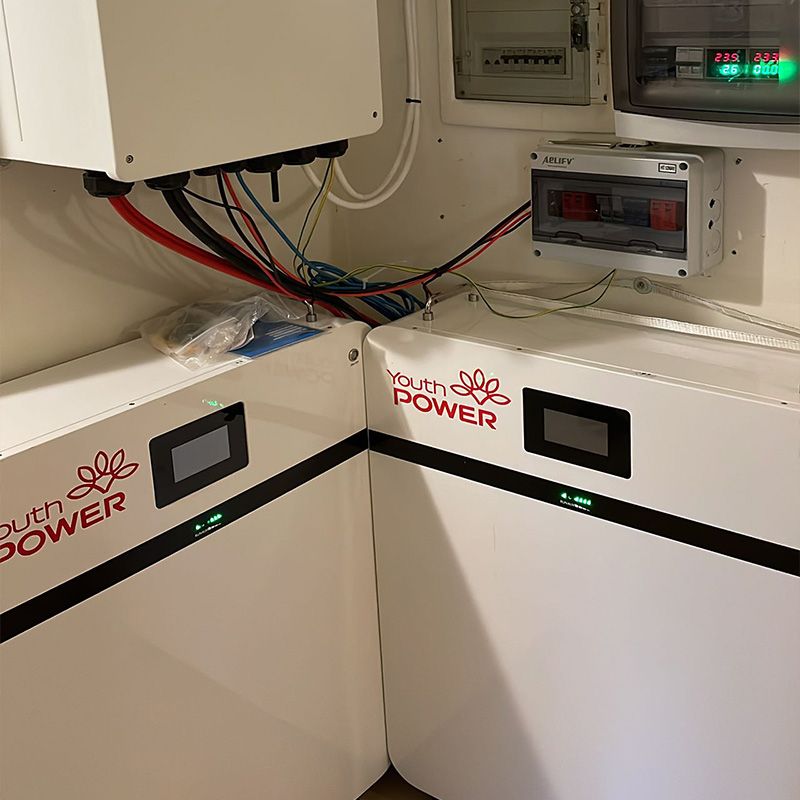

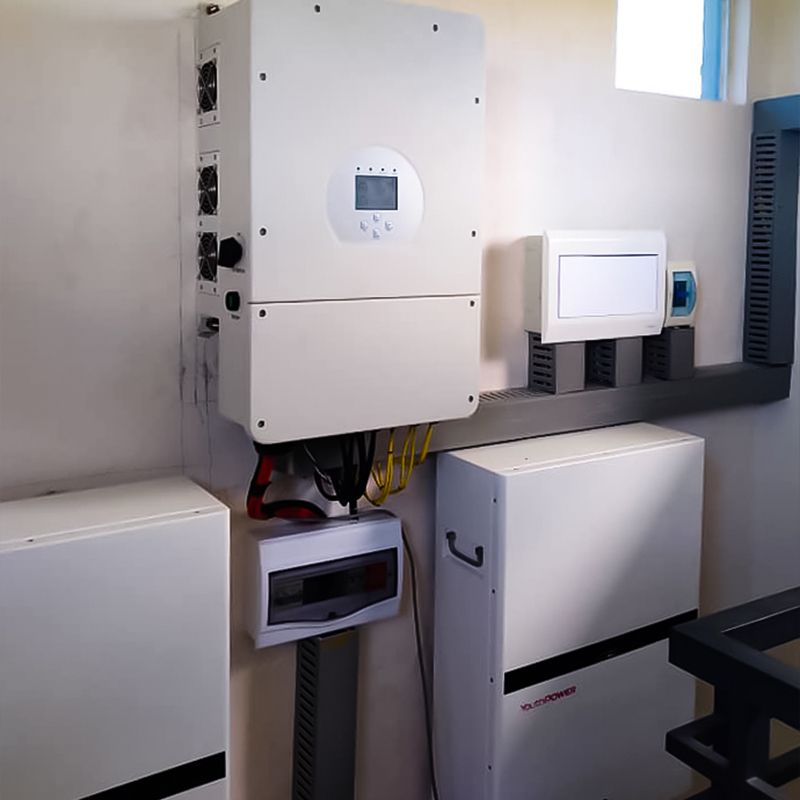

Partners' Projects
