YouthPOWER Waterproof Solar Box 10KWH
![10kwh-51.2V 200Ah lifepo4 battery](http://www.youth-power.net/uploads/防水banner31.jpg)
Product Video
Product Specifications
Item | General Parameter | Remark | |
Model Number | YP WT10KWH16S-001 | ||
Combination method | 16S2P | ||
Rated Capacity Typical | 200Ah | Standard discharge after Standard charge package |
|
Type / Model | 51.2V200Ah, 10.24 KWH | ||
Rated capacity | 10.24 KWH | ||
Nominal voltage | 51.2V DC | ||
Voltage at end of Discharge |
Single Cell 2.7V,Pack 43.2V | Discharge Cut-off Voltage | |
Recommended charging voltage by manufacturer |
57.6V or 3.60V/cell | Volta-meter (Serial*3.60V) ,Battery pack safe charging voltage |
|
Internal Impedance | ≤40mΩ | Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test 20±5℃ |
|
Standard charge | 80A | Ampere-meter ,Maximum allowable continuous charging current of the battery pack |
|
Max Charging Current(Icm) | 100A | ||
Upper limit charging voltage |
58.4V or 3.65V/cell | Volta-meter (Serial*3.65V) ,Battery pack safe charging voltage |
|
Standard discharge | 80A | Maximum continuous discharge current allowed by the battery pack |
|
Max continuous Discharging current |
100A | ||
Discharge Cut-off voltage(Udo) |
43.2V | Voltage of the battery when the discharge stopped |
|
Operation Temperature Range |
Charge :0~50℃ | ||
Discharge : -20~55℃ | |||
Storage Temperature Range | -20℃~35℃ | Recommend(25±3℃) ; ≤90%RH storage moisture range. ≤90%RH |
|
Battery system Size/Weight |
L798*W512*H148mm /102±3kg |
Including Handle Size | |
Packing size | L870*W595*H245 mm |
WiFi Function Displaying
![48V 200AH lifepo4 battery](http://www.youth-power.net/uploads/banner-1920x800px-第三张蓝牙1.jpg)
Download and install the "lithium battery WiFi" APP
Scan the QR code below to download and install the "lithium battery WiFi" Android APP. For the iOS APP, please go to the App Store (Apple App Store) and search for "JIZHI lithium battery" to install it. (Refer to USER MANUAL for details: https://www.youth-power.net/uploads/YP-WT10KWH16S-0011.pdf

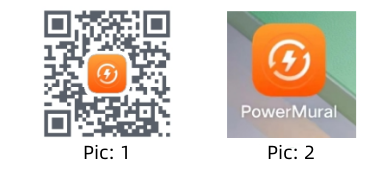

- Picture 1 : Android APP download connection QR code
- Picture 2 : APP icon after installation
IP65 Waterproof Testing Displaying
Product Feature
![48V lifepo4 battery](http://www.youth-power.net/uploads/详情.jpg)
![Product Feature (3)](http://www.youth-power.net/uploads/Product-Feature-3.jpg)
![Product Feature (2)](http://www.youth-power.net/uploads/Product-Feature-2.jpg)
![Product Feature (1)](http://www.youth-power.net/uploads/Product-Feature-1.jpg)

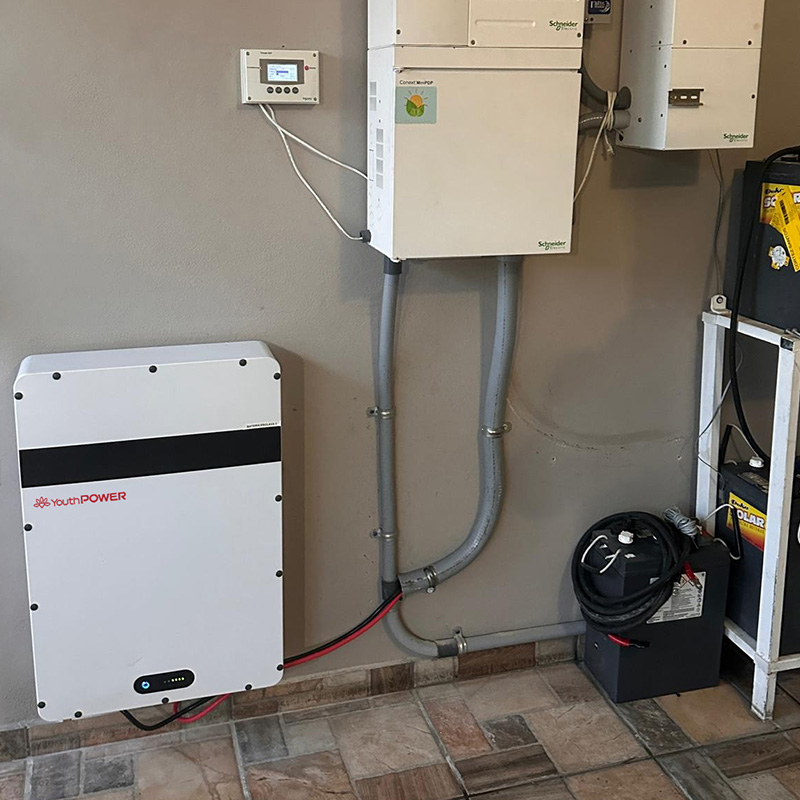

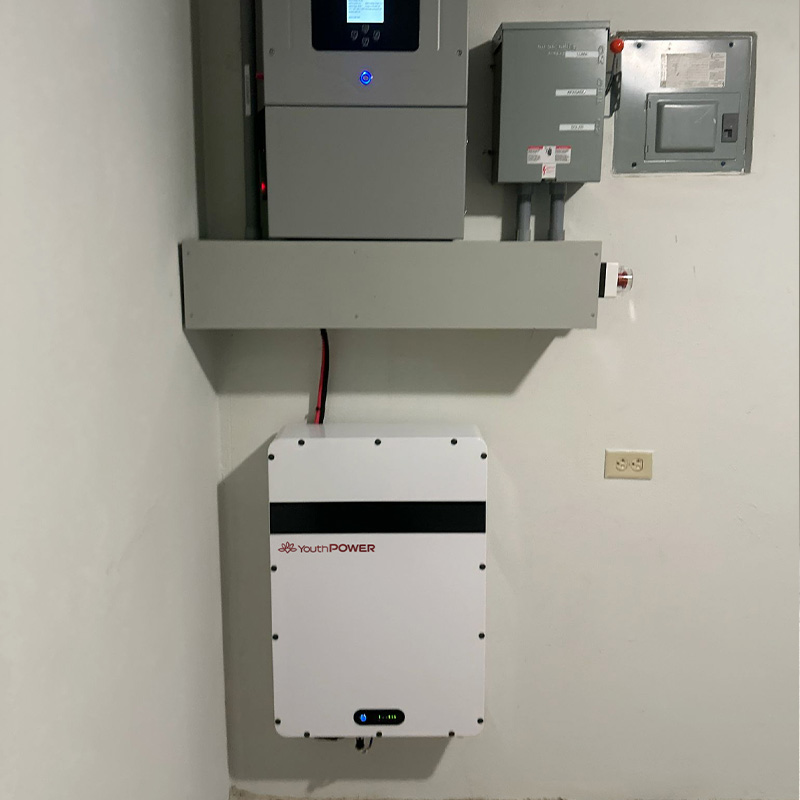

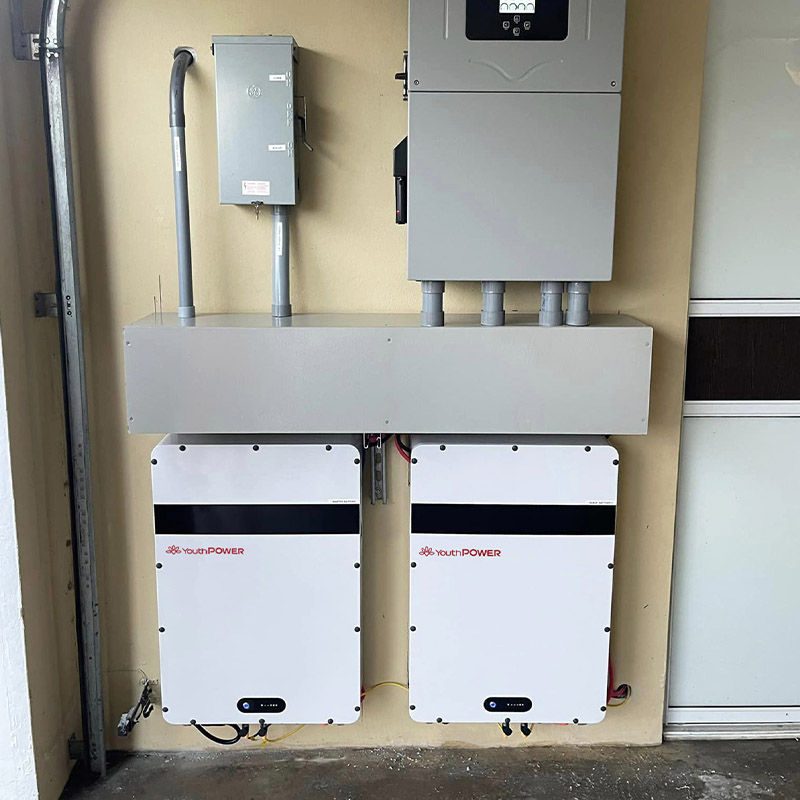

Product Application
![w54re](http://www.youth-power.net/uploads/w54re.jpg)
![YouthPOWER LiFePO4 Application](http://www.youth-power.net/uploads/YouthPOWER-LiFePO4-Application.png)
Product Certification
LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.
![24v](http://www.youth-power.net/uploads/24v.jpg)
Product Packing
![10KWH lifepo4 battery](http://www.youth-power.net/uploads/f4652fec-e976-4dc5-8f31-56b5cd17f2be11.jpg)
![10kwh battery](http://www.youth-power.net/uploads/258638fe-1246-45c5-b76f-7d1c030b02f411.jpg)
![200Ah lifepo4 battery](http://www.youth-power.net/uploads/3d83b7df74975de9395da3b2eb473621.jpg)
![TIMtupian2](http://www.youth-power.net/uploads/TIMtupian2.jpg)
Our other solar battery series:High voltage batteries All In One ESS.
- 5.1 PC / safety UN Box
- 12 Piece / Pallet
- 20' container : Total about 140 units
- 40' container : Total about 250 units
YouthPOWER 48V Powerwall Factory has demonstrated a high level of professionalism in the production and delivery of batteries. We boast advanced production facilities and a skilled technical team to ensure that every battery product undergoes rigorous quality control and testing. Our attention to detail spans from raw material procurement to final packaging, as we strictly adhere to standard operating procedures in order to guarantee product quality and customer satisfaction. Throughout the delivery process, we employ an efficient logistics management system for timely shipment, while implementing multi-layered packaging protection measures to ensure the safe arrival of our products into the hands of our customers.
The 10.12kwh-51.2V 200AH waterproof wall-mounted battery exhibits exceptional packaging for delivery, meticulously designed to uphold safety and integrity during transportation. The swift and satisfactory delivery speed ensures that the product reaches our customers quickly and securely.
