This product is a split energy storage system, including the inverter main unit and battery capacity pack (the battery capacity pack supports expansion).

The system includes 1 AC inverter board, 1 DC main control board, 1 battery protection board, 1 PV board, 1 3100Wh battery pack, 2 DC inputs, 2 QC3.0 outputs, 2 Type C outputs, 1 car charger output and 4 AC outputs.


Product Detail

Product Tags

Product Specifications

Model YPE2500W
YPE3KW
YPE2500W
YPE3KW*2
YPE2500W
YPE3KW*3
YPE2500W
YPE3KW*4
YPE2500W
YPE3KW*5
YPE2500W
YPE3KW*6
Capacity 3.1KWh 6.2KWh 9.3KWh 12.4KWh 15.5KWh 18.6KWh
Battery Type LMFP
Cycle Life 3000 times (80% left after 3000 times)
AC Output EU Standard 220V/15A
AC Charging
Time
2.5 hours 3.8 hours 5.6 hours 7.5 hours 9.4 hours 11.3 hours
DC Charging
Power
Maximum supports 1400W, supports changing by solar charging (with MPPT, weak light can be charged),
car charging, wind charging
DC Charging
Time
2.8 hours 4.7 hours 7 hours 9.3 hours 11.7 hours 14 hours
AC+DC Charging
Time
2 hours 3.4 hours 4.8 hours 6.2 hours 7.6 hours 8.6 hours
Car Charger
Output
12.6V10A ,Supports for inflatable pumps
AC Output 4*120V/20A,2400W/ peak value5000W
USB-A Output 5V/2.4A 5V/2.4A 5V/2.4A 5V/2.4A 5V/2.4A 5V/2.4A
QC3.0 2*QC3.0 3*QC3.0 4*QC3.0 5*QC3.0 6*QC3.0 7*QC3.0
USB-C Output 3*PD100W 4*PD100W 5*PD100W 6*PD100W 7*PD100W 8*PD100W
UPS Function With UPS function, switching time less than 20mS
LED Lighting 1*3W 2*3W 3*3W 4*3W 5*3W 6*3W
Weight
(Host/Capacity)
9kg /29kg 9kg /29kg *2 9kg /29kg*3 9kg /29kg*4 9kg /29kg *5 9kg /29kg *6
Dimensions
(L*W*Hmm)
448*285*463 448*285*687 448*285*938 448*285*1189 448*285*1440 448*285*1691
Certification RoHS,SDS,FCC,UL1642,ICES,NRCAN,UN38.3,CP65,CEC,DOE,IEC62133,TSCA,
IEC62368,UL2743,UL1973
operating
Temperature
-20~40℃
Cooling Natural air cooling
Operating Altitude ≤3000m
1200x400

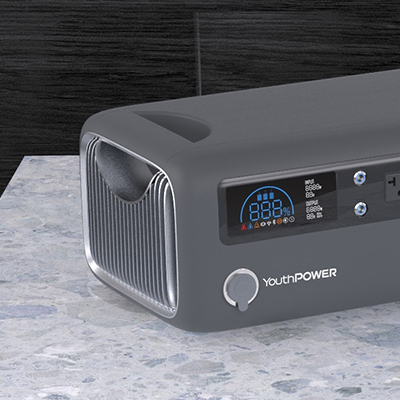

Product Details

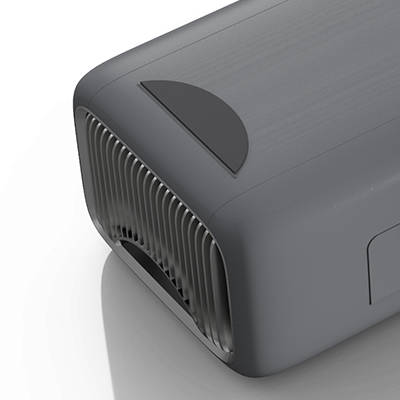

rfytg (1)
rfytg (2)

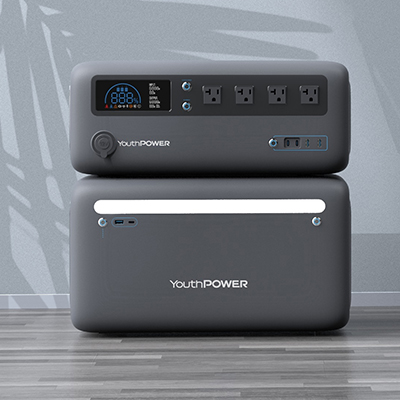

rfytg (3)

Product Certification

LFP is the safest, most environmentally chemistry available. They are modular, lightweight and scalable for installations. The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile. Enjoy easy installation and cost with YouthPOWER Home SOLAR WALL BATTERY.We are always ready to supply the first-class products and meet the various needs of the customers.

24v

Product Packing

packing

24v solar batteries are a great choice for any solar system that needs to store power. The LiFePO4 battery we carry is an excellent choice for solar systems up to 10kw as it has extremely low self-discharge and less voltage fluctuation than other batteries.

TIMtupian2

Our other solar battery series:High voltage batteries   All In One ESS.



• 5.1 PC / safety UN Box
• 12 Piece / Pallet



• 20' container : Total about 140 units
• 40' container : Total about 250 units


Lithium-Ion Rechargeable Battery
